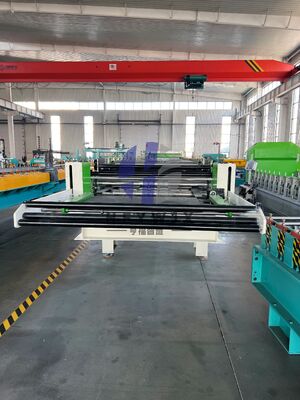

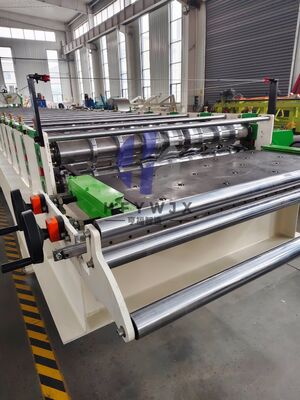

Industrial C8 C21 Double Layer Trapezoidal Roll Forming Machine PLC Control 350H Steel Frame

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Package Size:

1100.00cm * 130.00cm * 140.00cm

Package Gross Weight:

15000.000kg

HS Code:

8474801000

Transmission Mode:

1.2-Inch Hardened Chain

Certification:

CE, SGS

Customized:

Customized

Tile Type:

Colored Steel

Condition:

Usage:

Electronic Control System:

Production Capacity:

500pieces/Years

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

industrial trapezoidal roll forming machine

industrial double layer roll forming machine

c8 trapezoidal roll forming machine

Product Description

C8-C21 Double Layer Trapezoidal Roll Forming Machine

Dongguang Hengfu Roll Forming Machine Co., Ltd. introduces the C8-C21 Double Layer Trapezoidal Roll Forming Machine, a high-performance integrated solution designed to produce two distinct trapezoidal roofing profiles (C8 and C21) in one efficient, space-saving production line. With Hengfu's professional manufacturing experience, strict quality control, and advanced roll forming technology, this machine delivers stable performance, precise forming, and long service life, making it a reliable choice for metal construction and roofing sheet production.

Key Features

Robust 350H steel frame and Φ80mm solid main shafts for exceptional rigidity
High-precision forming rollers for smooth, scratch-free profiles
1.2-inch hardened chain transmission system for stable power delivery
Quick profile switching between C8 and C21 for enhanced flexibility
Intelligent PLC control system with touch screen interface
Automatic fixed-length cutting and real-time production monitoring
Supports galvanized steel, color-coated steel, and cold-rolled steel

Technical Specifications

Model NO	C8 C21 Double Layer Trapezoidal Roll Forming Machine
Condition	New
Feeding Width	1250±5mm
Machine Frame	350H steel frame
Forming Speed	0-40M/min
Type of Driven	1.2-inch hardened chain
Transmission Method	Electric
Number of Rolling Mill Sets	Type C8: ≥ 18 pairs; Type C21: ≥ 21 pairs
Spindle Diameter	Φ80mm (Solid shaft)
Customized	Customized

Product Gallery

Frequently Asked Questions

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

Can a single machine produce multiple types of profiles?

Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.

Does the machine require a foundation?

It simply requires a level concrete floor; no complex foundation is necessary.

Does the machine require disassembly for transport?

The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.
