Double Layer Roll Forming Machine with PLC Control System for Fast Change Dual Profile Trapezoidal Roofing Sheets

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Package Size:

1100.00cm * 130.00cm * 140.00cm

Package Gross Weight:

15000.000kg

Certification:

CE, SGS

Customized:

Customized

Transmission Method:

Electric

Transmission Mode:

1.2-Inch Hardened Chain

Tile Type:

Colored Steel

Condition:

Usage:

Electronic Control System:

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

dual profile trapezoidal roll forming machine

dual profile double layer roll forming machine

ce trapezoidal roll forming machine

Product Description

Professional C8 C21 Double Layer Roll Forming Machine

Dongguang Hengfu Roll Forming Machine Co., Ltd. proudly launches its C8-C21 Double Layer Trapezoidal Roll Forming Machine, a versatile and high-efficiency production line specially developed for modern metal roofing manufacturing. This innovative machine combines two profile-forming systems in one compact unit, allowing manufacturers to produce both C8 and C21 trapezoidal sheets without extra equipment.

With professional design, reliable performance and strict quality control, it has become a preferred choice for building material producers around the world.

Key Features

Heavy-duty steel frame construction for outstanding stability
High-precision roll forming system with hardened and polished rollers
Double-layer structure saves workshop space and reduces investment

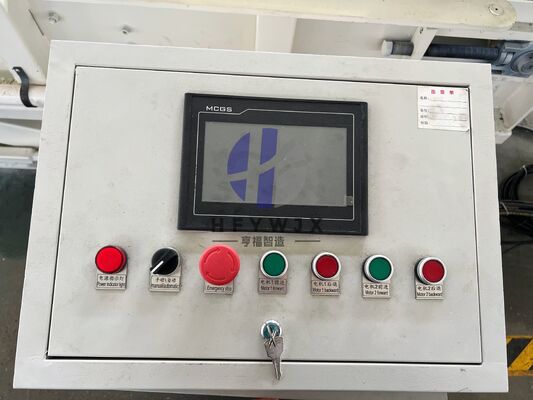

Intelligent PLC control system with hydraulic cutting device
Suitable for galvanized steel, color-coated steel and other metal coils
Low noise operation with easy maintenance requirements

Technical Specifications

Model NO	C8 C21 Double Layer Trapezoidal Roll Forming Machine
Condition	New
Feeding Width	1250±5mm
Machine Frame	350H steel frame
Forming Speed	0-40M/min
Type of Driven	1.2-inch hardened chain
Transmission Method	Electric
Number of Rolling Mill Sets	Type C8: ≥ 18 pairs; Type C21: ≥ 21 pairs
Spindle Diameter	Φ80mm (Solid shaft)
Customized	Customized

Product Images

Frequently Asked Questions

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

Will the machine scratch the surface coating of the color-coated steel sheets during production?

With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.

Can the machine produce stainless steel sheets? What are the requirements for the equipment?

Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.

Can a laminating machine be added?

Yes, it allows for an integrated production line combining lamination and forming.
