| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

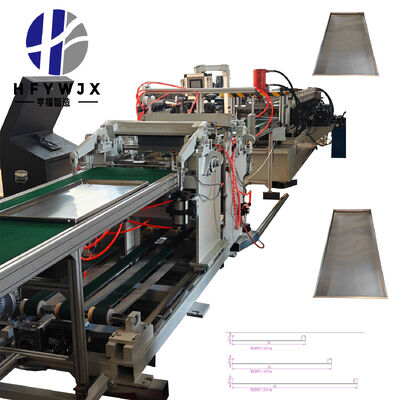

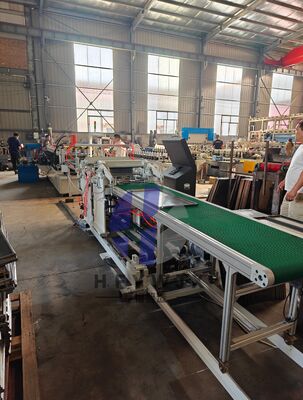

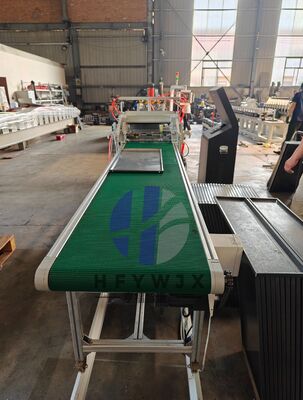

Dongguang Hengfu Roll Forming Machine Co., Ltd. delivers a fully automatic warehouse shelf panel forming machine, built for high efficiency, stable operation, and long service life. This professional metal forming equipment is specially designed for mass production of high-strength warehouse shelf panels, with mature structure, precise control, and excellent durability.
Widely used in storage equipment manufacturing, logistics rack production, and industrial shelf fabrication, this machine is highly praised by global customers for its reliable performance and robust construction.

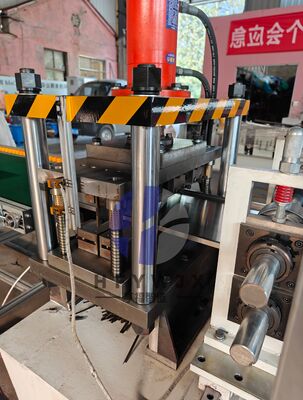

Heavy-duty welded square tube frame with integral 25mm thick wall panel structure provides outstanding rigidity and stability during high-speed operation. Equipped with Φ80 solid spindle and high-precision Cr12MOV molds with hardness HRC58-62°, offering excellent wear resistance and long service life.
Fully automatic PLC control system with touch screen operation enables easy parameter setting and stepless speed adjustment from 0 to 10m/min. The motor-reducer-gear transmission system delivers smooth and stable power, while integrated forming, shearing, and double-bending functions create a fully automatic production flow.
| Rolling Material | Q235 galvanized sheet |
|---|---|
| Spindle | Φ80 |
| Structural Form | Integral wall panel structure, thickness 25mm |
| Production Speed | 0-10m/min (PLC frequency conversion speed regulation) |
| Transmission Mode | Motor drives reducer and then drives gear transmission |
| Control System | Programmable PLC control system with frequency converter for speed regulation; Human-machine interface with touch screen display |
| Frame | Steel welded square tube frame |
| Machine Dimensions | 18000mm × 1500mm × 1500mm |
| Mold | Material: Cr12MOV, hardness HRC58-62° |
Backed by CE and SGS certifications and strict quality control, Dongguang Hengfu Roll Forming Machine Co., Ltd. ensures this shelf forming machine provides stable performance and high cost performance. The company offers a one-year warranty, lifelong after-sales service, free installation, commissioning, and operator training.
