| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

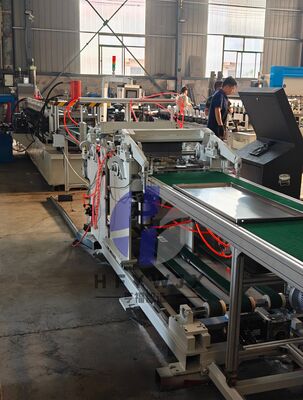

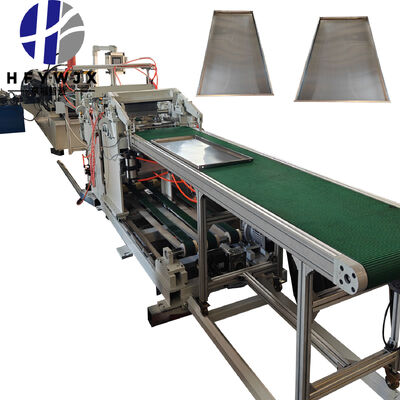

Dongguang Hengfu Roll Forming Machine Co., Ltd. presents a high-performance automatic warehouse shelf panel roll forming machine, engineered for stable, efficient, and high-precision production of metal shelf panels. This fully integrated production line combines feeding, de-cornering, roll forming, precise shearing and bending into one continuous workflow, delivering consistent profile quality, strong structural rigidity, and long service life.
This shelf forming machine is specially designed for processing Q235 galvanized sheet, ensuring excellent formability, surface finish, and structural strength for heavy-duty shelf panels. It supports flexible production of various shelf dimensions to meet diverse storage system requirements, and is widely applied in warehouse racks, supermarket shelves, industrial storage systems, and logistics distribution centers.
The machine features a heavy-duty construction for industrial-grade durability. It adopts an integral wall panel structure with 25mm thickness and a steel welded square tube frame, providing exceptional rigidity, low vibration, and stable operation during long-hour production.
| Rolling material | Q235 galvanized sheet |
| Spindle | Φ80 |
| Structural form | Integral wall panel structure, thickness 25mm |
| Production discharging speed | 0-10m/min (PLC frequency conversion speed regulation) |
| Transmission mode | The motor drives the reducer and then drives the gear transmission |
| Control system | A) Adopt programmable PLC control system and frequency converter for speed regulation. B) Human-machine interface, touch screen display, easy and user-friendly operation |
| Frame | Use steel welded square tube frame |
| Molding machine dimensions | 18000mm*1500mm*1500mm |
| Mold | Material is Cr12MOV, hardness HRC58-62° |
