High Accuracy Length Control 300 Ridge Cap Machine with 18 Forming Stations and 1-Inch Chain Drive

The 300 Ridge Cap Roll Forming Machine is a professional and efficient equipment specially designed for producing metal ridge caps. It features a fully automated production process including decoiling, guiding, roll forming, fixed-length cutting, and finished product receiving. Widely used in color steel roof accessories production, this machine delivers stable, high-quality ridge cap products for various construction projects.

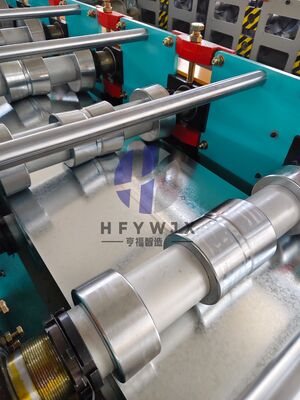

This machine utilizes a 350H steel welded wall plate structure with 14mm carbon steel wall plates, providing exceptional rigidity and stability. It features 18 forming stations and a Φ70mm solid main shaft. Both shafts and rollers are manufactured from 45# steel, with rollers processed through fine turning, chrome plating, and quenching to ensure long service life and superior forming performance.

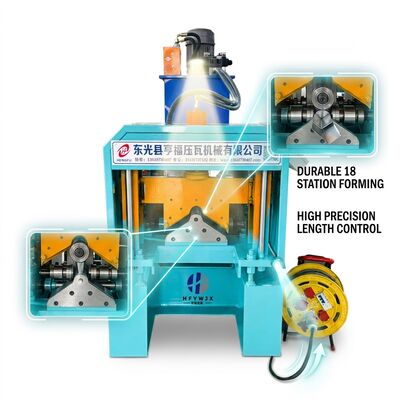

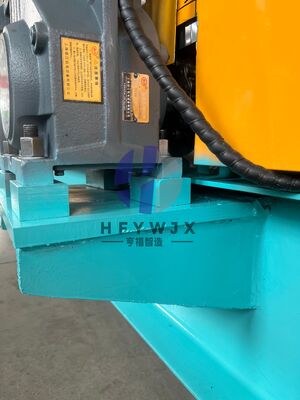

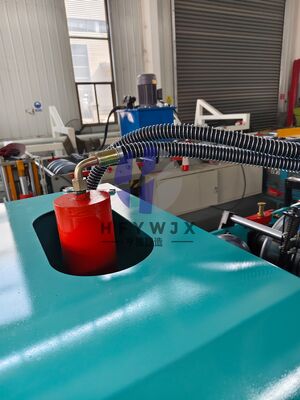

The machine employs a 1-inch chain drive system powered by a 5.5kW high-quality motor, delivering stable output speeds of 20-25m/min. The cutting system features double linear guides and a 4kW oil pump shearing mechanism with air cooling, equipped with high-grade Cr12Mov blades. This configuration ensures burr-free cutting, low failure rates, and includes alarm and remote control functions for safer, more convenient operation.

Operated via PLC and a separate touch screen control system with rotary counter for accurate length measurement, the machine maintains length errors within ±1mm. It supports 380V three-phase power supply and comes equipped with a 3T electric decoiler. Compact in design with stable performance, this machine is easy to operate and maintain, making it an ideal solution for roof tile manufacturing.
