Automatic 690mm Small Wave Corrugated Sheet Machine with PLC Touch Screen Control and 0-40m/min Adjustable Speed for Metal Roof Panels

Detail Information
Product Description
Detail Information
Raw Material:
PPGI Color Steel Coil
Feeding Width:
765mm
Effective Finished Width:
690mm
Processable Thickness:
0.08–0.16mm
Adjustable Forming Speed:
0–40m/min
Main Drive:
7.5kW Servo Motor
Cutting System:
3.8kW Servo Flying Cut
Control System:
PLC Touch Screen
Power Supply:
380V/50Hz Three-phase
Length Tolerance:
±1mm
Product Description
High Performance Small Wave Corrugated Sheet Machine
Automatic Mini Metal Roof Panel Former for Steel Construction
Product Overview

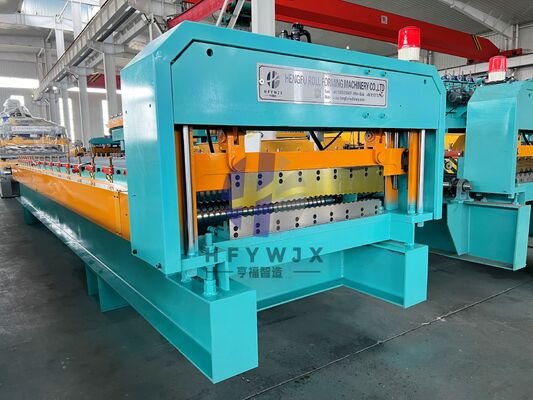

Dongguang Hengfu Roll Forming Machine Co., Ltd. designs and manufactures this 690 small arc corrugated tile machine, a fully automatic integrated production line widely favored by overseas roofing manufacturers. The complete production line includes decoiling, material guiding, roll forming, servo fixed-length cutting, and finished sheet output, achieving one-step automatic forming without repeated manual handling.
This machine processes common color steel coils to produce classic small wave roof panels, widely applied to residential buildings, farm sheds, and small workshop roof enclosures. It is compatible with mainstream thin steel raw materials in the construction market.
Key Features
  • Robust 350H steel welded wallboard frame with thickened carbon steel side plates for stable performance during continuous production
  • Precision 45# steel forming rollers with multiple machining, tempering, and electroplating treatments for consistent waveforms without scratching protective coatings
  • Servo main drive and chain transmission with adjustable running speed to match different order volumes
  • High-strength fasteners prevent frame deformation during extended operation, extending machine service life
  • Independent servo cutting system with split PLC touch screen control cabinet for uniform dimensional standards
  • Alloy cutting blades provide smooth, burr-free cutting edges with lower maintenance requirements
  • Intuitive touch screen control panel with simple parameter setting logic
  • Complete safety configurations including foot emergency stop and operation alarm light
  • Humanized auxiliary structures reduce labor costs with hand-crank feeding rack and receiving platform
Technical Specifications
Model YX5.5-30-690
Manufacturer Dongguang Hengfu Roll Forming Machine Co., Ltd.
Raw Material PPGI color steel coil
Feeding Width 765mm
Effective Finished Width 690mm
Processable Thickness 0.08-0.16mm
Adjustable Forming Speed 0-40m/min
Main Drive 7.5kW servo motor
Cutting System 3.8kW servo flying cut
Control System PLC touch screen
Power Supply 380V/50Hz three-phase
Length Tolerance ±1mm
Product Gallery

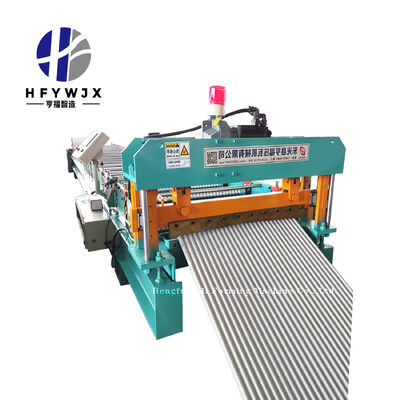

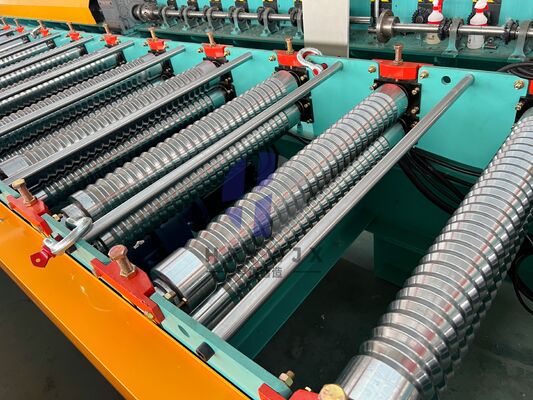

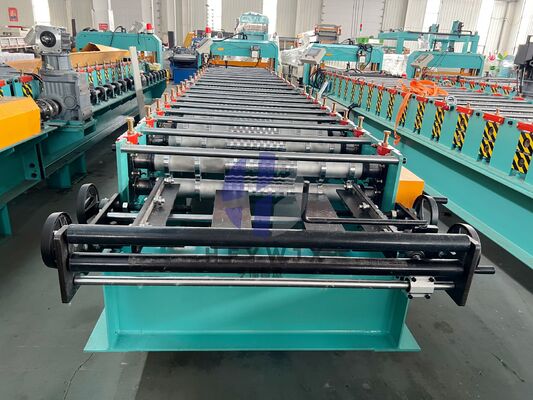

Small wave corrugated sheet machine production line Close-up view of roll forming mechanism Finished small wave roof panels output Machine control panel and operating interface
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
Quality Assurance & Support
Every machine from Dongguang Hengfu undergoes full offline trial running before shipment to inspect all functional parts, ensuring customers can launch formal production smoothly after equipment installation.
As a professional roll forming machinery manufacturer with abundant export experience, we provide reliable overall support for this corrugated tile machine. The compact overall size supports convenient container loading for sea transportation to global markets. Clients can choose on-site factory inspection or remote video test run before delivery.
Whether you are a newcomer stepping into the metal roofing sheet industry or an existing factory expanding production capacity, this stable, low-failure forming line is your ideal production equipment partner.
