Automatic Corrugated Roof Sheet Machine with 40m/min Max Speed, PLC Touch Screen Control, and ±1mm Precision for Metal Roofing Panels

Detail Information
Product Description
Detail Information
Machine Weight:
3.7 Tons
Power Supply:
380V/50Hz Three-phase
Control System:
PLC Touch Screen
Cutting System:
Servo Flying Cut
Main Motor:
7.5kW Servo Motor
Length Precision:
±1mm
Max Forming Speed:
40m/min
Processing Thickness:
0.08–0.16mm
Feeding Width:
765mm
Effective Finished Width:
690mm
Product Description
Advanced Small Wave Corrugated Roof Sheet Machine Automatic Metal Roofing Panel Production Line
Dongguang Hengfu Roll Forming Machine Co., Ltd. independently develops and manufactures this 690 small arc corrugated tile machine, a fully automatic production line ideal for metal roof panel processing. It supports raw coil feeding, continuous roll forming and servo fixed-length cutting in one integrated workflow.
Capable of running up to 40 meters per minute, it processes standard thin color steel coils and outputs neatly shaped small wave roof sheets widely used for houses, farm buildings and small factories.
The machine features heavy-duty welded frame construction with thickened wall plates to sustain long-hour continuous production. All forming rollers are precisely machined and surface hardened, which guarantees uniform arc shapes without scratching the coating of steel plates.
Matched with servo drive and chain transmission, the operating speed can be adjusted flexibly based on your production demands. Compared with ordinary low-cost equipment, its reinforced structural parts greatly reduce deformation and extend overall service life.
Equipped with independent servo cutting and PLC touch screen control system, this forming line keeps sheet length error within ±1mm for unified finished products. High-quality alloy cutting blades produce burr-free edges and cut down daily maintenance workload.
The control panel has intuitive operation logic, together with complete safety fittings such as foot emergency stop and running warning light, lowering the learning cost for new operators.
Humanized auxiliary accessories effectively save labor on site. The hand-crank feeding rack avoids material shifting during processing, and the matching receiving platform neatly collects finished tiles to reduce manual sorting work.
All machines from Dongguang Hengfu will complete full test running before delivery to inspect every functional part, ensuring stable operation once installed.
As an experienced roll forming machinery exporter, Dongguang Hengfu provides reliable technical support for this corrugated tile machine. Its compact overall size makes container loading convenient for overseas shipment.
You can inspect the machine on-site in our factory or watch remote test videos before shipment. Whether you are a new entrant to the roofing sheet industry or expanding your factory's output, this steady, low-fault forming equipment is a cost-effective choice for your production.
Technical Specifications
Model YX5.5-30-690
Manufacturer Dongguang Hengfu Roll Forming Machine Co., Ltd.
Raw Material PPGI/GI color steel coil
Feeding Width 765mm
Finished Effective Width 690mm
Processable Thickness 0.08-0.16mm
Max Forming Speed 40m/min
Length Accuracy ±1mm
Main Motor 7.5kW servo motor
Cutting Mode Servo flying cut
Control System PLC touch screen
Power Supply 380V/50Hz three-phase
Total Weight 3.7 Tons
Product Gallery

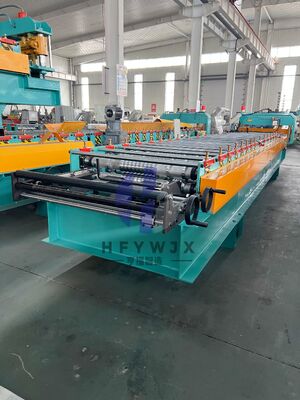

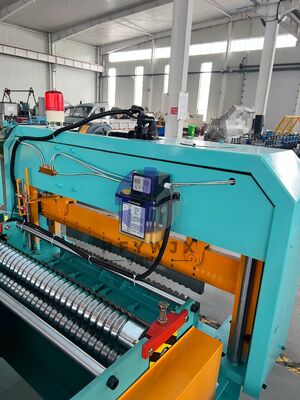

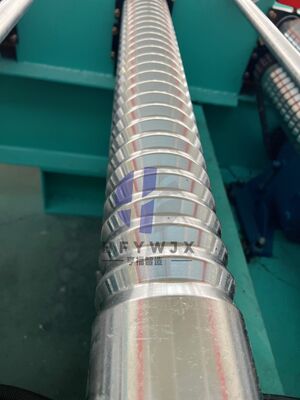

Small wave corrugated roof sheet machine production line overview Close-up view of roll forming mechanism Machine control panel and operating interface Finished small wave corrugated roof sheets Machine frame and structural details
Frequently Asked Questions
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
What types of profiles can you produce?
Trapezoidal roof panels, corrugated sheets, floor decking, C/Z-purlins, columns/beams, hoarding panels, standing seam roofing, etc. We can also customize products according to customer drawings.
What is the structure of the machine frame?
It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
Additional machine operation demonstration
