Automatic Small Corrugated Roof Sheet Roll Forming Machine with PLC Touch Screen Control and Servo Flying Cut for 0-40m/min Stepless Speed Regulation

Detail Information
Product Description
Detail Information
Raw Material:
PPGI/GI Color Steel Coil
Feeding Width:
765mm
Finished Effective Width:
690mm
Processing Thickness:
0.08–0.16mm
Main Motor:
7.5kW Servo Motor
Cutting System:
Servo Flying Cut
Control System:
PLC Touch Screen
Power Supply:
380V/50Hz Three-phase
Total Weight:
3.7 Tons
Product Description
High Speed Small Corrugated Roof Sheet Roll Forming Machine
Automatic Mini Metal Roofing Panel Equipment for Factory
Product Overview
Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this small wave roof tile machine is a cost-effective production line favored by metal sheet processors worldwide. It operates fully automatically from raw coil feeding to finished tile cutting, producing uniform small arc roof panels that are ideal for residential buildings, agricultural sheds, and small factory roofs.
Key Features
  • Reinforced welded steel frames and high-hardness forming rollers for extended service life
  • Finely polished and surface-treated rollers prevent scratching of steel plate paint
  • Servo driving system with adjustable running speed for flexible production capacity
  • Solid overall structure resists deformation during long-term operation
  • Servo cutting device delivers tidy, burr-free tile edges with consistent length
  • PLC touch screen control panel with straightforward operation logic
  • Complete safety features including emergency stop and running alarm light
  • User-friendly auxiliary parts reduce manual work on production site
Technical Specifications
Product Name 690 Small Circular Corrugated Roof Sheet Roll Forming Machine
Model YX5.5-30-690
Manufacturer Dongguang Hengfu Roll Forming Machine Co., Ltd.
Raw Material PPGI/GI Color Steel Coil
Feeding Coil Width 765mm
Finished Sheet Effective Width 690mm
Applicable Sheet Thickness 0.08mm - 0.16mm
Forming Speed 0 - 40m/min (Stepless Speed Regulation)
Length Control Accuracy ±1mm
Main Drive 7.5kW Servo Motor
Cutting System Independent Servo Flying Cut
Control System PLC Touch Screen Control
Power Supply 380V/50Hz 3-Phase Industrial Power
Overall Dimensions 7500×1500×1400mm
Total Machine Weight 3.7 Tons
Product Gallery

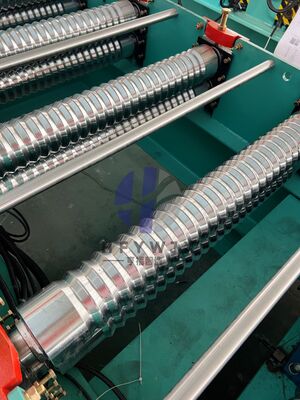

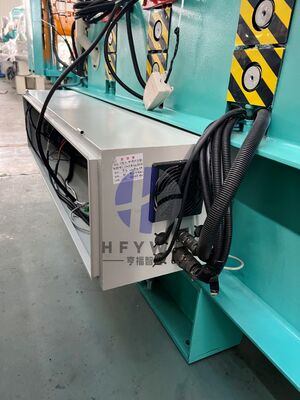

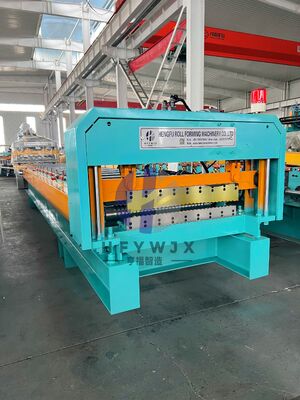

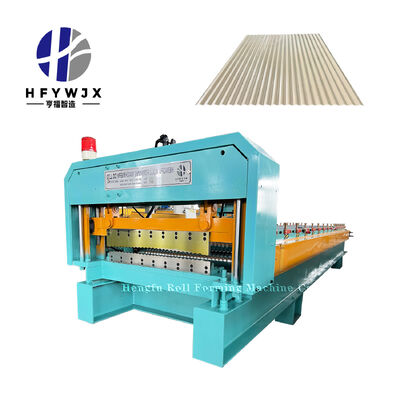

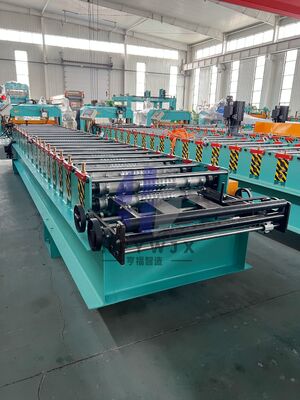

Small corrugated roof sheet roll forming machine production line Close-up view of forming rollers and machine components Finished small arc roof panels produced by the machine Machine control panel and operational interface
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
