690mm Small Corrugated Roof Sheet Roll Forming Machine with PLC Touch Screen Control and Servo Flying Cut
All Category

Roof Wall Panel Roll Forming Machine

Glazed Tile Roll Forming Machine

Ridge Cap Roll Forming Machine

Trapezoidal Roll Forming Machine

Corrugated Roof Sheet Machine

Wall Panel Roll Forming Machine

Double Layer Roll Forming Machine

Corrugated Sheet Roll Forming Machine

High Altitude Roll Forming Machine Platform

Standing Seam Roll Former

High Altitude Lifting Platform

Light Steel Frame Roll Forming Machine

Cold Roll Forming Machine

Roller Shutter Door Roll Forming Machine

Profile Roll Forming Machine

Pipe Roll Forming Machine

Flange Forming Machine

Flexible Connection Production Line

Purlin Roll Forming Machine

Fence Roll Forming Machine

Gutter Downspout Machine

Cutting Shearing Machine

Cable Tray Roll Forming Machine

Solar Bracket Roll Forming Machine

Shelf Panel Roll Forming Machine

Auxiliary Equipment
CONTACT US
Mrs. Mandy
sale@hengfumachinery.com
13833739407
wechat
wxid_279xvchbsl5d22
Chat Now

690mm Small Corrugated Roof Sheet Roll Forming Machine with PLC Touch Screen Control and Servo Flying Cut

Detail Information
Product Description
Detail Information
Total Weight:
3.7 Tons
Power Supply:
380V/50Hz Three-phase
Control System:
PLC Touch Screen
Cutting Mode:
Servo Flying Cut
Main Motor:
7.5kW Servo Motor
Processing Thickness:
0.08–0.16mm
Effective Finished Width:
690mm
Feeding Width:
765mm
Raw Material:
PPGI/GI Color Steel Coil
Product Description
Premium Quality Small Corrugated Roof Sheet Roll Forming Machine
Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this 690 small corrugated tile machine is a fully automatic production line designed for small wave metal roof panels. It covers complete production steps from coil feeding and continuous roll forming to servo cutting and finished sheet output.
Key Features & Applications
  • Widely applied for houses, farm sheds, and small factory roofing
  • Works perfectly with standard PPGI color steel coils
  • Heavy-duty welded steel frame supports long-time continuous operation
  • Precisely machined forming rollers create smooth, uniform shapes without scratching coatings
  • Servo driving system with chain transmission for adjustable production speed
  • High-strength structural parts prevent deformation and extend service life
  • Independent servo cutting unit with PLC touch screen control system
  • Neat, burr-free cutting with high dimensional accuracy
  • Intuitive touch control panel suitable for quick operator training
  • Comprehensive safety devices including emergency stop and alarm systems
  • Practical auxiliary structures reduce labor costs
  • Full trial operation before delivery ensures smooth production startup
Technical Specifications
Parameter Specification
Product Name 690 Small Circular Corrugated Roof Sheet Roll Forming Machine
Model YX5.5-30-690
Manufacturer Dongguang Hengfu Roll Forming Machine Co., Ltd.
Raw Material PPGI/GI Color Steel Coil
Feeding Coil Width 765mm
Finished Sheet Effective Width 690mm
Applicable Sheet Thickness 0.08mm - 0.16mm
Forming Speed 0 - 40m/min (Stepless Speed Regulation)
Length Control Accuracy ±1mm
Main Drive 7.5kW Servo Motor
Cutting System Independent Servo Flying Cut
Control System PLC Touch Screen Control
Power Supply 380V/50Hz 3-Phase Industrial Power
Overall Dimensions 7500×1500×1400mm
Total Machine Weight 3.7 Tons
Product Gallery

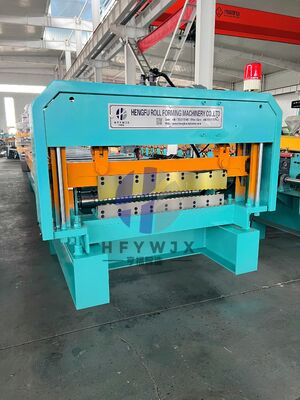

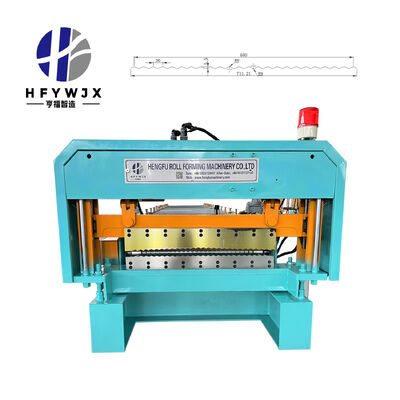

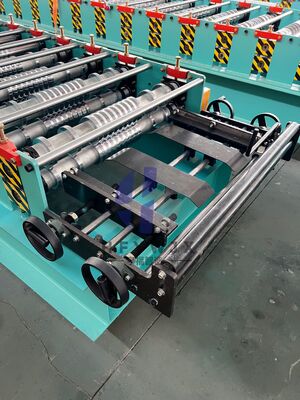

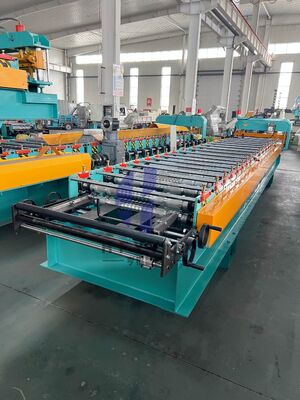

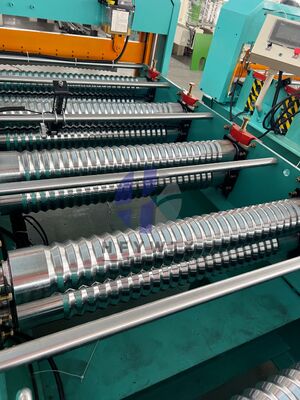

Small corrugated roof sheet roll forming machine production line Close-up view of forming rollers and machine components Control panel and operating interface of the forming machine Finished corrugated roof sheets produced by the machine
Frequently Asked Questions
Are customers able to visit the factory to test the machine and observe its performance firsthand?
We welcome customers—or a designated third party—to visit our factory to inspect the machine and conduct trial production runs using their own materials.
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
