Automatic Small Corrugated Roof Sheet Roll Forming Machine with PLC Touch Screen Control and 7.5kW Servo Motor for Precision Engineering

Detail Information
Product Description
Detail Information
Processing Material:
PPGI/GI Color Steel Coil
Raw Material Width:
765mm
Finished Effective Width:
690mm
Processable Thickness:
0.08–0.16mm
Main Motor:
7.5kW Servo Motor
Cutting System:
Independent Servo Flying Cut
Control System:
PLC Touch Screen
Power Supply:
380V/50Hz Three-phase
Machine Weight:
3.7 Tons
Product Description

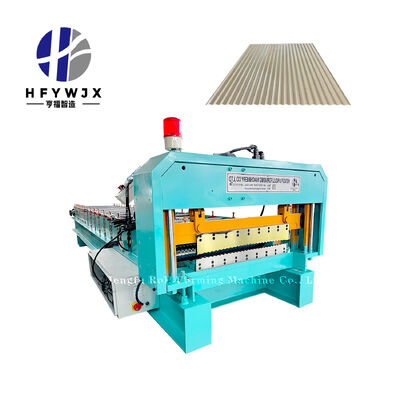

Automatic Small Corrugated Roof Sheet Roll Forming Machine
Produced by Dongguang Hengfu Roll Forming Machine Co., Ltd., this small corrugated tile forming line is a fully automatic integrated production solution designed for overseas roofing manufacturers. The complete production line automates the entire process from raw coil feeding and continuous roll forming to servo fixed-length cutting and finished sheet output.
This machine produces classic small arc roof sheets widely used for houses, barns, and small workshops. It is compatible with standard PPGI color steel coils and maintains stability for long-term batch production operations.
Key Features & Benefits
  • Robust welded steel frame structure ensures stable 24/7 operation
  • Precision-formed rollers with fine grinding, quenching, and surface plating treatment
  • Creates smooth, uniform arc patterns without scratching paint layers
  • Servo main drive with chain transmission for adjustable running speeds
  • High-strength core structural parts prevent frame deformation
  • Independent servo cutting system with intelligent PLC touch control
  • Alloy cutting blades deliver clean, burr-free cuts with low failure rates
  • Touch screen control system with accurate length setting capabilities
  • Multiple safety accessories including emergency stop and running alarm
  • Humanized auxiliary configurations reduce labor and maintenance costs
Technical Specifications
Parameter Specification
Product Name 690 Small Circular Corrugated Roof Sheet Roll Forming Machine
Model YX5.5-30-690
Manufacturer Dongguang Hengfu Roll Forming Machine Co., Ltd.
Raw Material PPGI/GI Color Steel Coil
Feeding Coil Width 765mm
Finished Sheet Effective Width 690mm
Applicable Sheet Thickness 0.08mm - 0.16mm
Forming Speed 0 - 40m/min (Stepless Speed Regulation)
Length Control Accuracy ±1mm
Main Drive 7.5kW Servo Motor
Cutting System Independent Servo Flying Cut
Control System PLC Touch Screen Control
Power Supply 380V/50Hz 3-Phase Industrial Power
Overall Dimensions 7500×1500×1400mm
Total Machine Weight 3.7 Tons
Product Gallery

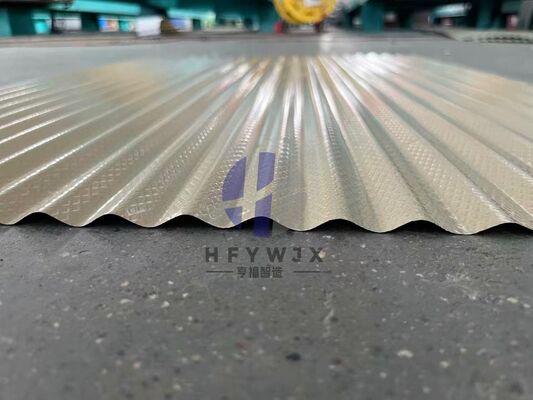

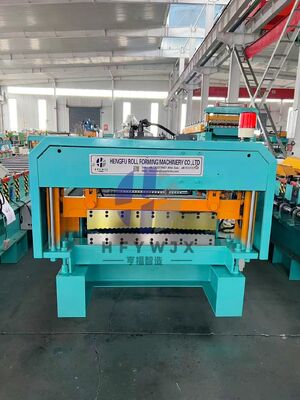

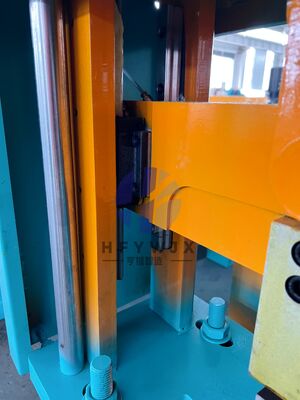

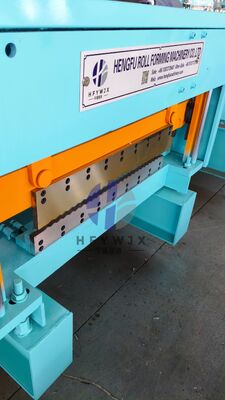

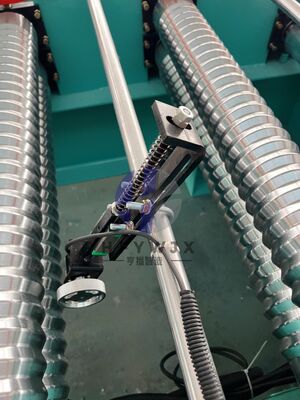

Automatic small corrugated roof sheet roll forming machine in operation Close-up view of forming rollers and cutting mechanism Finished small arc roof sheets produced by the machine
Frequently Asked Questions
Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?
Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
How should the machine be stored when not in use for an extended period?
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Can a single machine produce multiple types of profiles?
Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.
There are no professional maintenance personnel available locally; what should we do in the long run?
We provide lifetime remote video guidance; most issues do not require on-site repair.
Machine control panel and PLC touch screen interface
