Portable High Precision Corrugated Sheet Forming Machine with PLC Touch Screen Control for Roof Panels

Detail Information
Product Description
Detail Information
Total Weight:
3.7 Tons
Power Supply:
380V/50Hz Three-phase
Control System:
PLC Touch Screen
Cutting Mode:
Servo Flying Cut
Main Motor:
7.5kW Servo Motor
Length Accuracy:
±1mm
Max Forming Speed:
40m/min
Processable Thickness:
0.08–0.16mm
Product Description
Portable Small Corrugated Sheet Forming Machine
High Precision Mini Roof Panel Cold Roll Former for Fast Steel Output
Product Overview
Produced by Dongguang Hengfu Roll Forming Machine Co., Ltd., this fully automatic small corrugated tile production line delivers high daily production capacity with a maximum running speed of 40m/min. It processes standard PPGI and galvanized steel coils ranging from 0.08mm to 0.16mm, producing finished roof panels with 690mm effective covering width. The small arc profile fits residential houses, farm shelters and small workshop roofs, matching mainstream raw material standards widely used in overseas markets.
Robust Construction & Durability
The machine adopts a sturdy welded frame with thickened side panels, paired with solid main shafts and high-strength fasteners to keep stable operation during long continuous shifts. All forming rollers are made of carbon steel and go through grinding, quenching and electroplating treatments, bringing better wear resistance than common rollers on the market. Equipped with a 7.5kW servo main motor and chain transmission, the running speed can be freely adjusted according to order volume, effectively lowering chances of frame deformation and frequent part replacement.
Precision Control & Operation
Fitted with a separate servo cutting unit and PLC touch control system, the equipment maintains tight length tolerance within ±1mm for consistent finished products. Alloy cutting blades generate smooth, burr-free edges and require less regular maintenance. The touch screen features simple parameter setting logic, supported by complete safety accessories including foot emergency stop and running alarm lights. New operators can quickly get familiar with daily operation without lengthy training.
Efficient Production Features
Practical auxiliary devices help reduce labor input on your production line. The hand-operated feeding rack prevents steel coil offset during forming, while the finished sheet receiving platform neatly stacks tiles to cut sorting work. Every machine from Dongguang Hengfu undergoes full offline trial running before shipment to check all functions, so customers can launch production smoothly after installation.
Global Support & Service
Dongguang Hengfu Roll Forming Machine Co., Ltd. has rich export experience supplying this corrugated tile machine to global metal sheet manufacturers. The compact overall dimensions allow easy container loading for sea transport. Customers may arrange factory visits or remote video testing before delivery, and our technical team offers continuous online support to resolve any running issues timely. Whether you are new to roofing sheet manufacturing or expanding existing production capacity, this stable, low-failure forming line is a practical production investment.
Technical Specifications
Item Specification
Model YX5.5-30-690
Manufacturer Dongguang Hengfu Roll Forming Machine Co., Ltd.
Raw Material PPGI/GI color steel coil
Feeding Width 765mm
Finished Effective Width 690mm
Processing Thickness 0.08-0.16mm
Main Motor 7.5kW servo motor
Cutting System Servo flying cut
Control System PLC touch screen
Power Supply 380V/50Hz three-phase
Total Weight 3.7 Tons
Product Gallery

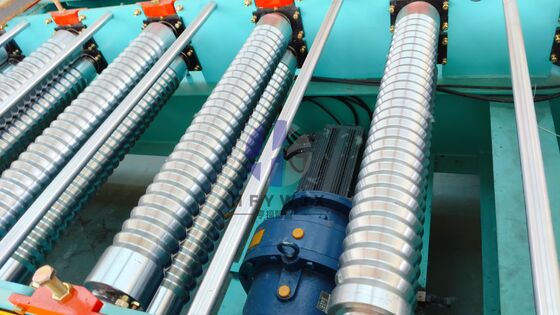

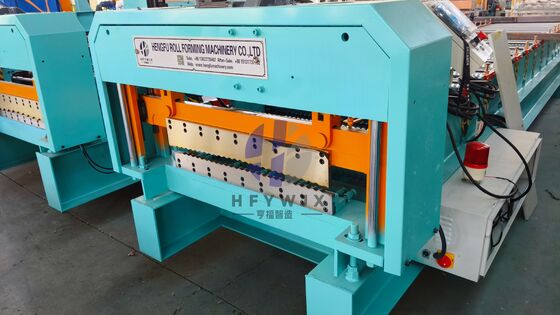

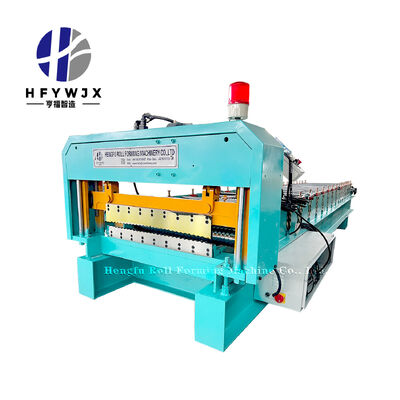

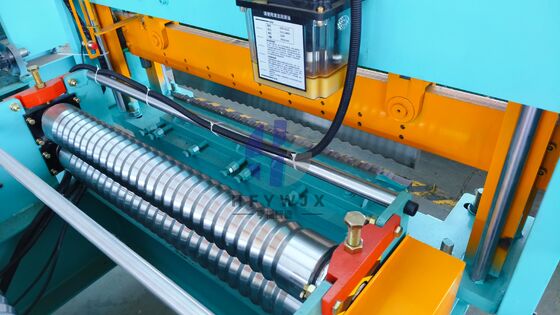

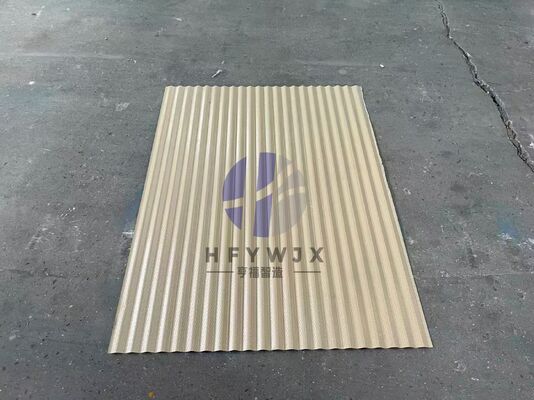

Portable corrugated sheet forming machine in operation Close-up view of machine forming rollers and components Finished roof panels produced by the machine
Frequently Asked Questions
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
Additional view of corrugated sheet forming machine setup
