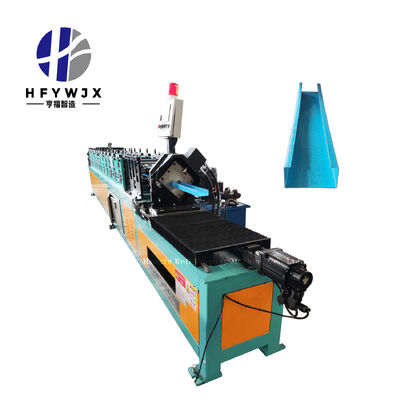

Automatic C Stud Roll Forming Machine for 0.4–0.5mm Light Steel Frames with Hydraulic Stop Cutting and 12 Forming Rollers

Manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd., this automatic C-shaped light steel keel roll forming machine realizes full automatic production procedures including coil feeding, material guiding, continuous roll forming, straightening and hydraulic stop cutting.

It takes steel coils with feeding width of 148mm as raw materials, stably processes steel plates within 0.4-0.5mm thickness, and produces standard 70-type C-shaped light steel keels. The running speed can be adjusted flexibly within a reasonable range to match different order production requirements.

The C keel produced by this equipment is one of the most widely used lightweight building auxiliary profiles in interior decoration and light steel construction fields.

• Indoor suspended ceiling system: It serves as the main bearing skeleton for integrated ceilings of office buildings, shopping malls, residences and other projects, supporting gypsum boards, decorative panels and other ceiling materials
• Lightweight partition wall framework: Assembled together with corresponding accessories to build non-load-bearing partition walls, featuring light weight, high structural stability and convenient on-site assembly
• Light steel prefabricated buildings: Used as wall auxiliary purlins and inner supporting frames of light steel houses, improving the overall structural rigidity of the building
• Other installation supports: It can also be applied for the fixed support of electrical wiring ducts, wall-mounted decoration frames and various indoor hanging components

This C-shaped structure has excellent bending resistance and load-bearing capacity under low self-weight, effectively simplifying on-site construction procedures and reducing comprehensive construction cost and construction cycle.

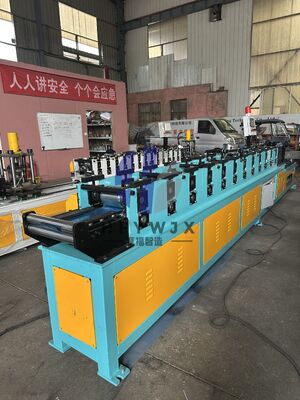

The whole machine adopts thick square tube welded frame matched with thickened integrated middle plate, which owns good structural rigidity and can keep stable operation under long-time continuous work.

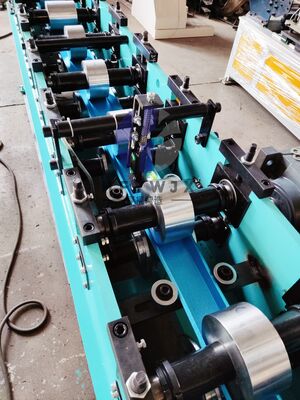

Equipped with 12 groups of forming rollers made of quenched CR15 steel after precision finishing, the rollers can shape neat and consistent C-type outline without scratching the coating surface of raw color steel and galvanized steel strips. Matched with standard chain transmission system and matched driving reducer, the power output is stable during operation.

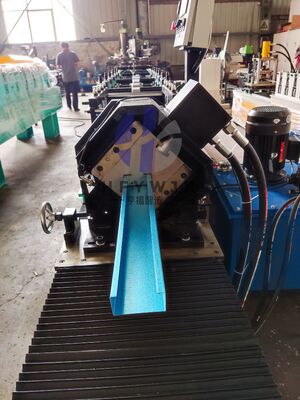

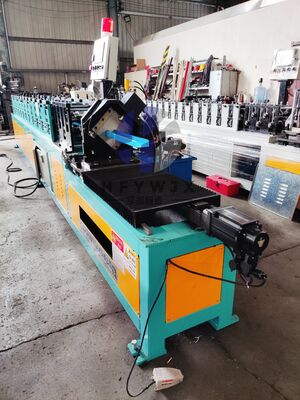

It is equipped with hydraulic stop cutting structure with Cr12mov alloy cutter head, which cuts fixed-length keels without generating redundant leftover materials, lowering material waste rate in production. The built-in straightening mechanism can correct slight deformation after forming, ensuring the flatness and straightness of finished keels.

The supporting 1.5T unpowered single-arm feeding rack can stably place steel coils to avoid material deviation in the feeding stage. Before delivery, every set of equipment will complete overall running test in our factory to check all forming and cutting functions, ensuring customers can put it into formal production smoothly after installation.

A: Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

A: Normally it takes about 45 days.

A: We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

A: We will complete production on time according to the confirmed lead time.

A: Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

A: We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
