Automatic C Channel Roll Forming Machine with 0.4–0.5mm Processable Thickness, Hydraulic Stop Cutting, and 12 Sets Forming Roller Groups

Detail Information

Product Description

Detail Information

Feeding Width:

148mm

Processable Thickness:

0.4–0.5mm

Forming Roller Groups:

12 Sets

Main Power:

4.0KW Reducer

Running Speed:

0–10m/min

Cutting Mode:

Hydraulic Stop Cutting, No Waste

Hydraulic Pump:

3.0KW Single Valve Pump

Feeding Rack:

1.5T Unpowered Single-arm Decoiler

Highlight:

0.4–0.5mm Processable Thickness C Channel Roll Forming Machine

Hydraulic Stop Cutting Light Steel Frame Roll Forming Machine

12 Sets Forming Roller Groups C Type Light Steel Keel Roll Forming Machine

Product Description

High Performance C Channel Cold Roll Former Automatic Light Gauge Steel Truss Profile Making Machine for Framing

Dongguang Hengfu Roll Forming Machinery Co., Ltd. manufactures this automatic C type light steel keel roll forming machine. The whole production line covers coil feeding, material guiding, continuous forming, straightening and hydraulic fixed-length cutting.

It processes galvanized steel and PPGI coils to produce standard 70-size C-shaped keels, suitable for raw material thickness ranging from 0.4mm to 0.5mm, with adjustable production speed to match various order demands.

Applications

The finished C-type light steel keel is a fundamental profile widely used in architectural interior decoration and light steel construction. Key applications include:

Main supporting frame for suspended ceilings in offices, shopping malls and residential projects
Lightweight partition wall frames for indoor space separation
Wall purlins and internal support components for prefabricated light steel buildings
Mounting brackets for wire ducts and indoor hanging fittings

Thanks to its C-shaped cross-section, the profile achieves good load-bearing performance while remaining lightweight, simplifying field installation and lowering overall construction expenditure.

Technical Features

Robust square tube welded frame and thickened middle plate for stable performance during long-hour continuous production

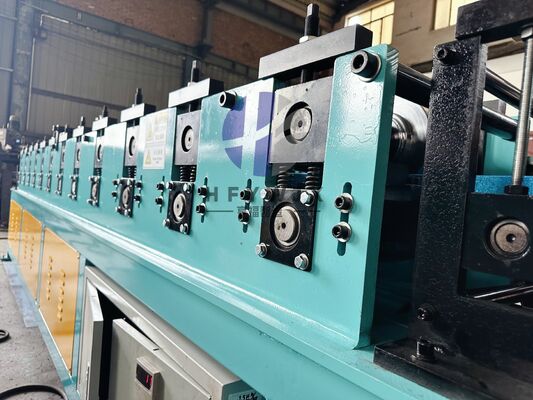

12 sets of quenched CR15 forming rollers with precise machining for consistent profile shapes and scratch-free steel surface
Chain transmission system for stable power transmission
Hydraulic stop-to-cut system using Cr12mov cutting blades to avoid leftover waste materials

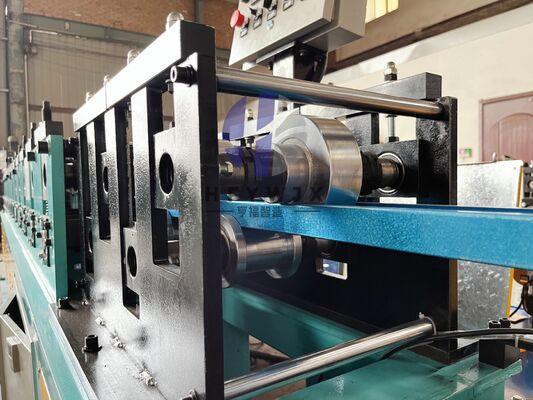

Built-in straightening unit to guarantee finished keel straightness
1.5T unpowered single-arm feeding rack to prevent material shifting during feeding
Full test running before shipment to ensure smooth commissioning

Technical Specifications

Item	Specification
Equipment Name	C type light steel keel roll forming machine
Manufacturer	Dongguang Hengfu Roll Forming Machinery Co., Ltd.
Feeding Width	148mm
Processable Thickness	0.4-0.5mm
Forming Roller Groups	12 sets
Main Power	4.0KW reducer
Running Speed	0-10m/min
Cutting Mode	Hydraulic stop cutting, no waste
Hydraulic Pump	3.0KW single valve pump
Feeding Rack	1.5T unpowered single-arm decoiler

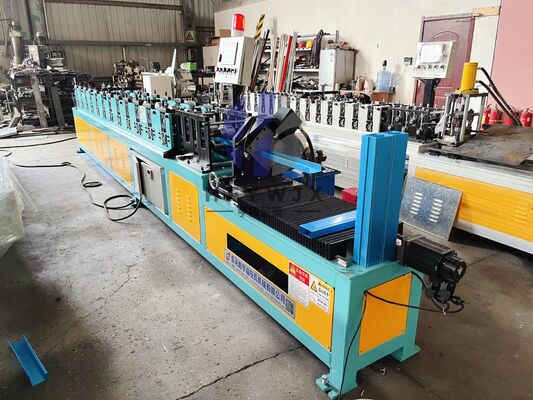

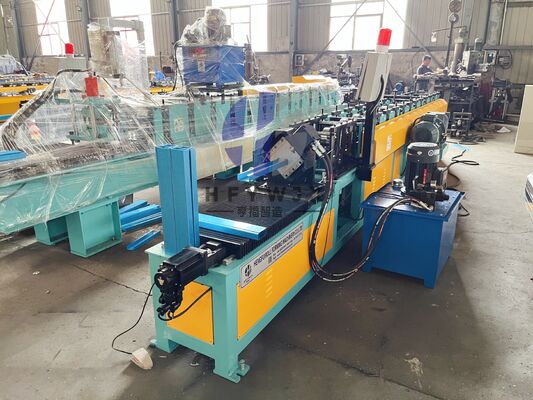

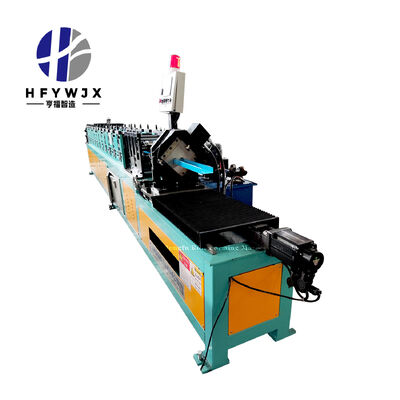

Product Images

Frequently Asked Questions

What are the available cutting methods?

Hydraulic Flying Shear or Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)

Can it be connected to an automatic stacker?

Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.

Can a laminating machine be added?

Yes, it allows for an integrated production line combining lamination and forming.

Is there a leveling device at the material inlet?

It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.

Is the electrical system susceptible to moisture damage?

The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
