PLC Controlled C Stud Roll Forming Machine with Hydraulic Stop Cutting and 12 Groups of Forming Rollers

Detail Information
Product Description
Detail Information
Raw Material Feeding Width:
148mm
Processable Thickness:
0.4–0.5mm
Forming Roller Sets:
12 Groups
Main Drive:
4.0KW Reducer
Adjustable Speed:
0–10m/min
Cutting Method:
Hydraulic Stop Cutting, Zero Waste
Hydraulic Unit:
3.0KW Single Valve Hydraulic Pump
Feeding Rack:
1.5T Unpowered Single-arm Decoiler
Highlight:

PLC Controlled C Stud Roll Forming Machine

,

Hydraulic Stop Cutting Light Steel Keel Roll Forming Machine

,

12 Groups of Forming Rollers C Type Light Steel Keel Production Line

Product Description
Industrial Light Gauge C Stud Production Line PLC Controlled Galvanized Steel Partition Profile Rolling Mill Pro
This automatic C type light steel keel roll forming machine is developed and manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd. The production line realizes integrated processing from steel coil feeding, guiding, roll forming, straightening to hydraulic cutting. It can produce standard 70-series C-shaped keels by processing galvanized steel or color steel strips, supporting material thickness of 0.4-0.5mm, and the operating speed can be adjusted flexibly according to production plans.
Applications
The C-type light steel keel manufactured by this equipment is a mainstream building profile in interior decoration and light steel construction fields. It is widely used as the bearing framework for suspended ceilings in apartments, offices and commercial buildings to support gypsum boards and decorative panels. It can also be combined with accessories to build lightweight partition walls for space division. In light steel prefabricated houses, it serves as wall purlins and internal supporting parts to strengthen structural stability. Moreover, it can be used as fixed supports for wire troughs and various indoor hanging components. The unique C-shaped structure provides favorable load-bearing capacity with light weight, which speeds up on-site assembly and helps clients control construction costs.
Technical Features
  • Heavy-duty square tube welded frame with thickened middle plate for stable operation
  • 12 groups of precision quenched forming rollers for neat profiles and coating protection
  • Chain transmission system for even power output
  • Hydraulic stop cutting system with Cr12mov blades for zero waste production
  • Built-in straightening device ensures good flatness of finished keels
  • 1.5T unpowered single-arm feeding rack for steady coil feeding
  • Complete trial operation before delivery for trouble-free startup
Technical Specifications
Item Specification
Equipment Name C type light steel keel roll forming machine
Manufacturer Dongguang Hengfu Roll Forming Machinery Co., Ltd.
Raw Material Feeding Width 148mm
Processable Thickness 0.4-0.5mm
Forming Roller Sets 12 groups
Main Drive 4.0KW reducer
Adjustable Speed 0-10m/min
Cutting Method Hydraulic stop cutting, zero waste
Hydraulic Unit 3.0KW single valve hydraulic pump
Feeding Rack 1.5T unpowered single-arm decoiler
Product Images

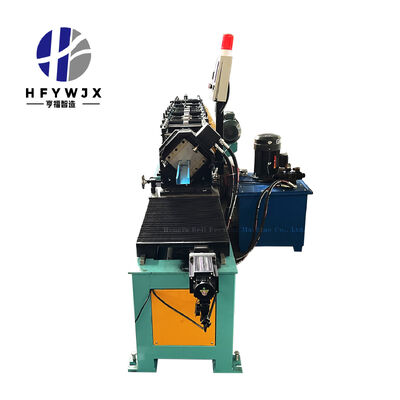

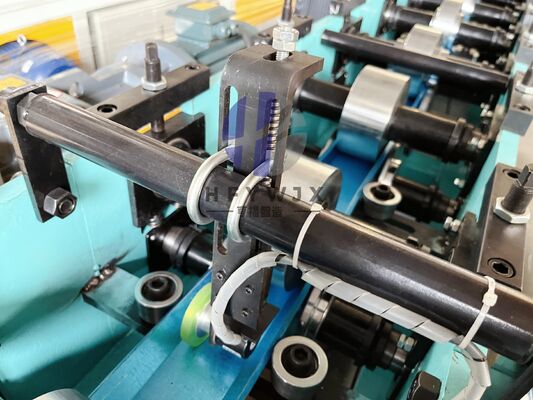

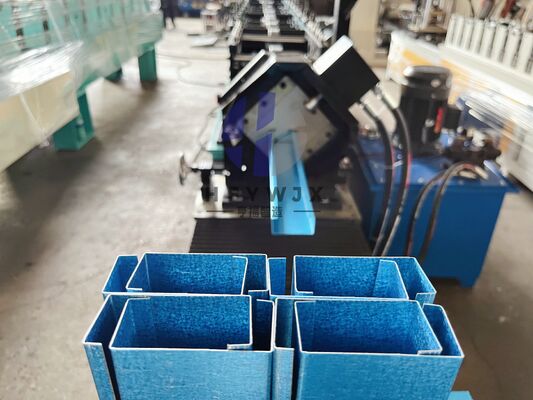

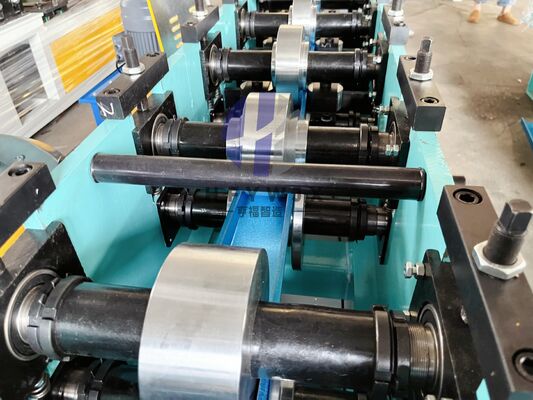

C type light steel keel roll forming machine overview Close-up view of forming rollers and cutting mechanism Finished C-shaped keel profiles produced by the machine
Frequently Asked Questions
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?
Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
How should the machine be stored when not in use for an extended period?
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
How long is the warranty period?
The entire machine comes with a 12-month warranty, excluding wear parts.

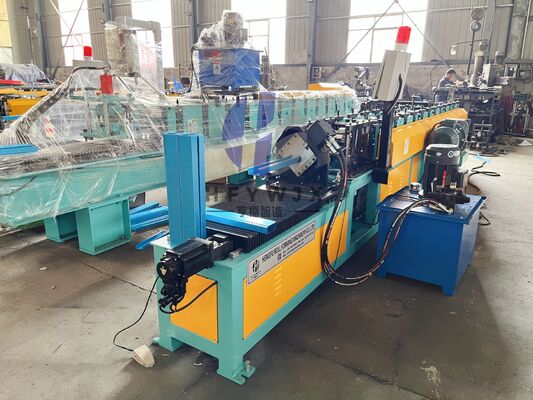

Additional view of machine operation and components
