Automatic High Precision High Speed Glazed Tile Roll Forming Machine and Glazed Tile Making Machine for Metal Roof Tiles

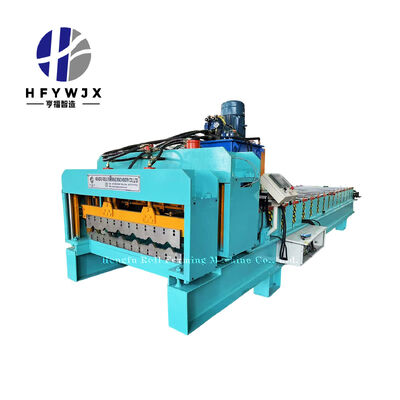

Manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd., this 970 glazed tile roll forming machine is a dedicated automatic equipment for producing YX30-194-970 metal glazed roof tiles. The full-set production workflow covers decoiling, manual-adjust feeding, multi-station roll forming, hydraulic pressing and fixed-length cutting, and finished tile discharging. It works with PPGI color-coated steel coils, delivering a stable output speed of 4–6 m/min for decorative metal tile manufacturing.

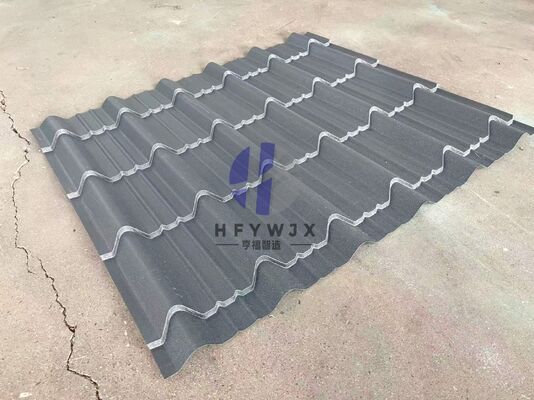

Metal glazed tiles produced by this machine combine the classic appearance of traditional tiles with the advantages of modern metal sheets.

They are widely used as roof covering for villas, residential houses, antique-style buildings, scenic pavilions, and tourist facilities. They are also suitable for renovation projects of old buildings and slope-roof reconstruction. Compared with traditional clay tiles, these metal glazed tiles are much lighter, which reduces the building's structural load. The pre-painted surface provides excellent anti-rust and weather-proof performance for long-term outdoor service. Featuring good water-drainage performance and easy installation, they greatly shorten the construction cycle and lower later maintenance costs for roofing contractors.

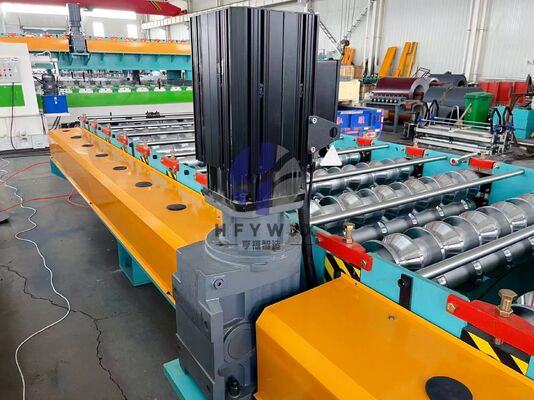

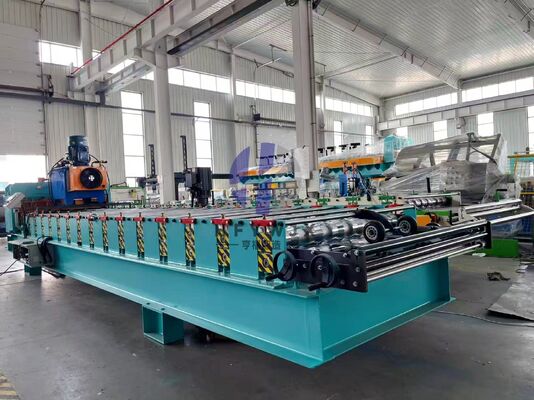

This forming machine adopts a heavy-duty 400H welded steel wall-plate frame with 16 mm thick carbon-steel wall boards. It is equipped with 16 forming passes. Forming rollers are made of 45# steel with precision turning, chrome-plating, and quenching treatment. Solid 80 mm main shafts adopt gear-driven transmission for powerful and smooth running, without scratching the protective coating of raw steel strips.

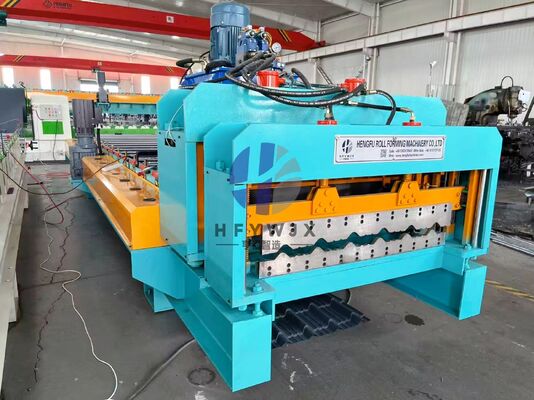

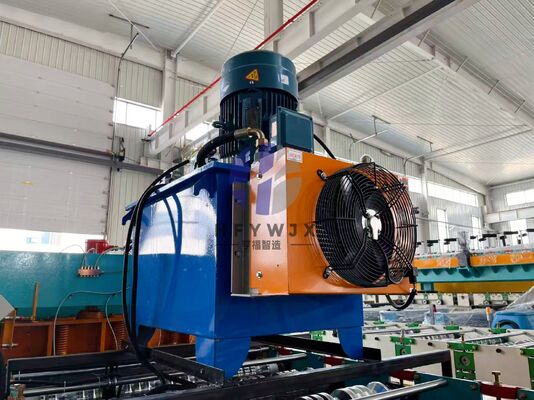

It is fitted with a double linear-guide hydraulic cutting system with an air-cooled oil pump. The mould and cutting blades are made of Cr12MoV alloy steel after quenching and fine grinding. It achieves burr-free clean cutting with a low failure rate. The split cantilever PLC touch screen cooperates with a rotary counter for precise length control, keeping length tolerance within ±1 mm. A wireless remote controller and alarm indicator are equipped for convenient on-site operation.

Every complete machine will finish a full-load trial-run inspection inside our factory before delivery. The compact overall dimension supports convenient container loading for overseas shipment. Whether you are expanding existing roof-tile product lines or investing in new metal glazed-tile production, this stable-running 970 glazed tile roll forming machine is a reliable workshop solution.
