Heavy Duty Automatic 970 Glazed Tile Roll Forming Machine for Metal Glazed Roof Tile Production

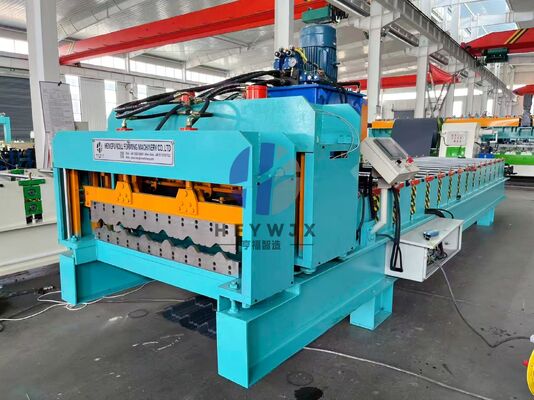

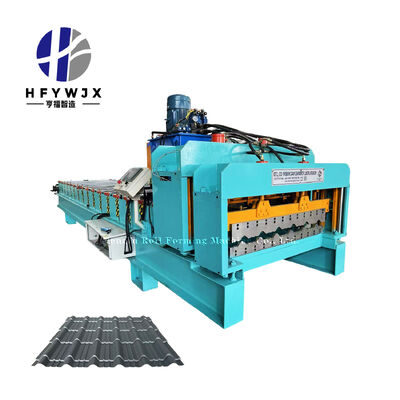

Manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd., the 970 glazed tile roll forming machine is specialized cold-forming equipment designed to produce YX30-194-970 metal glazed roof tiles. It completes the full production flow: decoiling, manual hand-wheel feeding, multi-station roll forming, hydraulic pressing, and fixed-length cutting, then outputs finished tiles. Designed for PPGI color-coated steel coils, it runs steadily at 4–6 m/min for decorative metal roof tile mass production.

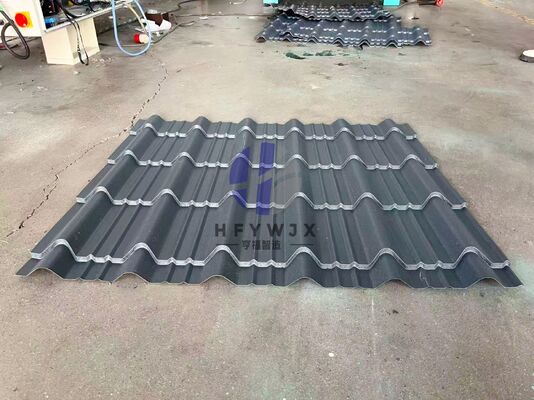

Metal glazed tiles from this machine combine the classic visual effect of traditional tiles with the advantages of modern metal sheet.

They are widely used for roof construction of villas, private residences, Chinese-style antique buildings, scenic pavilions, and resort facilities. They are also well-suited for old-building renovation and slope-roof reconstruction projects. Compared with heavy ceramic clay tiles, these metal tiles greatly reduce dead load on building structures. The color-coated surface delivers superior anti-rust and weather-resistant performance for long-term outdoor exposure. Featuring excellent water drainage performance and easy installation, they help shorten construction cycles and lower ongoing roof maintenance costs for roofing contractors.

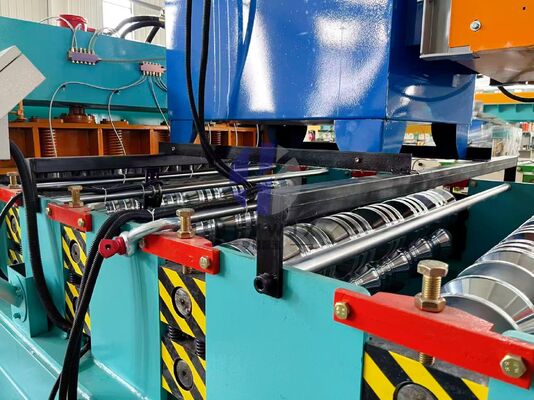

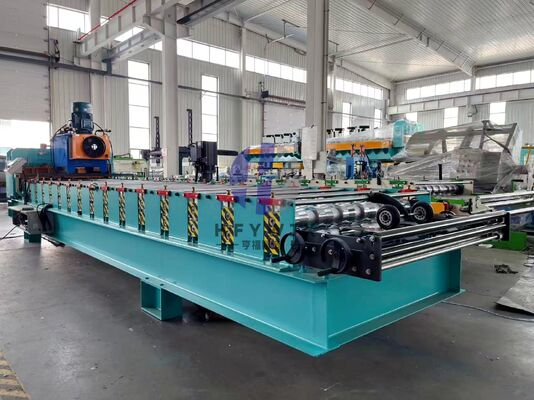

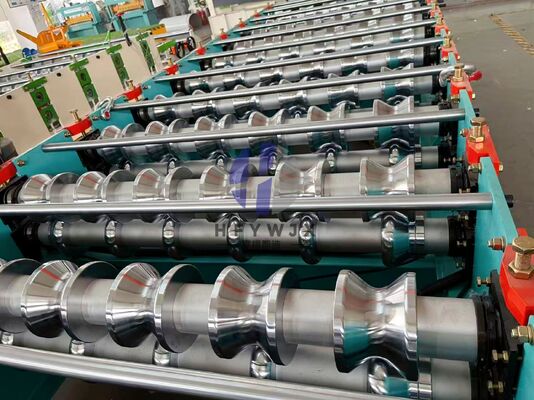

This roll former is built with a heavy-duty 400H welded steel wall-plate frame and 16 mm thick carbon-steel wall boards. It is equipped with 16 forming passes. Forming rollers are made of 45# steel with precision turning, chrome-plating, and quenching treatment. Solid 80 mm main shafts adopt gear transmission, offering powerful and smooth operation without scratching the paint coating of raw steel strips.

It is fitted with a double linear-guide hydraulic cutting unit equipped with an air-cooled oil pump. Forming dies and cutting blades are made of Cr12MoV alloy steel after quenching and fine grinding. It realizes burr-free clean cutting and requires minimal maintenance work. A split cantilever-mount PLC touch screen works together with a rotary length counter, keeping cutting length tolerance within ±1 mm. A wireless remote controller and alarm system are available for convenient field operation.

Every machine undergoes a complete in-factory linkage trial-run before delivery. Compact overall dimensions support simple container loading for overseas shipment. If you want to expand your roof-tile product portfolio or start a new metal glazed tile manufacturing business, this robust 970 glazed tile roll forming machine will be a reliable workshop solution.
