High Speed Automatic 970 Step Pressed Steel Glazed Wave Sheet Glazed Tile Roll Forming Machine Metal Glazed Roof Tile Machine

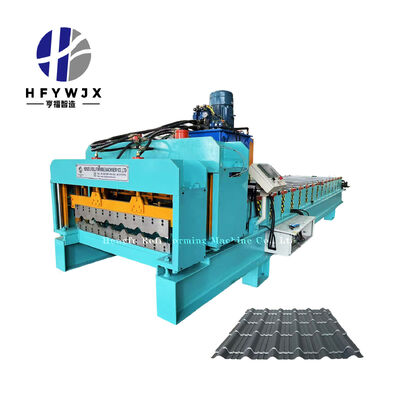

The 970 glazed tile roll forming machine is independently developed and manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd. This equipment is engineered to produce YX30-194-970 style metal glazed roof tiles.

The full production process includes decoiling, hand-crank feeding guidance, sequential roll forming, hydraulic pressing, fixed-length cutting, and finished tile output. It processes PPGI color-coated steel coils and maintains a stable running speed of 4–6 m/min to meet medium-volume production demands for decorative metal roof tiles.

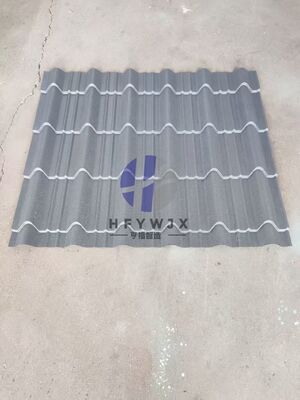

Metal glazed tiles produced by this equipment recreate the elegant appearance of traditional ceramic tiles while retaining the merits of metal panels.

These tiles are ideal roofing materials for villas, private houses, antique-style architecture, scenic spot buildings, and resort projects. They are also a great option for old building renovation and sloped-roof retrofitting.

Different from heavy clay tiles, metal glazed tiles are lightweight and will not bring excessive load to building structures. Their pre-painted surface provides outstanding anti-corrosion and weather-resistant performance against sun, rain, and harsh outdoor environments. Good water-shedding properties and easy installation help contractors save construction time and reduce long-term roof maintenance expenses.

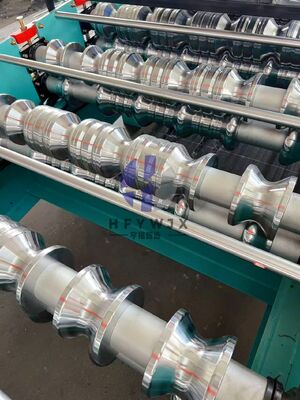

The machine adopts a heavy-duty 400H welded steel wall-type frame with 16 mm thick carbon-steel wall plates. Sixteen groups of forming rollers are made of 45# steel, which are precision-turned, chrome-plated, and quenched. Solid 80 mm main shafts are driven by a gear transmission system, delivering strong power and smooth operation without damaging the paint layer of incoming steel strips.

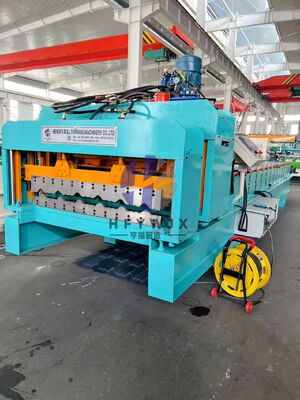

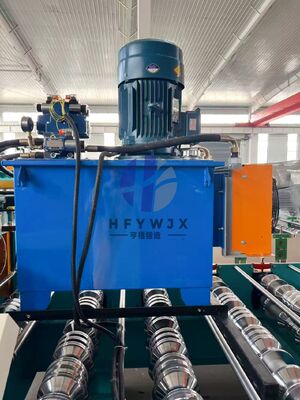

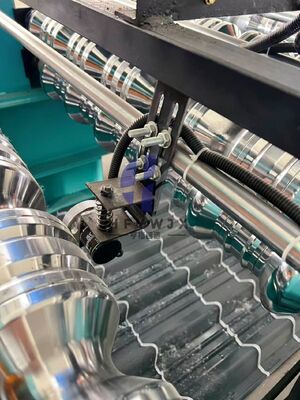

It adopts a double linear-guide hydraulic cutting unit fitted with an air-cooled oil pump. Both pressing dies and cutting blades are made of quenched and finely-ground Cr12MoV alloy steel. It achieves a burr-free cutting effect with very low maintenance frequency. A split cantilever PLC touch screen works with a rotary length counter, ensuring cutting length accuracy within ±1 mm. A wireless remote controller and alarm device are equipped for simple and safe on-site operation.

Each unit will pass a complete factory test-running before shipment. Compact overall dimensions facilitate container packing for overseas transportation. If you intend to enrich your roof-tile product range or invest in new metal glazed tile production, this dependable 970 glazed tile roll forming machine is a worthy choice for your plant.
