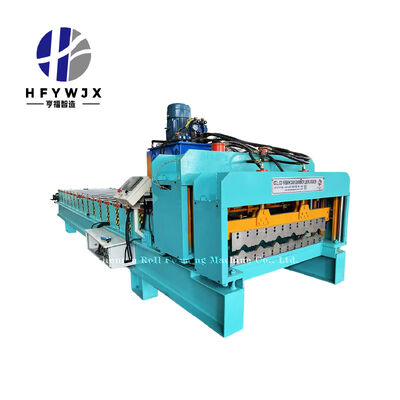

Automatic High Precision 970 Glazed Tile Roll Forming Machine Metal Glazed Roof Tile Making Machine for Villa Roofing Sheets

The 970 Glazed Tile Roll Forming Machine is a specialized cold-forming solution manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd., designed for the stable production of YX30-194-970 metal glazed roof tiles. The complete line integrates decoiling, hand-wheel feeding, multi-station roll forming, hydraulic pressing, fixed-length cutting, and finished-tile discharge. It works with PPGI color-coated steel coils and operates reliably at 4–6 m/min, making it suitable for medium-volume manufacturing of decorative metal roofing tiles.

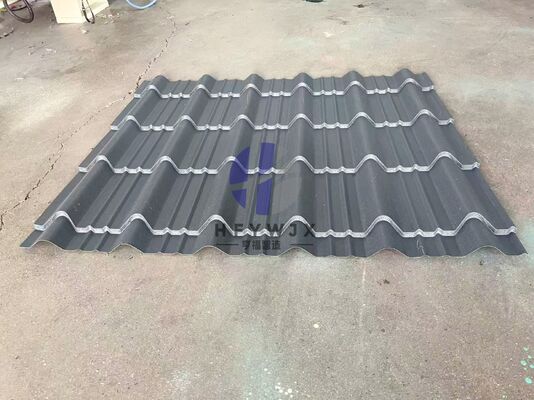

The 970 metal glazed tiles produced by this machine combine the classic aesthetic of traditional tiled roofs with the lightweight strength of modern steel panels.

They are widely used as roofing materials for villas, private residences, antique-style buildings, scenic pavilions, tourist facilities, and resort projects. They are also suitable for old building renovation and sloped-roof retrofitting. Compared with heavy clay tiles, metal glazed tiles reduce structural load while maintaining excellent corrosion resistance and weather durability. The color-coated surface withstands prolonged exposure to sunlight, rain, and harsh outdoor conditions. Good water-shedding performance, lightweight construction, and easy on-site installation help shorten construction cycles and reduce long-term maintenance costs for roofing contractors.

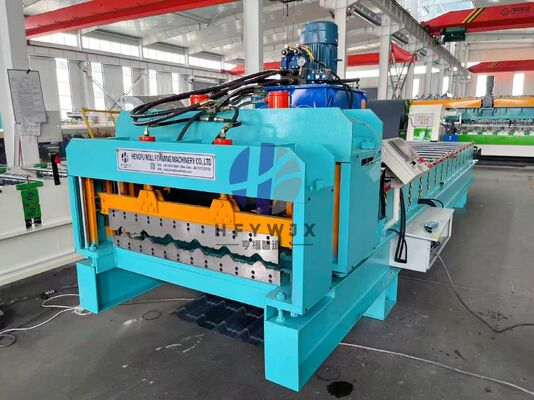

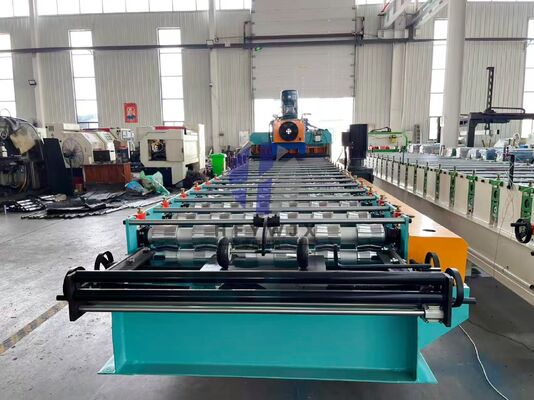

This machine is built with a heavy-duty 400H welded steel wall-type frame and 16 mm thick carbon-steel wall plates, ensuring high rigidity and stable long-term operation. It is equipped with 16 forming passes. The forming rollers are made of 45# steel, processed through precision turning, chrome plating, and quenching. Solid 80 mm main shafts are driven by a gear transmission system, which provides strong, smooth power transmission without damaging the paint coating of the steel strip.

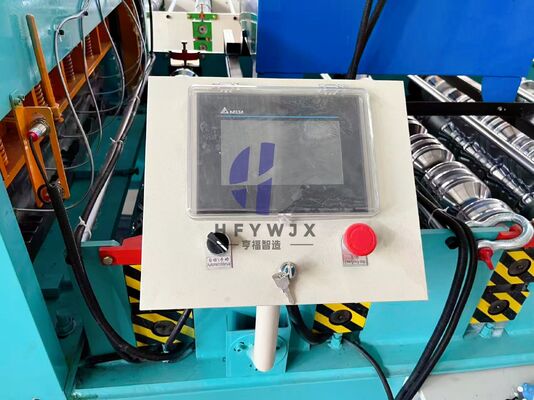

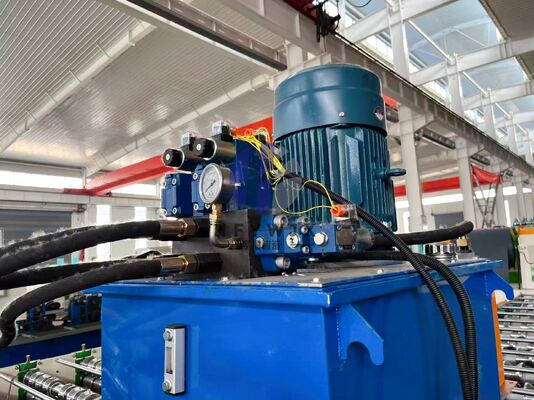

The machine uses a double linear-guide hydraulic cutting system with an air-cooled oil pump. Both the pressing dies and cutting blades are made of Cr12MoV alloy steel, hardened and finely ground to ensure clean, burr-free cuts and extended service life. A split cantilever PLC touch screen works together with a rotary length counter to control cutting length accurately, with a tolerance of ±1 mm. Wireless remote control and alarm indication are also provided for convenient and safe field operation.

Each complete machine undergoes full factory trial-run testing before shipment. Its compact structure is well suited for containerized overseas delivery. Whether you are expanding your roofing product range or starting a new metal glazed tile production business, the 970 Glazed Tile Roll Forming Machine is a practical and reliable choice for your workshop.
