5.5KW Motor Corrugated Colour Steel Roofing Sheet Roll Forming Machine Automatically

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX23-190-760
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Roof Panel Roll Forming Machine Decoiler: ASTM1045 Chrome Plated Surface With Chrome
Power: 5.5KW+4kw Size Of Purlin: YX23-190-760
Size Of Line: About 7.4mx2.1x1.6m Steel Thickness: 0.3-0.8mm
Drive: By Chain
High Light:

Roof Roll Forming Machine

,

Wall Panel Roll Forming Machine


Product Description

YX25-205-820 Roofing Panel Roll Forming Machine



1. Specification of the material

Suitable Material: Colored Steel plate, Galvanized steel

Width of the raw material :914mm

Thickness :0.3mm-0.8mm


2. Machine Detailed Parameters

Roll Forming Machine YX23-190-760
Machine structure Guide pillar structure
Total power

Motor power-5.5kw

Hydraulic power-4kw

Roller stations About 18 stations
Productivity 0-15m/min
Drive system By chain
Diameter of shaft ¢70mm solid shaft
Voltage 380V 50Hz 3phases (Customized)
Color Of The Machine Yellow and blue
Container need 40GP container
Deliver Time 70 days
Terms Of Payment 30%T/T 70% pay before shipment







3. Profile drawing

5.5KW Motor Corrugated Colour Steel Roofing Sheet Roll Forming Machine Automatically 0

4. The Chart of Process Flow

5.5KW Motor Corrugated Colour Steel Roofing Sheet Roll Forming Machine Automatically 1

5. Specification of Components

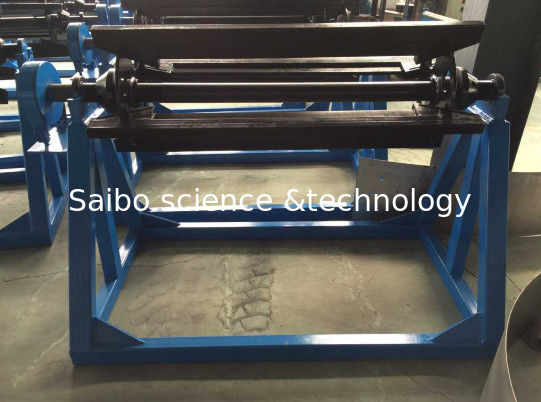

(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: guide pillar



(3) Mobile Protective mesh

  • ​To avoid accidents, the machine will be covered with the mobile protective mesh



(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

5.5KW Motor Corrugated Colour Steel Roofing Sheet Roll Forming Machine Automatically 2
