Manual Decoiler K Span Roll Forming Machine For Roofing Building Single Chain

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX610
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 56 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 310 sets per year
Detail Information
Drive: 1.5 Inch Single Chain Container Need: 1X40GP
Product Name: K-Span Roll Forming Machine Shaft: ¢70mm
Steel Thickness: 1.0-1.2mm Power: 7.5KW+5.5KW
Roller Material: SAE1045 Forged Steel With Chrome Station: 17 Stations
Highlight:

Roof Tile Roll Forming Machine

,

Arch Sheet Roll Forming Machine


Product Description

YX610 K-Span Roll Forming Machine



Profile:

All of our machine profile is customized, below profile is only for your reference.

1. Coil width: 914mm

2. Effective width: 610mm

3. Thickness: 1.0-1.2mm

Manual Decoiler K Span Roll Forming Machine For Roofing Building Single Chain 0

Layout:

Manual Decoiler K Span Roll Forming Machine For Roofing Building Single Chain 1

Manual de-coiler—Feeding—Roll Forming—Cutting—Out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

K-span



2 Coil width According the profile
3 Rolling Speed 12-15m/min(not include cutting time)
4 Rolling Thickness 1.0-1.2mm GI
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5T manual de-coiler
7 Roller Stations About 17 stations (according the final design)
8 Roller Material SAE1045 forge steel, coated with chrome
9 Shaft Material and DIA ¢70mm, material is 45# forge steel
10 Post cutting Hydraulic cutting after forming
11 Maim Motor Power 7.5kw
12 Hydraulic Station Power 5.5kw
13 Hydraulic Pressure 12-16Mpa adjustable

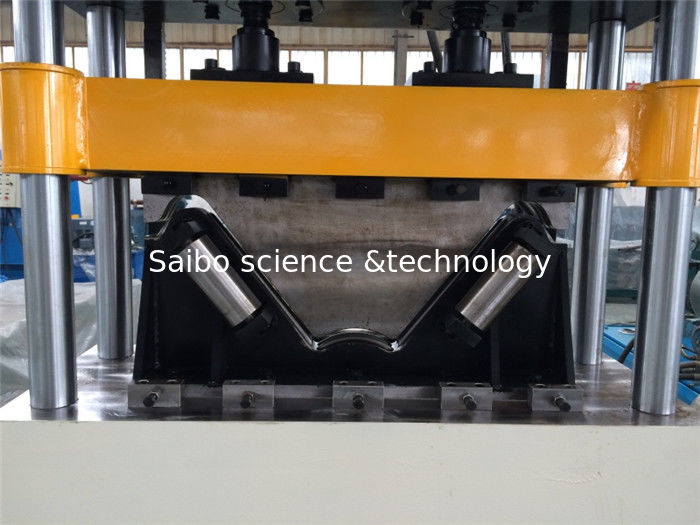

14 Material Of Cutting Cr12Mov quenching 58-62℃
15 Structure Of The Stations Wall panel
16 Tolerance 3m+-1.5mm
17 Electric Source

380V, 50HZ,3 phase

According to customer’s require



18 Way Of Drive By 1.5inch single chain
19 Color Of The Machine Yellow and blue
20 Size of the machine L*W*H about 8.5m*1.2m*1.2m
21 Container Need 1x40 feet



Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation



Photos of each component
