Protective Net Enclosures Gutter Roll Forming Machine High Speed Single Chain

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX82-115
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 50 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 380 sets per year
Detail Information
Product Name: Gutter Roll Forming Machine Shaft: ¢65mm
Steel Thickness: 0.45-0.55mm Decoiler: Manual Or Hydraulic
Power: 11KW+3KW Roller Material: SAE1045 Steel With Chrome
Station: 12 Stations+several Side Rollers Drive: Single Chain
High Light:

Gutter Forming Machine

,

Wall Panel Roll Forming Machine


Product Description

YX82-115 Gutter Roll Forming Machine



Gutter roll forming machine is composed of placing, forming and post forming cutting. The gutter has a smooth and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, cinemas and other rooms and walls.

The components of gutter roll forming machine include: gutter forming machine complete machine, PLC computer control system, hydraulic pump station system, fully automatic post shearing system Equipment features: the equipment adopts high-level automatic control software to realize.

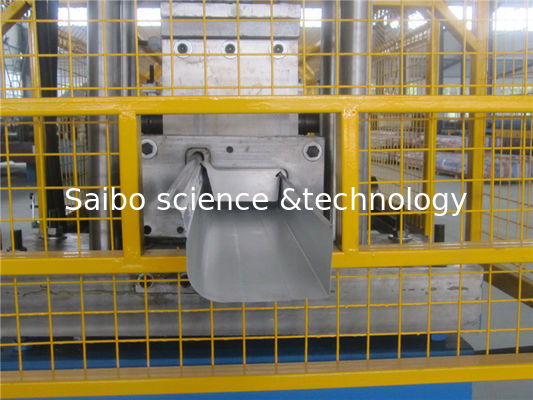

Profile:

All of our machine profile is customized, below profile is only for your reference.

1. Coil width: according the profile

2. Effective width: 115mm

3. Thickness: 0.45-0.55mm

Protective Net Enclosures Gutter Roll Forming Machine High Speed Single Chain 0

Layout:

Protective Net Enclosures Gutter Roll Forming Machine High Speed Single Chain 1

Manual de-coiler—Feeding—Roll Forming—Cutting—Out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

Gutter



2 Coil width According the profile
3 Rolling Speed 20-30m/min(not include cutting time)
4 Rolling Thickness 0.45-0.55mm Color steel, G550
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 3T manual decoiler
7 Pre-cutting By manual
8 Roller Stations About 12 stations + several side rollers
9 Roller Material 45# forge steel, coated with chrome
10 Shaft Material and DIA ¢65mm, material is 45# forge steel
11 Post cutting Hydraulic cutting after forming
12 Maim Motor Power 11kw Siemens
13 Hydraulic Station Power 3kw
14 Hydraulic Pressure 10-12Mpa adjustable
15 Material Of Cutting Cr12Mov quenching 58-62℃
16 Structure Of The Stations Guide pillar
17 Tolerance 3m+-1.5mm
18 Electric Source

380V, 50HZ,3 phase

According to customer’s require



19 Way Of Drive By chain
20 Color Of The Machine Yellow and blue
21 Size of the machine L*W*H about 5.8m*1.1m*1.2m
22 Container Need 1x20 feet


Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation



Matters needing attention:

1. Pay attention to safety during live working of equipment

2. Do not put hands or foreign matters into the knife edge at any time

3. The electrical cabinet shall be protected from rain and sun; Counter prevents hard objects from striking; The wire shall not be broken by the plate.

4. Add lubricating oil to the moving parts of machinery.

5. Power off when plugging and unplugging the aviation plug.

Protective Net Enclosures Gutter Roll Forming Machine High Speed Single Chain 2

Protective Net Enclosures Gutter Roll Forming Machine High Speed Single Chain 3
