| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/IS09001/SGS |
| Model Number: | YX35-183 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 50 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 380 sets per year |
| Product Name: | Gutter Roll Forming Machine | Shaft: | ￠65mm |
|---|---|---|---|
| Steel Thickness: | 0.45-0.55mm | Power: | 11KW+3KW |
| Roller Material: | 40CR | Station: | 9 Stations+several Side Rollers |
| Drive: | 1.2inch Single Chain | Container Need: | 1X20GP |
| High Light: | Gutter Forming Machine,Purlin Roll Forming Machine |
||

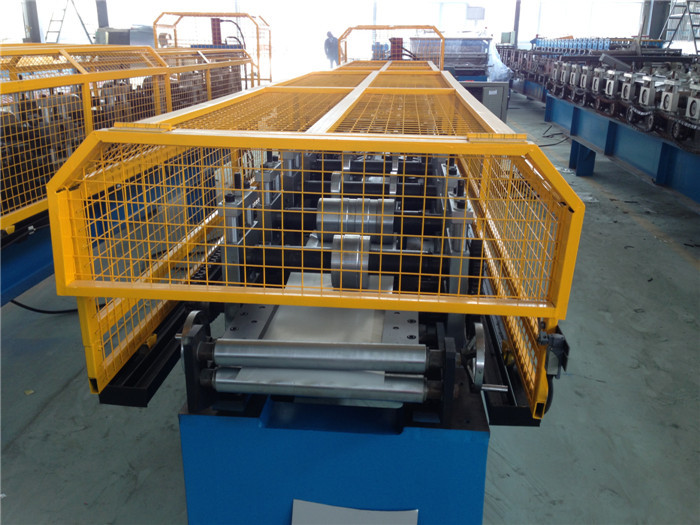

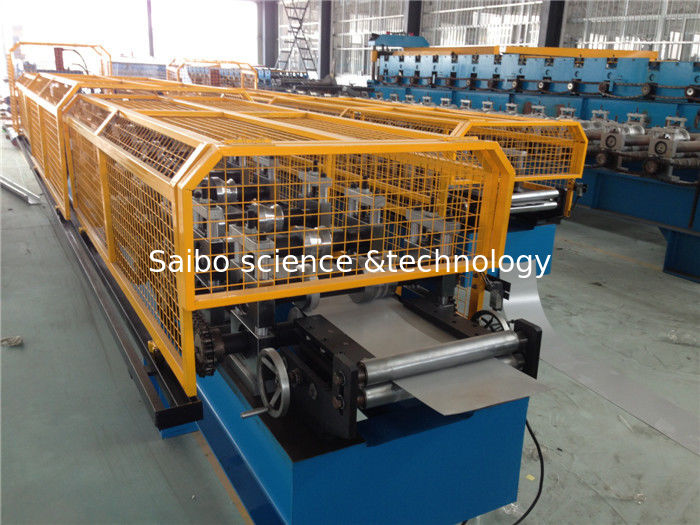

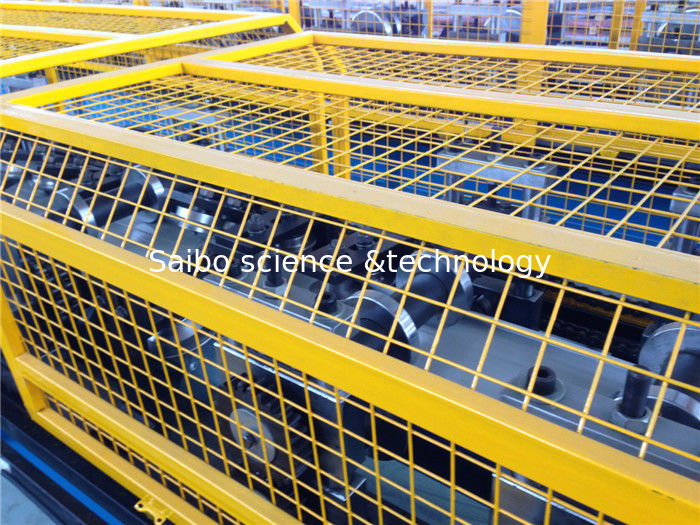

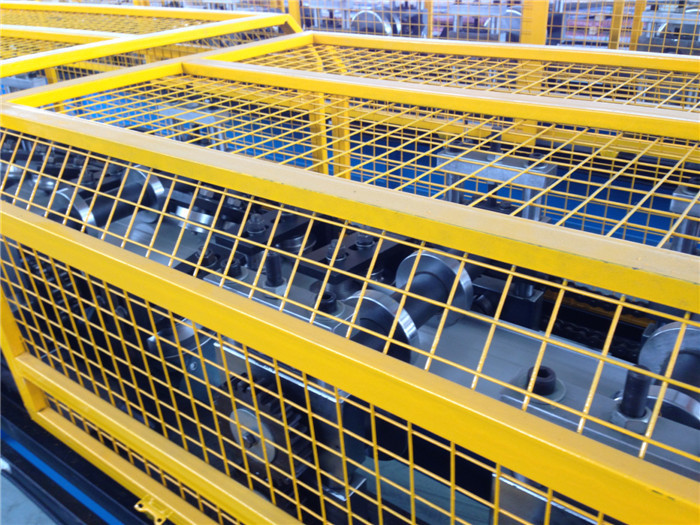

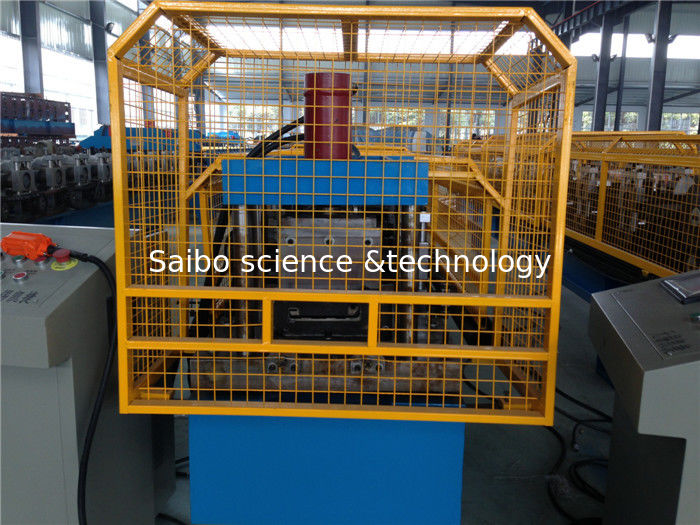

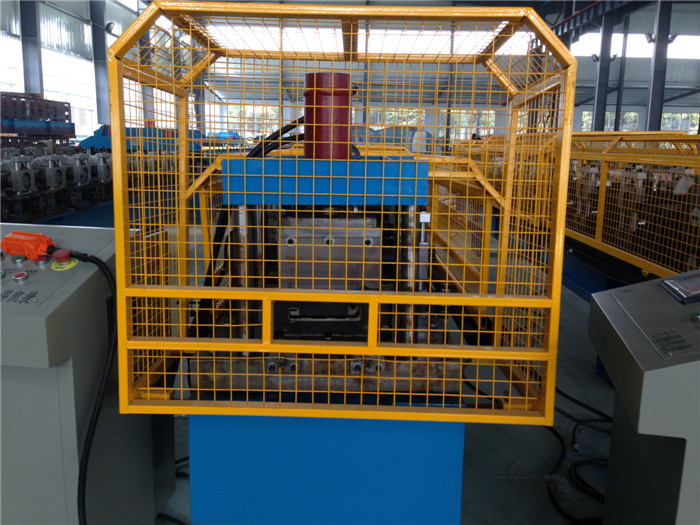

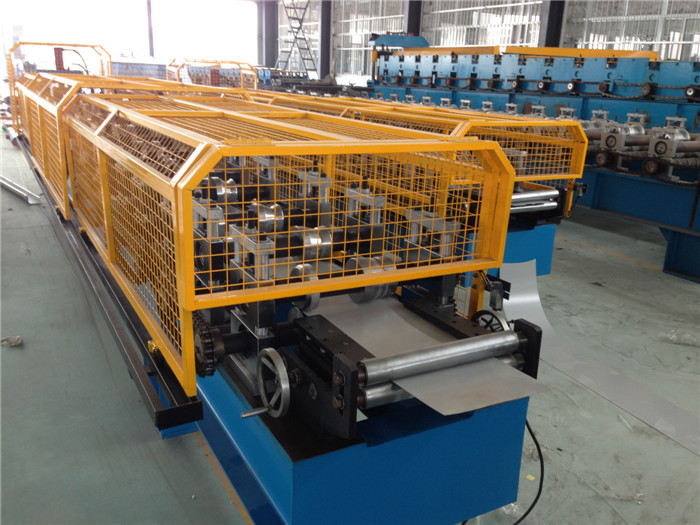

YX35-183 Gutter Roll Forming Machine
Profile:
All of our machine profile is customized, below profile is only for your reference.
1. Coil width: according the profile
2. Effective width: 183mm
3. Thickness: 0.45-0.55mm
Layout:
Manual de-coiler—Feeding—Roll Forming—Cutting—Out table
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine |
Gutter
|
| 2 | Coil width | According the profile |
| 3 | Rolling Speed | 20-30m/min(not include cutting time) |
| 4 | Rolling Thickness | 0.45-0.55mm Color steel, G550 |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 3T manual decoiler |
| 7 | Pre-cutting | By manual |
| 8 | Roller Stations | About 9 stations + several side rollers |
| 9 | Roller Material | 40CR, coated with chrome |
| 10 | Shaft Material and DIA | ￠65mm, material is 45# forge steel |
| 11 | Post cutting | Hydraulic cutting after forming |
| 12 | Maim Motor Power | 11kw Siemens |
| 13 | Hydraulic Station Power | 3kw |
| 14 | Hydraulic Pressure | 10-12Mpa adjustable |
| 15 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
| 16 | Structure Of The Stations | Guide pillar |
| 17 | Tolerance | 3m+-1.5mm |
| 18 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 19 | Way Of Drive | By chain |
| 20 | Color Of The Machine | Yellow and blue |
| 21 | Size of the machine | L*W*H about 5.3m*1.1m*1.2m |
| 22 | Container Need | 1x20 feet |
Main Features
1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
