Gutter Making Machine with Wall Panel Structure Drive By Chain

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX101-123
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 50 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 410 sets per year
Detail Information
Shaft: ¢56mm Steel Thickness: 0.5-0.9mm
Decoiler: Manual Or Hydraulic Power: 4KW+3KW
Roller Material: SAE1045 Steel With Chrome Station: 12 Stations
Drive: Single Chain Container Need: 1X40GP
High Light:

Gutter Forming Machine


Purlin Roll Forming Machine

Product Description

Mobile Protective Cover Gutter Roll Forming Machine Wall Panel 0.9mm YX101 - 123

YX101-123 Gutter Roll Forming Machine


1. 65mm solid shaft is used, and the H-shaped steel is used as the base frame, so that the gutter machine can withstand long-term production without deformation of the machine, thereby ensuring long-term production of gutters;
2. The rollers are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of rain gutter.
3. cut frame is stress-relieved to ensure that it is not deformed during long-term production and makes the gutters smooth.
4. Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the gutter forming machine, and the cutting length tolerance is within ± 2mm
5. forming speed can reach about 20 meters per minute

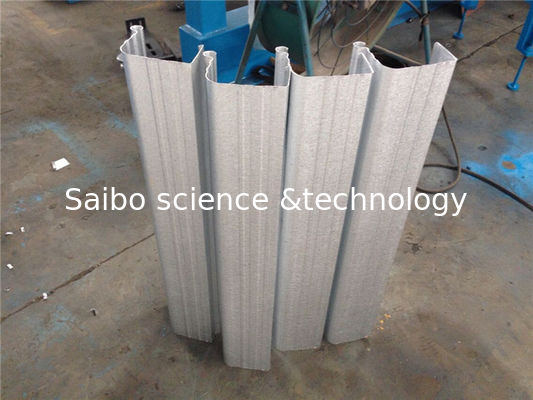

Gutter Making Machine with Wall Panel Structure Drive By Chain 0


Gutter Making Machine with Wall Panel Structure Drive By Chain 1

Manual de-coiler—Pre-cutting—Feeding—Roll Forming—Cutting—Out table


Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Coil width 610mm
Yield Strength 235Mpa



Item NO




Offered specification

1 Roll Forming Machine



2 Coil width 320mm
3 Rolling Speed 12-15m/min(not include cutting time)
4 Rolling Thickness 0.5-0.9mm Color steel, G550
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 3T manual decoiler
7 Pre-cutting By manual
8 Roller Stations About 12 stations (according the final design)
9 Roller Material 45# forge steel, coated with chrome
10 Shaft Material and DIA ¢56mm, material is 45# forge steel
11 Post cutting Hydraulic cutting after forming
12 Maim Motor Power 4kw
13 Hydraulic Station Power 3kw
14 Hydraulic Pressure 10-12Mpa adjustable
15 Material Of Cutting Cr12Mov quenching 58-62℃
16 Structure Of The Stations Wall panel
17 Tolerance 3m+-1.5mm
18 Electric Source

380V, 50HZ,3 phase

According to customer’s require


19 Way Of Drive By chain
20 Color Of The Machine Yellow and blue
21 Size of the machine L*W*H about 6.2m*1.1m*1.2m
22 Container Need 1x40 feet


Gutter Making Machine with Wall Panel Structure Drive By Chain 2
Gutter Making Machine with Wall Panel Structure Drive By Chain 3

Gutter Making Machine with Wall Panel Structure Drive By Chain 4


Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation


Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
Saibo machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.

Machine work automatically, operate easily.
