| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/IS09001/SGS |
| Model Number: | YX20-123 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 60 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 350 sets per year |
| Product Name: | Door Frame Roll Forming Machine | Usage: | Door Shutter |
|---|---|---|---|
| Decoiler: | Manual Or Hydraulic | Power: | 7.5KW+3KW |
| Roller Material: | #45 Forged Steel With Chrome | Station: | 14 Stations |
| Drive: | Chain | Container Need: | 1X20GP |
| High Light: | Shutter Roll Forming Machine,Cold Roll Forming Machine |
||

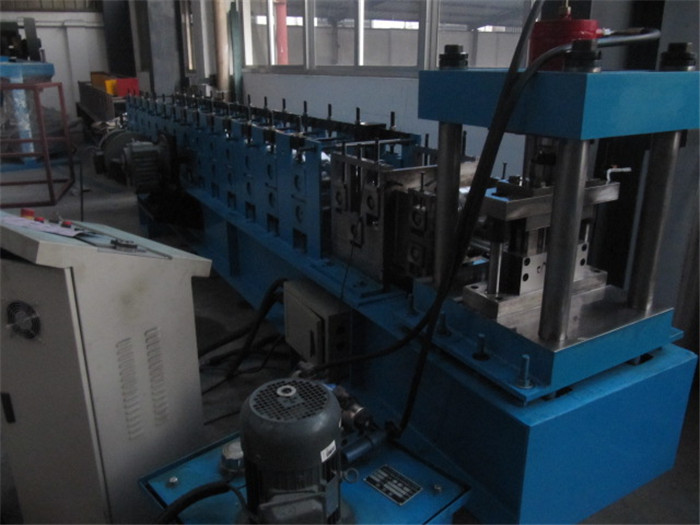

YX20-123 Shutter Roll Forming Machine
Profile:
All of our machine profile is customized, below profile is only for your reference.
1. Coil width: 185mm
2. Effective width: 123mm
3. Thickness: 0.8-1.25mm
Layout:
Manual de-coiler—Feeding—Roll Forming—Cutting—Out table
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine |
Shutter
|
| 2 | Coil width | 185mm |
| 3 | Rolling Speed | 12-15m/min(not include cutting time) |
| 4 | Rolling Thickness | 0.8-1.25mm GI |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 3T manual decoiler |
| 7 | Pre-cutting | By manual |
| 8 | Roller Stations | About 14 stations (according the final design) |
| 9 | Roller Material | 45# forge steel, coated with chrome |
| 10 | Shaft Material and DIA | ￠56mm, material is 45# forge steel |
| 11 | Post cutting | Hydraulic cutting and punching at the same time after forming |
| 12 | Maim Motor Power | 7.5kw |
| 13 | Hydraulic Station Power | 3kw |
| 14 | Hydraulic Pressure | 10-12Mpa adjustable |
| 15 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
| 16 | Structure Of The Stations | Wall panel |
| 17 | Tolerance | 3m+-1.5mm |
| 18 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 19 | Way Of Drive | By chain |
| 20 | Color Of The Machine | Yellow and blue |
| 21 | Size of the machine | L*W*H about 6.0m*1m*1.2m |
| 22 | Container Need | 1x20 feet |
Main Features
1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
