| Product Name: | Door Frame Roll Forming Machine | Usage: | Door Application |
|---|---|---|---|
| Steel Thickness: | 0.8-1.2mm | Decoiler: | Manual |
| Power: | 7.5KW+7.5KW | Station: | 17 Stations |
| Drive: | 1.2 Inch Chain | Container Need: | 1X40GP |
| High Light: | Door Frame Making Machine,Cold Roll Forming Machine |
||

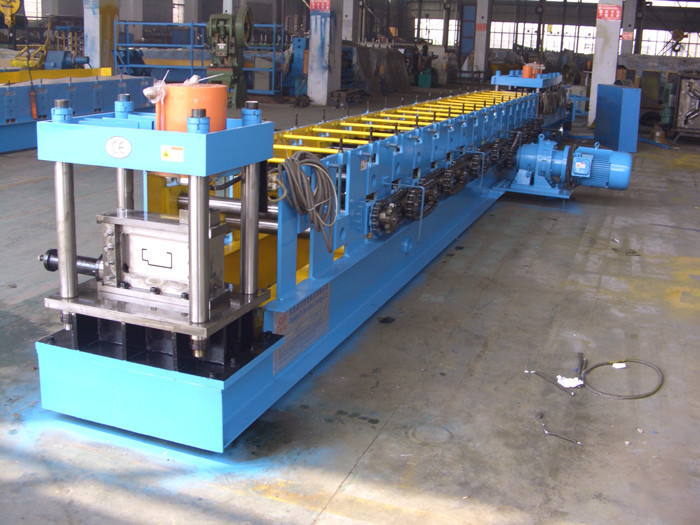

Door Frame Roll Forming Machine
Profile:
All of our machine profile is customized, below profile is only for your reference.
1. Coil width: according the profile
2. Effective width: according the profile
3. Thickness: 0.8-1.2mm
Layout:
Manual de-coiler—Feeding—Leveling—Roll Forming—Correction—Cutting—Out table
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine |
Door frame
|
| 2 | Coil width | According the profile |
| 3 | How to change the size | By changing the spacer |
| 4 | Rolling Speed | 12-15m/min(not include cutting & punching time) |
| 5 | Rolling Thickness | 0.8-1.2mm GI |
| 6 | Control System | PLC (Panasonic) as list in the note |
| 7 | Un Coiler | 3T manual decoiler |
| 8 | Leveling | Three rollers over four |
| 9 | Punching | Three sets |
| 10 | Roller Stations | About 17 stations (according the final design) |
| 11 | Roller Material | 45# forge steel, coated with chrome |
| 12 | Shaft Material and DIA | ￠65mm, material is 45# forge steel |
| 13 | Post cutting | Hydraulic cutting after forming |
| 14 | Maim Motor Power | 7.5kw |
| 15 | Hydraulic Station Power | 7.5kw |
| 16 | Hydraulic Pressure | 12-16Mpa adjustable |
| 17 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
| 18 | Sturcture Of The Stations | Wall panel |
| 19 | Tolerance | 3m+-1.5mm |
| 20 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 21 | Way Of Drive | By chain |
| 22 | Color Of The Machine | Yellow and blue |
| 23 | Size of the machine | L*W*H about 9.0m*1m*1.2m |
| 24 | Container Need | 1x40 feet |
Main Features
1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
