Cassette Light Keel Roll Forming Machine 5 Sizes 2mm Thickness

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX60-150
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Detail Information
Product Name: Z Purlin Roll Forming Machine Power: 15kw+7.5kw
Size: 60-150 Steel Thickness: 0.8-2.0mm
Decoiler: Hydraulic Station: 19 Stations
Roller Material: Cr12 Drive: Chain
Container Need: 1X40GP Cassette: 5 Sets Of Cassette Parts
High Light:

Metal Roll Forming Machine


Z Purlin Roll Forming Machine

Product Description

Main specification


No Specification of the material



Suitable Material Carbon steel



Width of the raw material Based on the purlin sizes.
3 Thickness 0.8-2.0mm


1. Profile drawing:

Cassette Light Keel Roll Forming Machine 5 Sizes 2mm Thickness 0

Cassette Light Keel Roll Forming Machine 5 Sizes 2mm Thickness 1

Cassette Light Keel Roll Forming Machine 5 Sizes 2mm Thickness 2


The Chart of Process Flow


Hydraulic Un-coiler—Leveling — punching —Roll Forming—Cutting—out table



Specification of Components


No   Technical Specification & Remark

Hydraulic Un-coiler



  • Steel coil width: 550 mm;
  • Internal diameter of coil: variable, from 470 mm to 520 mm
  • Maximum coil weight: 5000 Kg;
  • Main motor power: 5.5KW
  • Hydraulic power: 4kw

Leveling part



  • Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
  • Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.



  • hydraulic pre-punching
  • material of the punching mold: Cr12

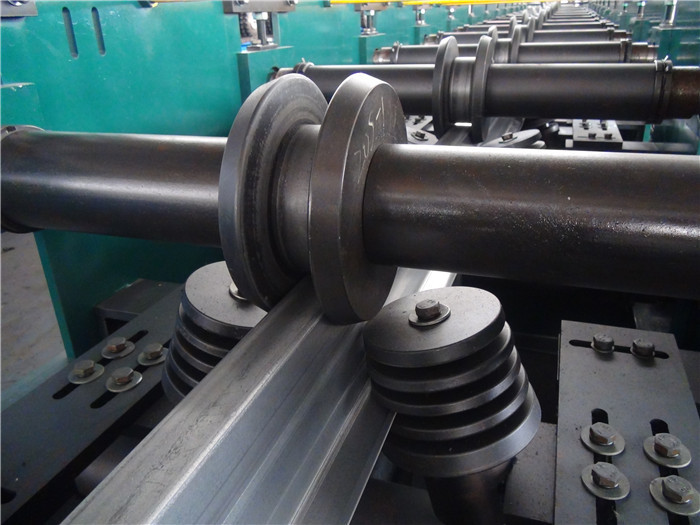

Main Roll Forming Machine



  • Roll station:19 stations
  • 5 sets of cassette design to change and get the different profiles.
  • Roller material:Cr12, 58-62,HRC hardness and chrome plated surface
  • Shaft diameter: ¢85mm material: SAE1045

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: wall board

Hydraulic cutting system



  • Machine adopt hydraulic post cutting system.
  • Cutting power by hydraulic, 7.5KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12 with heat treatment 58-60°
  • Tolerance of length: 3000mm+/- 1.5mm

Hydraulic System






  • Hydraulic power: 7.5kw
  • Solenoid valve: 2 groups
  • Hydraulic oil: 46# hydraulic oil




Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC brand: Panasonic

Out table



  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • One out table with three support roller
  • Quantity: 2 units



6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
