|Place of Origin:||China|
|Model Number:||2&3 Waves|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Suitable for ocean shipment|
|Delivery Time:||65 working days after received deposit|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||280 sets per year|
|Product Name:||Guard Rail Roll Forming Machine||Usage:||Highway Guardrail|
|Steel Thickness:||2.6-3.4mm||Decoiler:||15 Tons|
|Power:||45KW+30KW||Roller Material:||Gcr15 With Chrome Or Black Treatment|
|Station:||18 Stations||Drive:||Gear Box|
Guardrail Roll Forming Machine,
Highway Guardrail Forming Machine

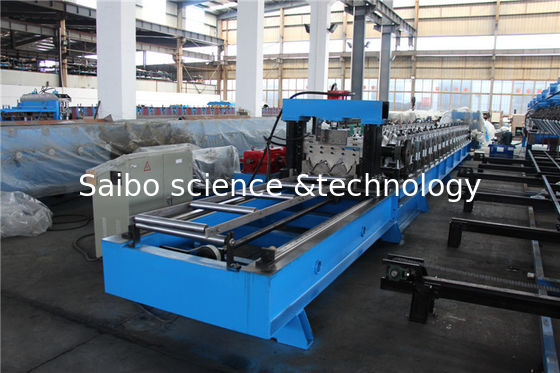

Two and Three Waves Guard Rail Roll Forming Machine
All of our machine profile is customized, above profile is only for your reference.
1. Coil width: 486mm/756mm
2. Effective width: according the profile
3. Thickness: 2.6-3.4mm
Hydraulic decoiler—Leveling—Punching—Roll Forming—Cutting—Out table
|1||Roll Forming Machine||
|4||Rolling Thickness||2.6-3.4 mm|
|5||Control System||PLC (Panasonic) as list in the note|
|6||Un Coiler||15 ton hydraulic de-coiler with coil car|
|7||Leveling Station||1 station (three rollers over four), 7.5kw|
|8||Servo feeding to punching||5.5kw|
|10||Roller Stations||18 stations (according the final design)|
coated with chrome
|12||Shaft Material and DIA||￠100mm, material is 45# forge steel|
|13||Maim Motor Power||45kw|
|14||Hydraulic Station Power||30kw|
|16||Cutting mode||Hydraulic track cutting by servo motor 5.5kw|
|17||Material Of Cutting||Cr12Mov quenching 58-62℃|
|18||Structure Of The Stations||Guide pillar|
380V, 50HZ,3 phase
According to customer’s require
|21||Way Of Drive||By gearbox|
|22||Color Of The Machine||Yellow and blue|
|23||Container Need||1 x40 feet & 1 x20 feet|
|24||How to change the profile||Change the last three roller stations which is in one cassette|
1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It is very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
