Hydraulic Kliplock Roll Forming Machine 0.3mm Thickness 25 Stations

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX39-320-960
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Kliplock Roll Forming Machine Power: 5.5KW+4kw
Steel Thickness: 0.3-0.8mm Size Of Purlin: YX39-320-960
Decoiler: 45# Forge Steel, Surface With Chrome Station: About 25 Stations
Productivity: 0-15m/min Color: Bule And Yellow
High Light:

Hydraulic Kliplock roll forming machine


0.3mm roll forming machine

Product Description

Kliplock roll forming machine


1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material1220 mm
3 Thickness 0.3-0.8mm


2. Machine Detailed Parameters


Roll Forming Machine



Machine structure


Wall board structure
3 Total power

Motor power-5.5kw

Hydraulic power-4kw


Roller stations


About 25 stations




Drive system


By chain,1.0 inch

Diameter of shaft


¢70mm solid shaft



380V 50Hz 3phases (Customized)

Color Of The Machine


Bule and yellow

Deliver time


70 days

Terms Of Payment


30%T/T 70% pay before shipment


3. Profile drawing

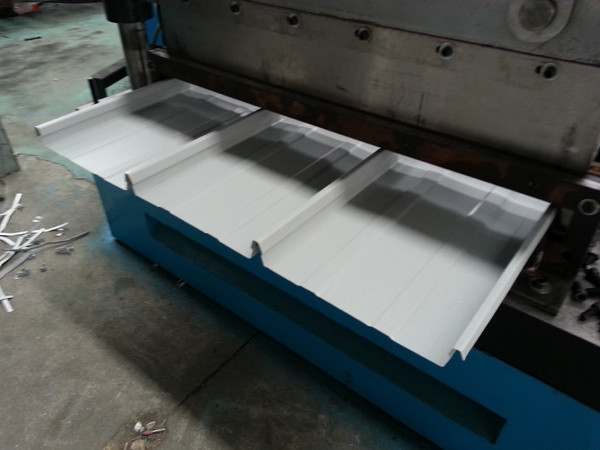

Hydraulic Kliplock Roll Forming Machine 0.3mm Thickness 25 Stations 0


4. The Chart of Process Flow


Hydraulic Uncoiler—Roll Forming—Cutting—Out table

Hydraulic Kliplock Roll Forming Machine 0.3mm Thickness 25 Stations 1



5. Specification of Components


(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Working speed: 0--20m/min adjustable
  • Main motor power: 5.5KW AC motor
  • Hydraulic power: 4kw

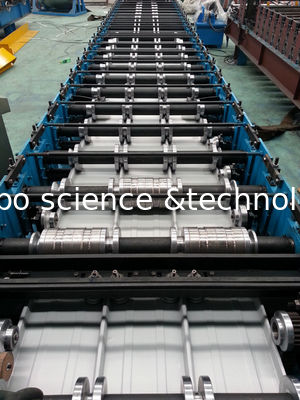

(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall board


(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
