Laser Welded Pipe Roll Forming Machine 400mm PLC Touch Screen Control

Dongguang Hengfu Roll Forming Machine Co., Ltd. is a leading provider of professional roll forming and pipe production equipment. Our laser welded pipe machine is a fully integrated, high‑efficiency solution built for continuous industrial production. With robust construction, precise forming, and stable laser welding, this machine delivers consistent, high‑quality pipe products and long‑term reliable performance. It is widely trusted by manufacturers for its excellent durability, low maintenance, and outstanding cost efficiency.

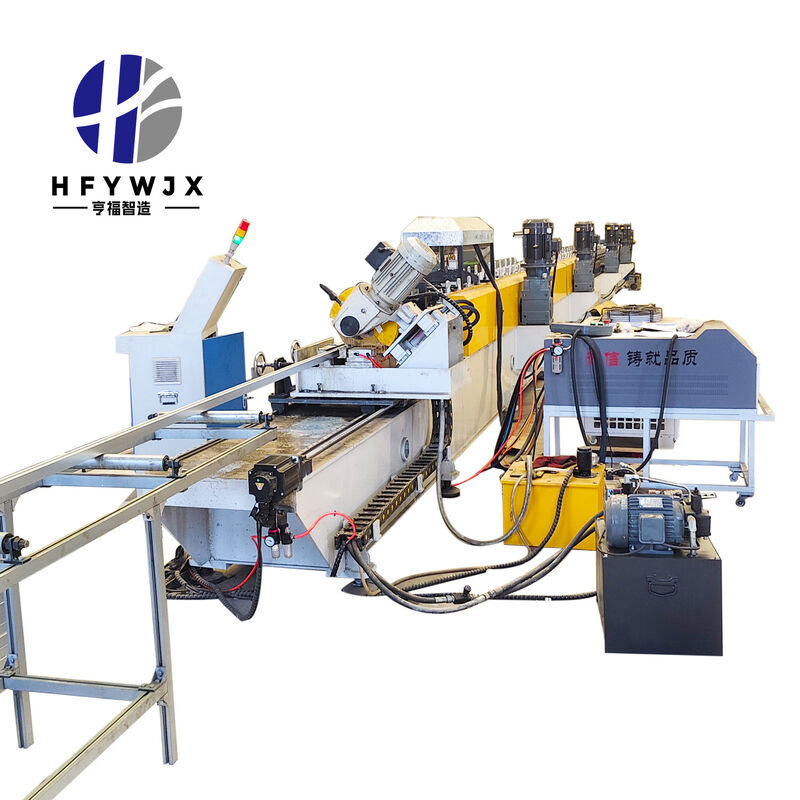

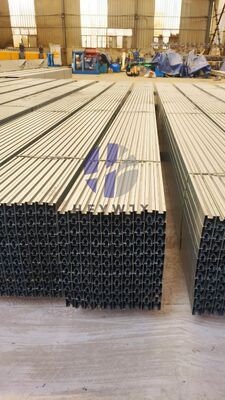

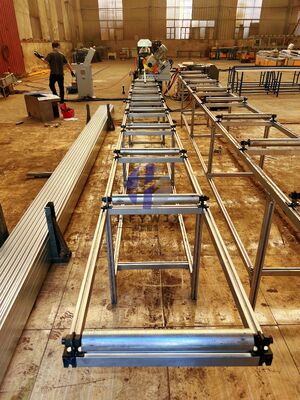

This machine supports a complete and optimized production flow: decoiling, roll forming, laser welding, straightening, and non‑stop cutting. Specially designed for 0.6mm galvanized steel, it ensures stable material feeding, uniform forming, and smooth, firm welding. The well‑engineered process reduces material waste and ensures every pipe meets strict dimensional accuracy, straightness, and surface finish requirements.

The uncoiler uses a heavy‑duty integrated tension structure with 2.0 tons loading capacity, supporting a maximum strip width of 400mm and Φ500 coil inner diameter. The Φ80 high‑rigidity spindle and manual tensioning system provide stable and smooth uncoiling, ensuring consistent material feeding for high‑precision forming and welding.

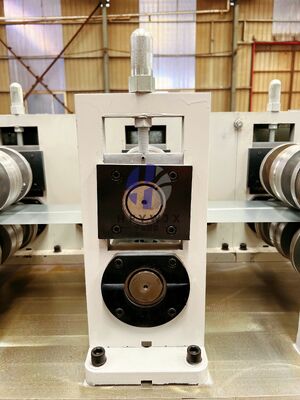

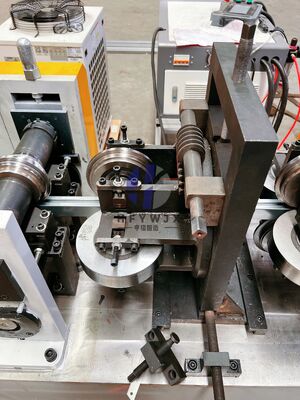

The main forming unit features a 30mm thick gantry frame processed by CNC milling for exceptional rigidity and stability. It includes 55 forming stations with Cr12 mould steel rollers (HRC55-58) and Φ60 high‑strength 45# steel shafts. Driven by four 5.5KW motors and equipped with Harbin bearings, the machine runs smoothly with low noise and extended service life. Production speed is adjustable from 1-15m/min via PLC and inverter control.

Equipped with a 3KW high‑end laser welding system and intelligent PLC touch screen control, this machine ensures stable welding quality and simple operation. Every part is carefully selected and strictly assembled by Dongguang Hengfu Roll Forming Machine Co., Ltd. to ensure high reliability and long service life.
