Automatic Square Tube Roll Forming Machine 1–15 M/Min For Stainless Steel Tubing Production

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Dimension:

Approx. 25 M × 1.5 M × 1.5 M

Control System:

PLC + Touch Screen

Laser Welder:

3 KW High Configuration

Speed:

1–15 M/min (PLC Inverter Adjustable)

Roller Material:

Cr12 Mould Steel, HRC55–58

Forming Stands:

55 Stations

Material:

Galvanized Steel, 0.6 Mm Thickness

Transmission:

Motor + Reducer + Gearbox

Roller Shaft:

45# Steel, Φ60 Mm

Forming Frame Structure:

30 Mm Thick Gantry Type, CNC Machined

Main Shaft Of Uncoiler:

Φ80 Mm

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

automatic square tube roll forming machine

automatic square tube forming machine

15 m/min square tube forming machine

Product Description

High Tech Fiber Laser Welded Pipe Machine - Efficient Automatic Stainless Steel Tubing Mill

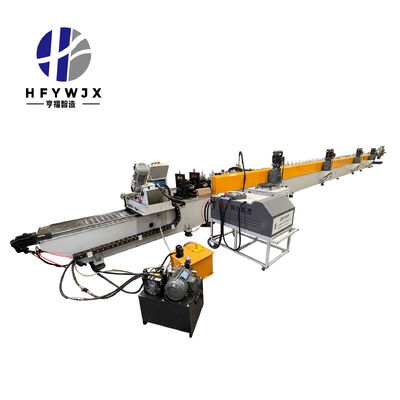

Dongguang Hengfu Roll Forming Machine Co., Ltd. is a professional and reliable manufacturer dedicated to developing high-end roll forming and pipe making equipment. Our laser welded pipe production line is a fully automatic integrated system that combines precision roll forming, high-speed laser welding, straightening and non-stop cutting. With excellent structural design and strict manufacturing standards, this machine provides stable performance, high efficiency and long service life, making it the first choice for customers engaged in high-quality metal pipe production.

This production line is specially designed for 0.6mm galvanized steel coils, with a complete and optimized process flow including uncoiling, forming, laser welding, straightening and fixed-length cutting. The whole production process runs smoothly and stably, effectively avoiding material deformation and surface damage, and ensuring that each pipe has accurate dimensions, good straightness and beautiful welding seams to meet the high requirements of various industrial applications.

Key Components & Features

Uncoiling System: The uncoiling part adopts an integrated tension structure with strong stability, supporting 2.0 tons coil load, 400mm maximum width and Φ500 inner diameter. The Φ80 spindle with high rigidity ensures stable and smooth uncoiling, providing a reliable feeding guarantee for the subsequent forming and welding process.

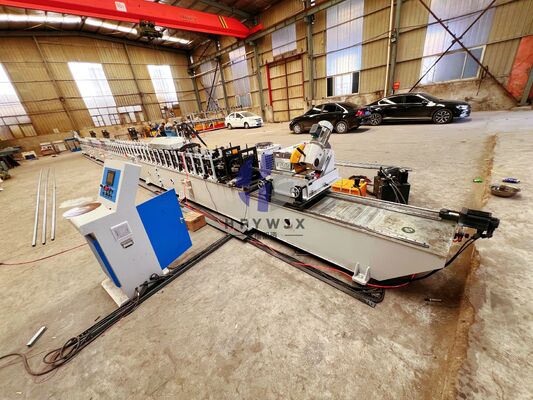

Forming Machine: The main forming machine is built with a 30mm thick gantry frame processed by CNC milling machine, featuring 55 forming stations. The rollers are made of Cr12 mould steel with hardness HRC55-58, and the shafts are Φ60 45# high-strength steel. Equipped with 4 sets of 5.5KW motors and Harbin bearings, the machine runs stably with low noise.

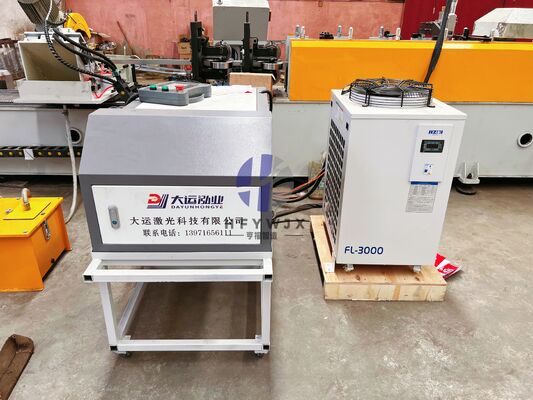

Control & Welding: The PLC intelligent control system supports adjustable production speed from 1 to 15m/min, which is flexible and efficient. Equipped with a 3KW high-configuration laser welding system and touch screen control, the equipment ensures stable welding quality and simple operation.

Every component is carefully selected and strictly inspected by Dongguang Hengfu Roll Forming Machine Co., Ltd., which greatly reduces the failure rate and maintenance cost. This laser welded pipe production line is a cost-effective, high-performance and trustworthy solution for modern pipe manufacturing.

Technical Specifications

Material	Galvanized steel, 0.6 mm thickness
Process Flow	Decoiling → Forming → Welding → Straightening → Non-stop cutting
Uncoiler	Manual tension; 2.0 tons load capacity; max width 400 mm; inner diameter Φ500
Forming Stands	55 stations
Roller Material	Cr12 mould steel, HRC55-58
Speed	1-15 m/min (PLC inverter adjustable)
Laser Welder	3 KW high configuration
Control System	PLC + touch screen
Dimension	approx. 25 m × 1.5 m × 1.5 m

Product Images

Frequently Asked Questions

There are no professional maintenance personnel available locally; what should we do in the long run?

We provide lifetime remote video guidance; most issues do not require on-site repair.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

Can the machine produce stainless steel sheets? What are the requirements for the equipment?

Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.

Can you provide semi-automatic or fully automatic receiving tables?

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.

What checks need to be performed before starting the machine?

Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
