High Precision 1020 Glazed Tile Roll Forming Machine With 16 Rows 4-6M/Min Forming Speed

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Glazed Steel

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof

Cutting Mode:

Cut After Forming, Double Linear Guide Rail Type Shearing

Transport Package:

Plastic Film & Steel Wire Fixed

Transmission Mode:

Gear Drive

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

1020 glazed tile roll forming machine

1020 glazed sheet roll forming machine

6m/min glazed tile roll forming machine

Product Description

High Precision Customizable 1020 Glazed Tile Roll Forming Machine

The 1020 Glazed Tile Roll Forming Machine is a high-performance, customized roof forming equipment designed for the production of high-quality glazed tile profiles. Engineered for durability and efficiency, this machine is ideal for manufacturing decorative roof panels for residential, commercial, and industrial buildings, delivering excellent forming accuracy and stable production performance.

This machine adopts a national standard 400H steel frame and 16mm thick wall plate, ensuring long-term structural stability under high-load operation. Equipped with 16 rows of forming rolls made of 45Cr quenched and tempered steel with precision turning and chrome plating, it achieves a forming speed of 4-6M/min. The Φ80mm solid spindle, 11Kw servo main motor, and gear drive system guarantee smooth transmission and consistent forming quality, with a processing thickness range of 0.3-0.5mm for color steel and galvanized plates.

The machine is equipped with an advanced Industrial Computer PLC frequency conversion control system, featuring a split touch screen, remote control, and alarm function, with a cutting length error of ≤1mm. The double linear guide rail shearing structure realizes post-forming cutting, ensuring burr-free edges and extremely low maintenance rate. The 11Kw air-cooled pump station and double hand rocking feeding rack with manual cutter further enhance operational convenience and production efficiency.

The 1020 Glazed Tile Roll Forming Machine stands out for its exceptional versatility, making it the top choice for a wide spectrum of roofing projects. Whether it is large-scale commercial complex construction, modern industrial factory buildings, residential villa communities, or renovation projects of old buildings, this machine delivers outstanding performance. It proficiently processes color steel plates and galvanized steel plates, enabling the production of elegant, durable, and weather-resistant glazed tiles that meet high-quality architectural standards.

Technical Specifications

Model NO	1020
Condition	New
Usage	Roof
Feeding Width	Feeding Width
Raw Material	Color steel plate, galvanized steel plate
Machine Frame	400H steel frame (national standard)
Number of Rolling Mill Sets	16 row molding
Spindle Diameter	Φ80mm (Solid shaft)
Type of Driven	Gear drive
Forming Speed	4-6M/min

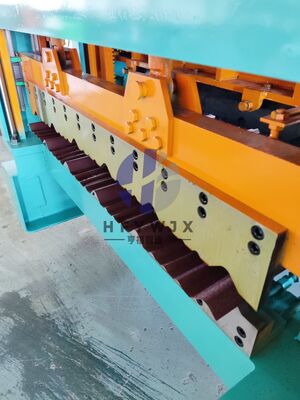

Cutting Mode	Cut after forming, double linear guide rail type shearing (no burr in shearing, extremely low maintenance rate)
Electric Control System	Industrial Computer PLC
Feeding Method	Double hand rocking feeding rack (with manual cutter)
Color	Customized

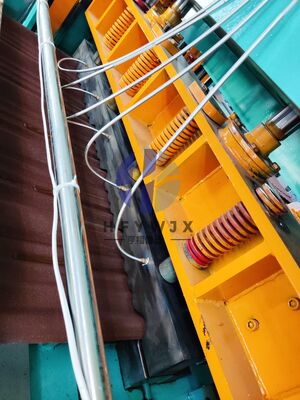

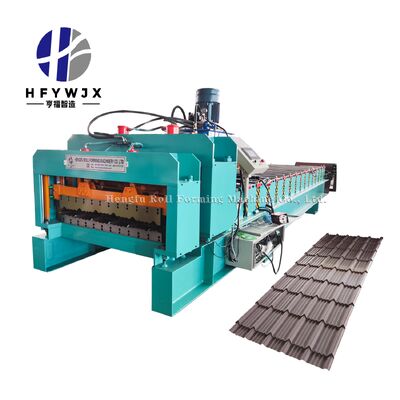

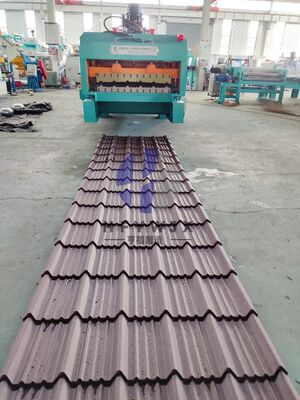

Product Images

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Is the length of the discharge rack adjustable?

Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
