| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

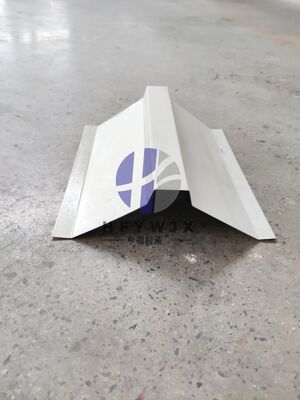

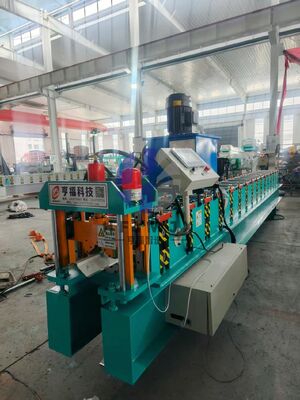

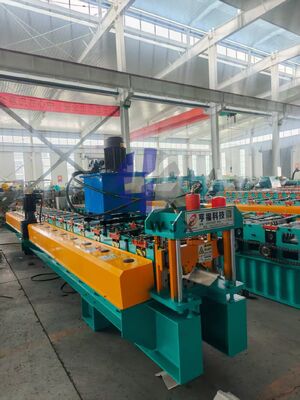

The 460 Ridge Cap Roll Forming Machine is a high-performance solution specifically designed for the production of metal roofing ridge caps. It is widely used in roofing sheet manufacturing industries and is suitable for producing various ridge tile profiles with high precision and consistency. With its advanced design and robust construction, this machine ensures stable operation and long-term reliability.
The machine is built with a heavy-duty steel frame and reinforced side plates, providing excellent rigidity and vibration resistance during high-speed production. The forming rollers are manufactured from high-grade 45# steel, processed with precision machining and finished with hard chrome coating to enhance wear resistance and extend service life.
| Component | Specification |
|---|---|
| Infeed Platform | Hand-cranked Feeding Stand (with Cutting Blade) |
| Frame Structure | Welded 350H Steel; Wall-plate Type Construction |
| Wall Plate Thickness | 14mm Carbon Steel Plate |
| Forming Stations | 14 Rows |
| Main Shaft Diameter | Ø70mm (Solid Shaft) |
| Shaft Material | #45 Steel |
| Roller Material | #45 Steel (Precision-turned, Chrome-plated, and Heat-treated) |
| Length Measurement | Rotary Counter (with Linear Slider Bracket) |
| External Voltage | 3-Phase 380V, 50Hz |
| Low-Voltage Electrical Components | Limit Switches, Contactors, Relays, etc. |
A: We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
A: We will complete production on time according to the confirmed lead time.
A: Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
A: The machine frame is thicker and will not deform even after prolonged use. The rollers feature high precision, ensuring a standard and consistent panel profile. The cutting system is stable, guaranteeing precise length accuracy. It boasts a low failure rate and low maintenance costs. It offers a significantly longer service life.
