| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

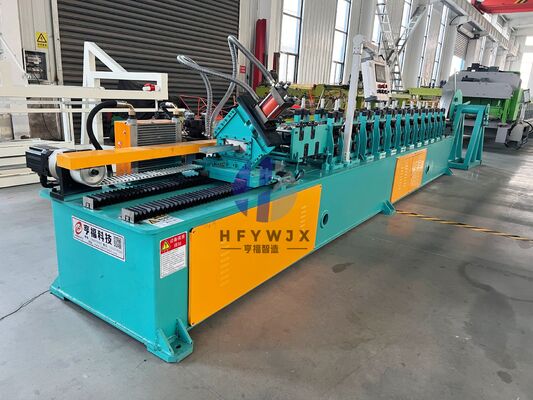

The 60-27 Light Steel Keel Roll Forming Machine is a specialized production equipment developed for construction and decoration applications, designed for efficient manufacturing of light steel keels.
The equipment features an integral welding structure of steel plates with 12 forming passes to ensure stable molding. The shaft is constructed from 40CR material, enhancing overall rigidity and load-bearing capacity for long-term stable operation.
Equipped with a gearbox transmission structure and 7.5kw motor, the machine delivers stable power output with adjustable production speeds ranging from 0-60m/min, enabling high-efficiency continuous production.
The PLC control system, combined with servo motor, slide rail and rack, provides ultra-precise cutting and positioning to meet the high-precision requirements of modern light steel keel production, ensuring product quality stability and consistency.
| Model NO | 60-27 Light Steel Keel Roll Forming Machine |
|---|---|
| Condition | New |
| The machine itself | Integral welding of steel plates |
| Number of molding passes | 12 |
| Shaft material | 40CR |
| Transmission structure | Gearbox transmission |
| Motor | 7.5kw |
| Production speed | 0-60m/min |
| Control system | PLC |
