| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |
The Roller Shutter Door Roll Forming Machine is a brand-new, high-performance production equipment specially designed for the door manufacturing and construction industries. It is engineered to efficiently and continuously produce high-quality roller shutter door profiles, delivering a reliable, automated solution for modern door production workshops.

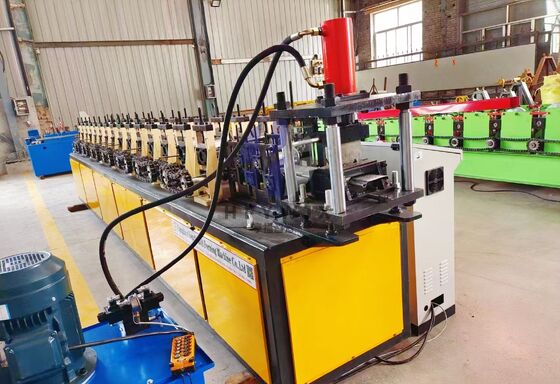

The machine features a heavy-duty frame constructed from 80*80 square tubes, paired with 15 forming passes for stable and continuous molding. Its wall plate is 16mm thick, and the main shafts are made of solid 45# steel with Φ50mm diameter, ensuring exceptional structural rigidity and long-term durability even under continuous high-intensity operation.
Equipped with a reliable gear transmission structure, the machine guarantees stable power output and smooth operation. It is powered by a 4KW main motor and a 4KW hydraulic pump station with air cooling, supporting a steady production speed of 15-16m/min, which effectively boosts production efficiency and shortens manufacturing cycles.

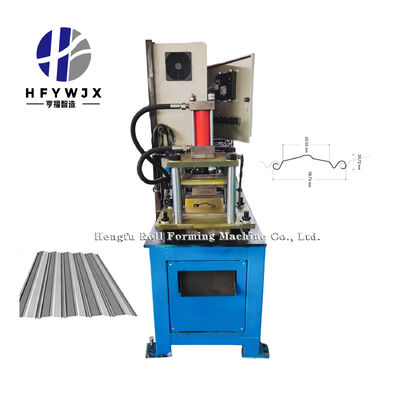

Adopting a post-forming double-blade shearing method, the machine achieves burr-free cutting with low maintenance costs. It is controlled by an industrial-grade Delta PLC and frequency conversion system, ensuring ultra-precise processing with a cutting length tolerance of ≤1mm, fully meeting the high-accuracy requirements of roller shutter door production.
The machine is equipped with 35mm galvanized pull rods and a Type 4 cycloidal reducer, further enhancing operational stability. It supports Chinese and Russian operation languages, making it easy to operate for global users, while the solid structure ensures consistent performance and long service life.
| Model NO | Roller Shutter Door Roll Forming Machine |
|---|---|
| Condition | New |
| The machine itself | 80*80 square tube heavy frame |
| Number of molding passes | 15 |
| Shaft material | 45# steel (solid shaft, Φ50mm) |
| Transmission structure | Gear transmission |
| Frame thickness | 16mm wall plate |
| Hydraulic pump station | 4kw (with air cooling) |
| Cutting section motor | 4kw main motor |
| Production speed | 15-16m/min |
| Control system | Industrial PLC + frequency control (Delta brand) |
| Cutting method | Post-forming double-blade shearing |
| Pull rod | 35mm galvanized |
| Reducer | Type 4 cycloidal series |
| Operation language | Chinese, Russian |
