| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

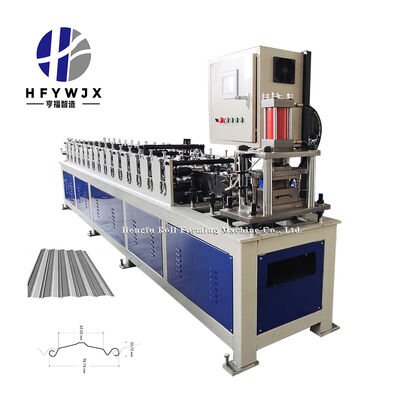

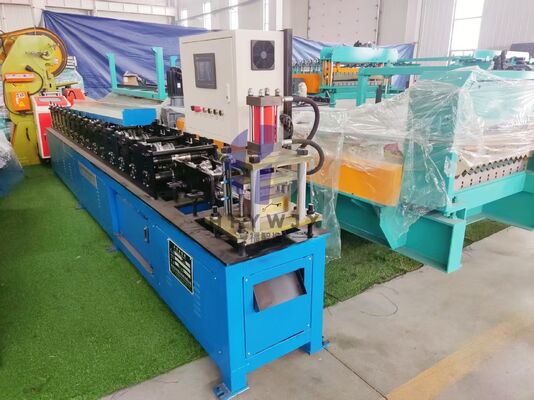

Introducing our high-performance Roller Shutter Door Roll Forming Machine, the ultimate solution for professional door manufacturers and construction projects. This fully automated equipment is built to streamline the production of premium roller shutter door profiles, helping you enhance productivity and gain a competitive edge in the market.
Our machine boasts an 80*80 square tube heavy-duty frame and 15 precision-forming passes, ensuring consistent molding quality. With 16mm thick wall plates and Φ50mm solid 45# steel main shafts, it delivers exceptional strength and durability, capable of withstanding long-term heavy-duty operation without performance degradation.
Powered by a 4KW main motor and a 4KW air-cooled hydraulic pump station, the machine adopts a reliable gear transmission system to ensure stable and smooth operation. Its adjustable production speed of 15-16m/min maximizes output, while the efficient power configuration reduces energy consumption and production costs.
Equipped with a top-tier Delta PLC control system and frequency conversion technology, the machine offers ultra-precise control over the entire production process. The post-forming double-blade shearing design guarantees burr-free cuts with minimal maintenance, achieving a cutting length tolerance of ≤1mm to meet strict quality standards.
The inclusion of 35mm galvanized pull rods and a Type 4 cycloidal reducer ensures stable and reliable operation. Supporting Chinese and Russian operation languages, it caters to the needs of international customers, while its robust construction ensures long-term service life and consistent performance for years to come.
| Model NO | Roller Shutter Door Roll Forming Machine |
|---|---|
| Condition | New |
| The machine itself | 80*80 square tube heavy frame |
| Number of molding passes | 15 |
| Shaft material | 45# steel (solid shaft, Φ50mm) |
| Transmission structure | Gear transmission |
| Frame thickness | 16mm wall plate |
| Hydraulic pump station | 4kw (with air cooling) |
| Cutting section motor | 4kw main motor |
| Production speed | 15-16m/min |
| Control system | Industrial PLC + frequency control (Delta brand) |
| Cutting method | Post-forming double-blade shearing |
| Pull rod | 35mm galvanized |
| Reducer | Type 4 cycloidal series |
| Operation language | Chinese, Russian |
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
The entire machine comes with a 12-month warranty, excluding wear parts.
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
