PLC Intelligent Trapezoidal Roll Forming Machine 40m/Min with 23 Stations

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO.:

Certification:

CE, SGS

Customized:

Customized

Transmission Method:

Electric

Condition:

Electronic Control System:

Specification:

11000mmx1300mmx1400mm

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

intelligent trapezoidal roll forming machine

trapezoidal roll forming machine 40m/min

plc trapezoidal sheet roll forming machine

Product Description

Trapezoidal Roll Forming Machine with Intelligent Control System

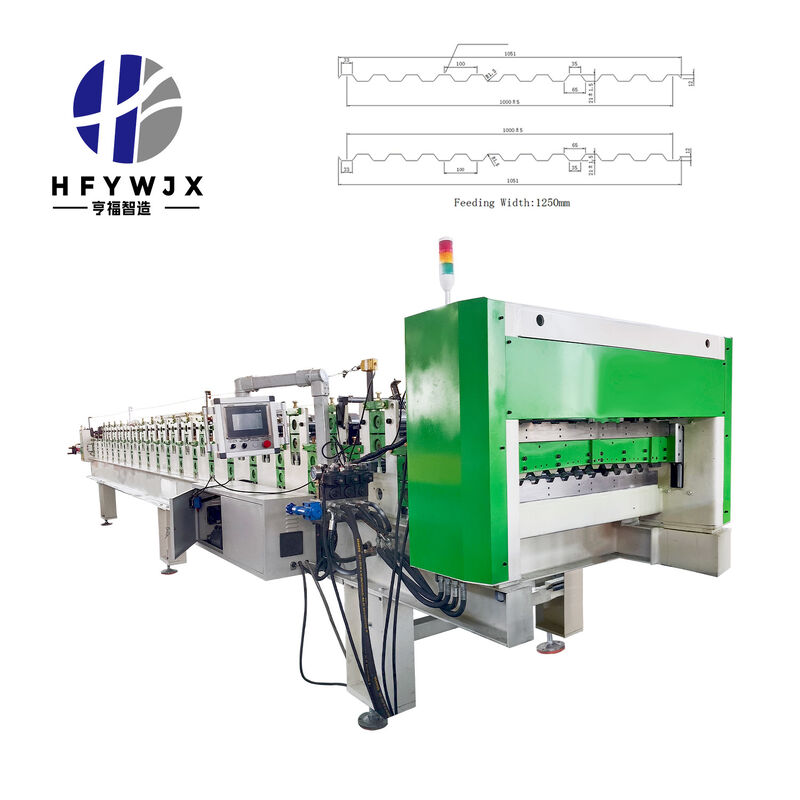

The Hengfu C21 Trapezoidal Roll Forming Machine is a highly efficient solution designed for producing metal roofing sheets with precise trapezoidal profiles. It is suitable for processing color steel, galvanized steel, and similar materials, offering excellent forming consistency and surface quality. With a standard feeding width of 1250mm, the machine ensures optimal material utilization while delivering uniform and high-strength roofing panels for industrial and commercial applications.

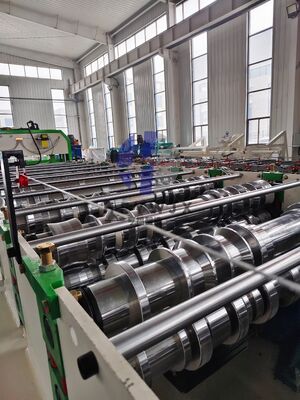

This machine is built with a strong 350H steel frame and equipped with 23 forming stations, providing outstanding rigidity and stability during operation. The Φ80mm solid shaft combined with high-quality roller materials enhances durability and guarantees smooth, accurate forming. Its robust structure allows continuous production while maintaining tight tolerances, ensuring every finished sheet meets strict industry standards.

In terms of performance, the production speed can reach up to 40 meters per minute, significantly improving manufacturing efficiency. The machine adopts a PLC intelligent control system, allowing operators to easily set parameters and monitor the production process. The user-friendly interface and automated workflow reduce labor intensity while ensuring stable and reliable operation throughout the entire forming process.

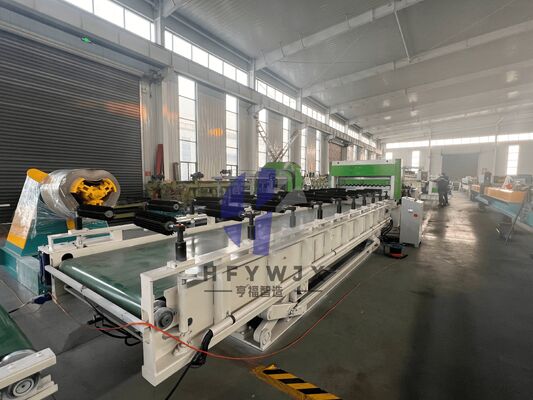

The cutting system features advanced servo electric shearing with double linear guides, enabling precise, burr-free cutting after forming. This ensures clean edges and consistent product lengths, enhancing the overall quality of the finished roofing sheets. The integrated production line—from feeding to forming and cutting—creates a seamless and efficient workflow suitable for large-scale production.

Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this equipment reflects strong technical expertise and reliable manufacturing standards. The company is known for its advanced design capabilities, high precision production, and comprehensive after-sales service. With advantages such as high efficiency, low material waste, and long service life, this trapezoidal roll forming machine is a professional and dependable choice for customers seeking to enhance productivity and product quality in the metal roofing industry.

Technical Specifications

Model NO	C21
Condition	New
Usage	Roof
Feeding Width	1250mm
Machine Frame	350H steel frame
Forming Speed	0-40M/min
Color	Customized
Type of Driven	Chain drive
Transmission Method	Electric
Number of rolling mill sets	23 row molding
Spindle diameter	Φ80mm (Solid shaft)
Customized	Customized
Feeding method	Double hand rocking feeding rack (with pressure roller)
Specification	11000mm x 1300mm x 1400mm
Origin	Cangzhou, Hebei
Warranty	1 year

Frequently Asked Questions

Q: Can you finish the machine during the delivery time?

A: We will complete production on time according to the confirmed lead time.

Q: Do you have after-sale support?

A: Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Q: Any other service?

A: We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.

Q: Are you a manufacturer?

A: Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

Q: What's the delivery time?

A: Normally it takes about 45 days.
