High Output 310mm Width 14 Row Molding PLC Control Ridge Tile Machine for Roof Ridge Roll Forming

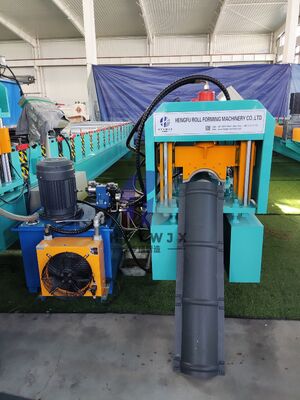

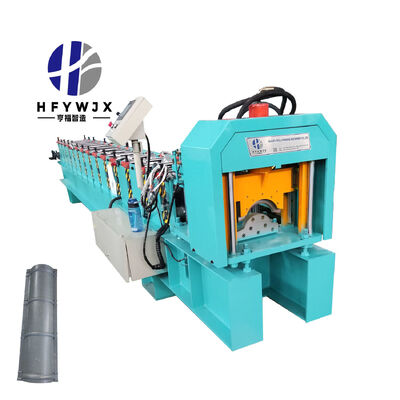

The 310 Ridge Tile Machine is specialized roll forming equipment designed for producing high-quality ridge tiles used at roof ridges to connect roof sections with different slopes. These ridge tiles serve a dual purpose: ensuring reliable waterproof drainage for buildings while enhancing the overall decorative appearance of the roof. This essential machinery for metal roofing system production is widely applied in residential, commercial, and industrial building projects.

This machine features a heavy-duty 350H steel frame that delivers exceptional structural rigidity and long-term operational stability, even under continuous high-intensity production. Equipped with 14 forming stations and a 70mm solid spindle design, it guarantees excellent molding effects, ensuring dimensional accuracy and shape stability for every ridge tile produced. The solid construction effectively prevents deformation during high-speed operation, maintaining consistent product quality throughout the production process.

Driven by a 1-inch chain transmission system, the 310 Ridge Tile Machine achieves production speeds of 0-8 meters per minute, delivering high production efficiency to meet large-scale manufacturing demands. It features a post-forming cutting mechanism with a four-column tie-rod guide column shear that ensures burr-free cutting, resulting in smooth, clean edges on finished ridge tiles. This cutting system also offers low maintenance requirements, reducing long-term operational costs.

The machine is controlled by an industrial computer PLC frequency conversion system, enabling fully automated and intelligent production. Operators can easily set production parameters, adjust production speed, and input cutting length directly through the touch screen, greatly simplifying equipment operation and reducing the learning curve for workers. This advanced control system ensures precise production, minimizes human error, and makes the machine suitable for both experienced and new operators in the metal forming industry.
