High Speed Continuous 300 Ridge Cap Roll Forming Machine with 18 Rows Forming Stations

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model:

300 Ridge Tile Machine

Customization:

Customization

Transmission Method:

1-Inch Chain Drive

External Voltage:

3-Phase 380V, 50Hz

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

300 ridge cap roll forming machine

continuous capping roll forming machine

continuous ridge cap roll forming machine

Product Description

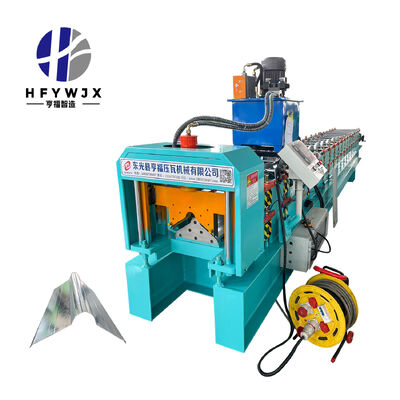

High Speed Continuous 300 Ridge Cap Roll Forming Machine

The 300 Ridge Cap Roll Forming Machine is a reliable and cost-effective equipment for manufacturing high-quality metal roofing ridge caps. Designed for automatic and continuous production, it is widely used in the construction industry and suitable for various roofing systems, helping manufacturers produce ridge caps that ensure waterproofing and decorative effects for roofs.

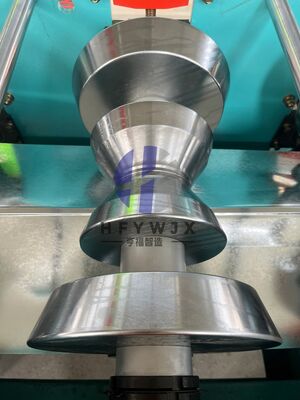

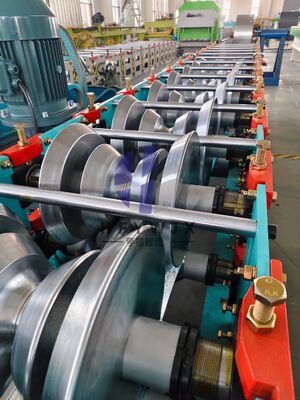

Built with a strong and stable steel frame, the machine guarantees smooth operation and excellent forming performance. The forming rollers are made of high-quality steel, processed with precision machining and surface treatment, which offers high wear resistance and a long service life. This ensures consistent and accurate ridge cap profiles throughout long production runs, maintaining stable product quality.

Equipped with an advanced PLC control system and a user-friendly touchscreen interface, the machine allows operators to easily set parameters such as cutting length, production quantity, and running speed. The automatic control system ensures stable performance and precise cutting, keeping the length tolerance within a minimal range, which helps reduce material waste and improve production efficiency.

With a production speed of up to 10-20 meters per minute, the machine significantly increases productivity while maintaining high product quality. The hydraulic cutting system provides clean and accurate cutting results, ensuring each finished ridge tile meets the required standards, with smooth edges and no burrs.

This 300 ridge cap roll forming machine is ideal for manufacturers looking to expand their roofing production capacity with a durable, easy-to-operate, and low-maintenance solution. It helps reduce labor costs, improve efficiency, and deliver consistent, high-quality products to the market, supporting business growth.

Technical Specifications

Feeding Platform	Dual-Hand Crank-Operated Feeding Stand (with Cutter)
Frame Structure	Welded 350H-Section Steel; Wall-Plate Type Construction
Wall Plate Thickness	14mm Carbon Steel Plate
Forming Stations	18 Rows
Main Shaft Diameter	Ø70mm (Solid Shaft)
Low-Voltage Electrical Components	Limit Switches, Contactors, Relays, etc.
External Voltage	3-Phase 380V, 50Hz
Length Tolerance	±1mm
Overall Dimensions (L x W x H)	Approx. 8000mm x 900mm x 1600mm

Product Gallery

Frequently Asked Questions

What types of profiles can you produce?

Trapezoidal roof panels, corrugated sheets, floor decking, C/Z-purlins, columns/beams, hoarding panels, standing seam roofing, etc. We can also customize products according to customer drawings.

Can the voltage be customized to meet our country's standards?

Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.

Can machines be customized according to our drawings?

Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.

What materials is this machine suitable for?

Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
