| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

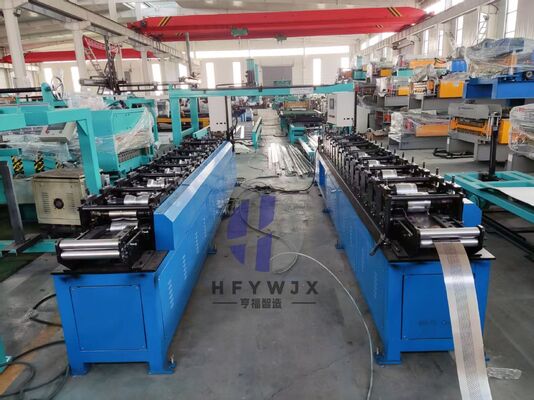

The Automatic Roller Shutter Door Production Line is a fully integrated system designed for efficient manufacturing of high-quality shutter slats. This comprehensive solution combines decoiling, roll forming, punching, and cutting processes into one continuous operation, ensuring stable performance and consistent product output.
Utilizing advanced roll forming technology, the machine produces precise and durable shutter slats from galvanized steel or aluminum coils. With optimized roller design and high-strength structure, the finished products feature excellent surface quality, uniform shape, and strong resistance to deformation, meeting international standards for roller shutter doors.
Equipped with a PLC control system and user-friendly touch screen interface, operators can easily set parameters such as length, quantity, and speed. The system ensures high automation, accurate cutting, and reliable operation, significantly improving efficiency while minimizing human error during production.

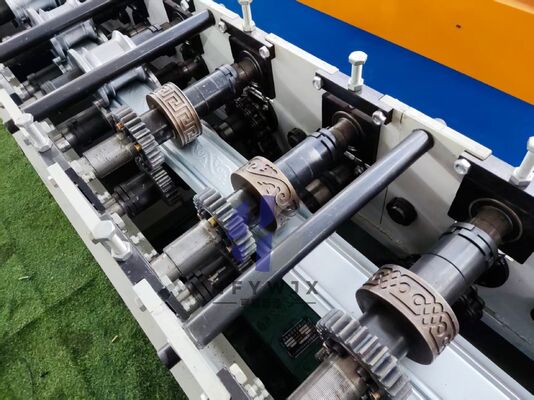

For enhanced functionality, the line can be customized with punching systems, embossing units, or double-layer configurations according to customer requirements. Hydraulic cutting ensures smooth edges and precise length control, while optional safety features guarantee secure operation in industrial environments.
This production line is widely used in manufacturing commercial and industrial roller shutter doors for warehouses, shops, garages, and factories. Its flexibility makes it suitable for producing different profiles and sizes, adapting to diverse market demands.
| Model Number | Roller Shutter Door Roll Forming Machine |
|---|---|
| Condition | New |
| Machine Frame | 80*80 square tube heavy frame |
| Number of Molding Passes | 15 |
| Shaft Material | 45# steel (solid shaft, Φ50mm) |
| Transmission Structure | Gear transmission |
| Frame Thickness | 16mm wall plate |
| Hydraulic Pump Station | 4kw (with air cooling) |
| Cutting Section Motor | 4kw main motor |
| Production Speed | 15-16m/min |
| Control System | Industrial PLC + frequency control (Delta brand) |
| Cutting Method | Post-forming double-blade shearing |
| Pull Rod | 35mm galvanized |
| Reducer | Type 4 cycloidal series |
| Operation Language | Chinese, Russian |
