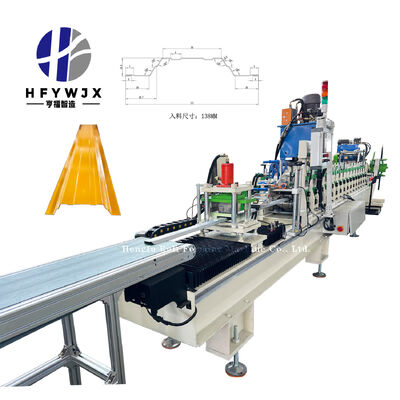

High Speed 20–23 m/min Automatic Fence Roll Forming Machine with 16 Rows of Forming Rollers and Non-stop Flying Shear

Manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd., this full-automatic fence panel forming production line integrates all processing procedures from raw material feeding, continuous roll forming, flying cutting, automatic labeling, conveying, film wrapping to finished product stacking. The whole line supports manual, automatic and reverse running modes, processing galvanized or color steel strips within common thickness range to produce standard 111mm wide fence profiles at stable production speed.

The metal fence panels produced by this production line are widely used for boundary enclosures in various scenarios:

• Residential communities & villas: As decorative isolation fences around courtyards, with neat appearance and anti-rust performance for long outdoor service life
• Industrial factories & logistics parks: Safety perimeter fences to isolate production areas, storage zones and public passages
• Roads, railways and scenic spots: Protective guardrails and landscape isolation barriers with good impact resistance
• Agricultural farms & breeding grounds: Partition fences to divide breeding areas and crop planting zones

The special multi-folded waveform structure of the finished panel enhances bending strength and anti-collision capacity, lightweight yet durable, greatly simplifying on-site assembly and lowering later maintenance costs for outdoor engineering projects.

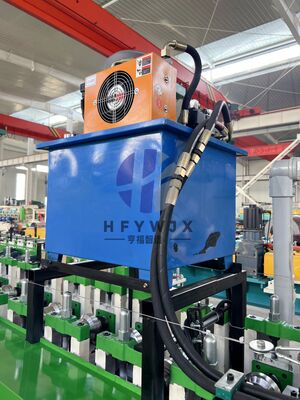

This production line is equipped with a full set of automated supporting units, including 1.5-ton hydraulic double-head decoiler, main forming host, non-stop flying shear, pneumatic positioning conveyor, double labeling machines, automatic film wrapping machine and 3-meter full-automatic stacker, realizing unmanned continuous production after parameter setting.

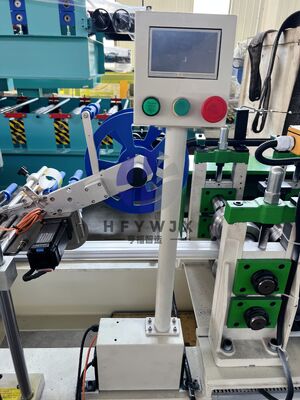

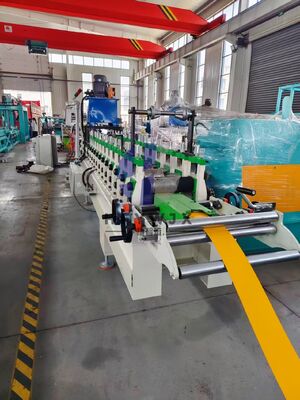

The main forming machine adopts heavy-duty 350H steel welded frame with thickened wall plates and anti-rust treatment after welding, equipped with multiple rows of precision chrome-plated forming rollers and solid thick main shafts, which can shape uniform fence waveforms without scratching the coating of steel sheets. It adopts chain stable transmission, matched with Delta PLC touch control system supporting Chinese, English and Russian multilingual operation, and is equipped with wireless remote controller and top three-color alarm light for real-time equipment status monitoring.

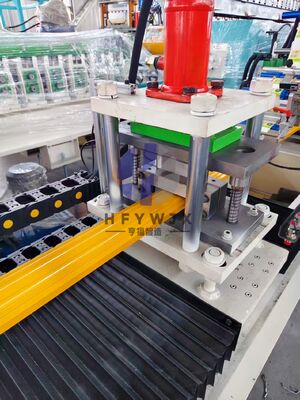

The core flying cutting device realizes cutting without machine halt, greatly boosting production efficiency and avoiding profile deformation during cutting; Cr12 hardened alloy cutting blades deliver burr-free smooth cutting surfaces with extremely low maintenance frequency. Protective accessories such as dust-proof organ covers and cable drag chains effectively extend the service life of internal moving parts. After cutting, the panels go through automatic labeling, film wrapping and stacking in sequence, replacing repetitive manual work and significantly improving workshop output.

Before delivery, the whole production line will undergo full linkage test run to verify the coordination of all supporting equipment. The whole line has a compact layout and convenient disassembly, suitable for container transportation for overseas customers. Whether you are newly building a metal fence processing factory or upgrading old single-function forming machines, this integrated full-automatic fence panel production line can greatly improve your production automation and product competitiveness.
