High Speed 20-25 m/min Fence Roll Forming Machine with 16 Rows Rollers and Non-stop Flying Shear Cutting

Detail Information

Product Description

Detail Information

Raw Material:

PPGI Color Coated Steel Coil

Processable Thickness:

0.3‑0.5mm

Feeding Width:

155mm

Finished Effective Width:

126mm

Production Speed:

20‑25 M/min

Forming Passes:

16 Rows Rollers

Cutting Mode:

Non‑stop Flying Shear

Length Tolerance:

±1mm

Power Supply:

380V 50Hz Three‑phase

Total Machine Weight:

2.2 T

Highlight:

20-25 m/min Production Speed Fence Roll Forming Machine

16 Rows Rollers Metal Profiling Equipment

Non-stop Flying Shear Cutting Panel Roll Forming Machine

Product Description

High Speed Curved Top Fence Panel Roll Forming Machine Automatic Safe Round Edge Metal Profiling Equipment

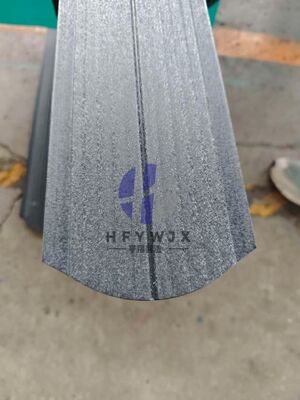

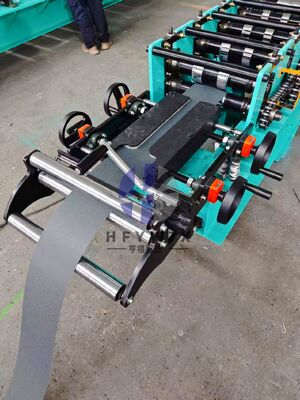

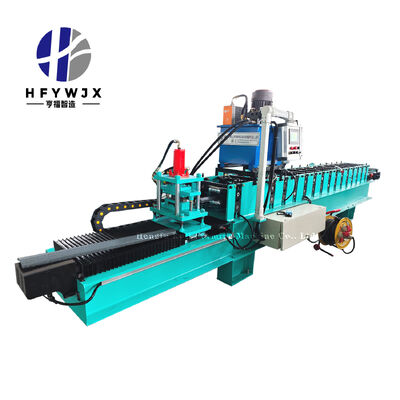

From Dongguang Hengfu Roll Forming Machinery Co., Ltd., this 126 semi‑arc fence roll forming machine is high‑speed automatic cold forming equipment for manufacturing semi‑arc metal fence panels. Raw color‑coated steel coils go through feeding, guiding, progressive roll forming and non‑stop flying shear cutting within one machine. It supports continuous high‑speed output to satisfy large‑batch production demands for fence manufacturers.

Applications of Finished Fence Panels

The semi‑arc metal fence panels produced by this machine feature smooth curved appearance and reliable mechanical strength. They serve multiple applications:

Decorative boundary fences for villas, private courtyards and residential communities to ensure privacy and beautify surroundings
Perimeter security barriers for industrial plants and storage yards to divide different functional zones
Ideal for scenic spot isolation and zone separation for farms and orchards

Thanks to its unique semi‑arc cross‑section, the fence panel delivers decent stiffness and impact resistance. The pre‑painted surface provides good anti‑corrosion performance for long‑term outdoor service. Modular installation on site is quick and easy without complex welding work, lowering labor cost and reducing later maintenance work for engineering contractors.

Machine Highlights

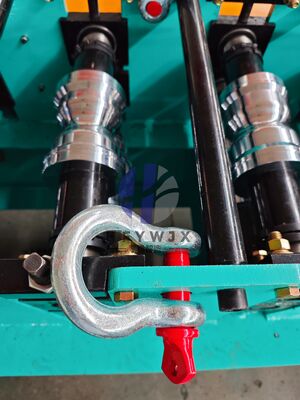

The machine adopts heavy‑duty 350H steel welded frame with anti‑rust treatment after welding and thick carbon‑steel wall plates. 16 groups of chrome‑plated forming rollers and solid main shafts are driven by stable chain transmission. It can run steadily for long continuous production hours and keeps the original coating of steel strips intact without scratches.

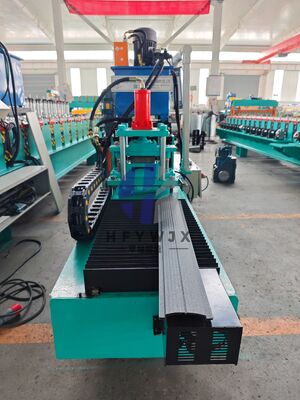

The non‑stop flying shear cuts profiles while the machine keeps running, boosting production efficiency and preventing panel deformation. Hardened Cr12 cutting blades produce clean burr‑free edges with low maintenance frequency. Cantilever split PLC touch screen supports Chinese and English operation. It is equipped with rotary length counter, wireless remote controller and alarm device for easy operation and real‑time fault warning. Every machine completes full trial‑run inspection before shipment.

Compact overall size makes container loading convenient for overseas delivery. Whether you are expanding existing product lines or starting new fence‑profile manufacturing, this stable‑performance fence roll forming machine is a trustworthy investment for your workshop.

Technical Specifications

Item	Specification
Equipment Name	Fence roll forming machine (126 Semi‑arc)
Raw Material	PPGI color coated steel coil
Processable Thickness	0.3‑0.5mm
Feeding Width	155mm
Finished Effective Width	126mm
Production Speed	20‑25 m/min
Forming Passes	16 rows rollers
Cutting Mode	Non‑stop flying shear
Control System	Cantilever split PLC touch screen, Chinese & English
Length Tolerance	±1mm
Power Supply	380V 50Hz three‑phase
Total Machine Weight	2.2 T

Frequently Asked Questions

Q: Can machines be customized according to our drawings?

A: Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.

Q: What materials is this machine suitable for?

A: Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.

Q: What is the structure of the machine frame?

A: It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.

Q: How can issues such as skewed or off-center sheet feeding be resolved?

A: The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.

Q: Is the electrical system susceptible to moisture damage?

A: The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
