High Precision Non-stop Flying Shear Fence Roll Forming Machine with 16 Rows Rollers and 20-25 m/min Speed

Detail Information
Product Description
Detail Information
Raw Material:
PPGI Color Coated Steel Coil
Machinable Thickness:
0.3‑0.5mm
Input Feeding Width:
155mm
Finished Effective Width:
126mm
Forming Speed:
20‑25 M/min
Forming Passes:
16 Rows Rollers
Cutting Style:
Non‑stop Flying Shear
Length Deviation:
±1mm
Power Condition:
380V 50Hz Three‑phase
Total Machine Weight:
2.2 T
Highlight:

Non-stop flying shear Fence Roll Forming Machine

,

16 rows rollers Metal Palisade Profiling Equipment

,

20-25 m/min Fence Panel Roll Forming Machine

Product Description

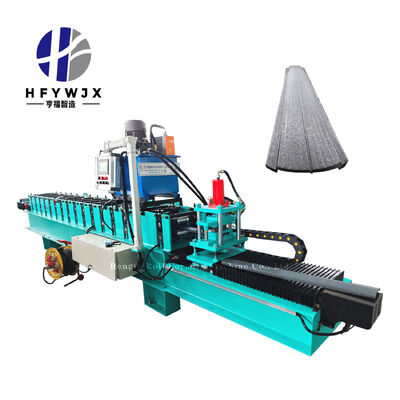

Durable Steel Fence Sheet Roll Forming Machine High Precision Non-Scratch Metal Palisade Profiling Equipment
Produced by Dongguang Hengfu Roll Forming Machinery Co., Ltd., this 126 semi‑arc fence roll forming machine is a compact automatic production unit dedicated to manufacturing metal fence profiles. The equipment carries out the whole manufacturing process: coil feeding, material guiding, continuous roll forming and non‑stop flying shear cutting. It works with standard color‑coated steel coils and can run at high adjustable speed to satisfy large‑batch production requirements.
Applications of Finished Fence Profiles
The semi‑arc fence panels produced by this machine are widely‑used outdoor metal fencing materials, balancing aesthetic appearance and practical structural performance.
  • Private villas, home courtyards and residential districts use these panels as decorative boundary fences to ensure privacy and beautify the surrounding environment
  • Factories and industrial parks install them as perimeter safety fences to isolate production areas and storage yards
  • Suitable for scenic spot isolation protection, as well as area partitioning for farms and orchards
Featuring unique semi‑arc cross‑section, the finished fence owns good stiffness and anti‑impact capacity. The color‑coated surface delivers excellent rust resistance for long‑time outdoor use. On‑site assembly is fast and simple, which cuts project installation hours and reduces subsequent maintenance workload, gaining wide recognition from fence fabricators and construction contractors.
Key Equipment Features
  • Built with heavy‑duty 350H welded steel frame with anti‑rust treatment after welding, paired with thick carbon steel wall plates
  • Sixteen sets of chrome‑plated forming rollers and solid main shafts driven by chain transmission
  • Enables stable long‑hour continuous operation while keeping the steel surface coating intact without scratches
  • Non‑stop flying shear core cutting configuration raises output and prevents profile deformation
  • Hardened Cr12 steel cutting blades achieve clean, burr‑free cuts with minimal routine upkeep
  • Cantilever split PLC touch screen supports Chinese and English languages
  • Equipped with rotary length counter, wireless remote control and alarm device
  • Simple operation and real‑time equipment status monitoring
  • Each machine fully trial‑tested in‑house before delivery
  • Compact overall dimensions make container loading convenient for overseas transportation
If you plan to add new fence product lines or start metal fence manufacturing business, this stable‑performing fence roll forming machine is a trustworthy production solution.
Technical Specifications
Item Specification
Equipment Name Fence roll forming machine (126 Semi‑arc)
Raw Material PPGI color coated steel coil
Machinable Thickness 0.3‑0.5mm
Input Feeding Width 155mm
Finished Effective Width 126mm
Forming Speed 20‑25 m/min
Forming Passes 16 rows rollers
Cutting Style Non‑stop flying shear
Control System Cantilever split PLC touch screen, Chinese & English
Length Deviation ±1mm
Power Condition 380V 50Hz three‑phase
Total Machine Weight 2.2 T
Product Images

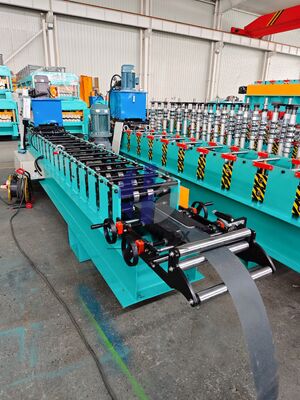

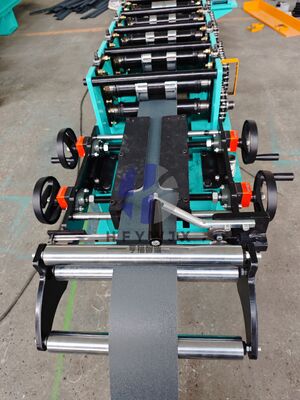

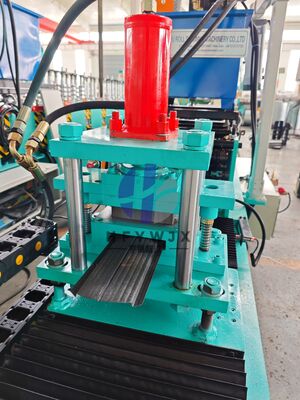

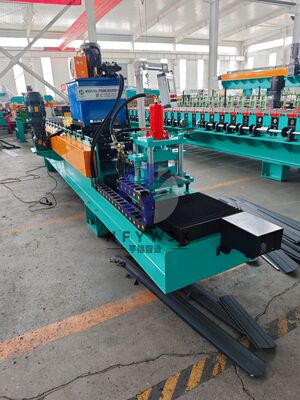

Durable Steel Fence Sheet Roll Forming Machine production view Close-up view of fence roll forming machine components Fence roll forming machine operational demonstration
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Factory overview of roll forming machine manufacturing facility
