Fully Automatic Fence Roll Forming Machine with 16 Rows Rollers Non-Stop Flying Shear and 20-23 m/min Production Speed

Detail Information

Product Description

Detail Information

Raw Material:

Galvanized Steel / PPGI Color Coated Steel Coil

Processable Thickness:

0.3‑0.6mm

Feeding Width:

138mm

Finished Panel Width:

111mm

Production Speed:

20‑23 M/min

Forming Stations:

16 Rows Rollers

Cutting Mode:

Non‑stop Flying Shear

Length Tolerance:

±2mm

Complete Auxiliaries:

1.5t Decoiler, Labeling Device, Conveyor, Automatic Stacker

Power Supply:

380V 50Hz Three‑phase

Total Machine Weight:

About 8000kg

Highlight:

16 Rows Rollers Fence Roll Forming Machine

Non-Stop Flying Shear Palisade Roll Forming Machine

20-23 m/min Production Speed Fence Panel Roll Forming Machine

Product Description

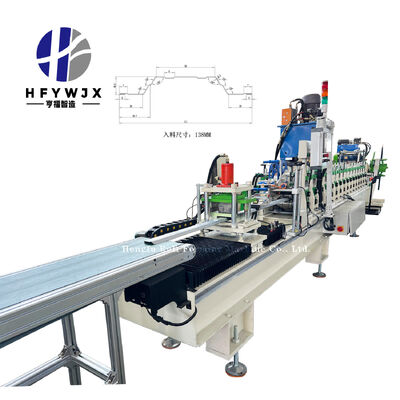

Fully Automatic W Profile Fence Picket Production Plant High Speed Security Palisade Sheet Roll Forming Line

Manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd., this full-automatic fence roll forming machine is a complete integrated production line for making corrugated metal fence panels. The whole workflow covers decoiling, feeding guidance, multi-station roll forming, non-stop flying shear cutting, automatic labeling, conveying and finished-product stacking. It supports manual, automatic and reverse operating modes, and can process galvanized or color-coated steel coils for high-volume continuous production.

Applications of Finished Fence Panels

Metal fence panels produced by this machine are widely used as outdoor protective and decorative profiles.

Boundary enclosures for villas, residential compounds and private courtyards, providing privacy with neat visual appearance
Site perimeter safety isolation for factories, warehouses and logistics parks
Municipal projects, road-side protection and scenic-spot separation
Division of planting and breeding zones in farms and plantations

Thanks to its special multi-angle folded profile design, the finished fence panel gains great structural rigidity and anti-collision performance. Compared with traditional wire mesh fences, these metal panels feature good outdoor rust resistance, simple modular on-site assembly and low later-stage maintenance cost, winning wide recognition from fence manufacturers and engineering contractors.

Machine Advantages

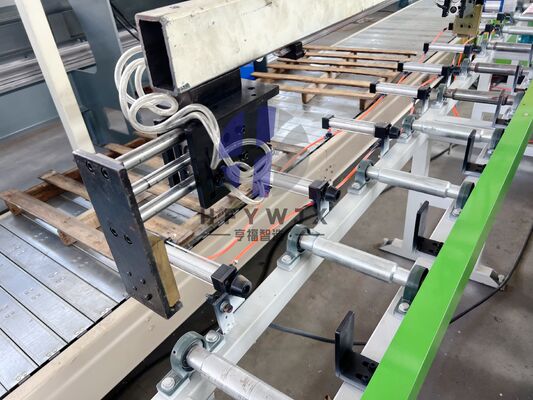

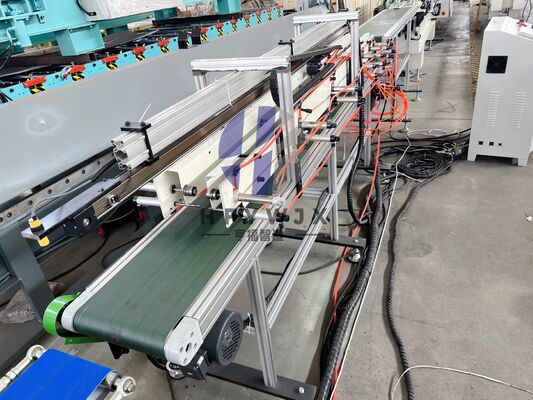

The production line is fully equipped with supporting auxiliary devices, including 1.5-ton double-head hydraulic decoiler, main forming host, non-stop flying shear unit, pneumatic positioning conveyor, dual automatic labelers and 3-meter automatic stacker, greatly lowering manual intervention.

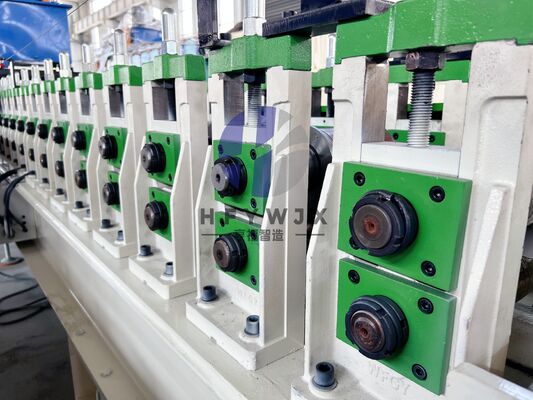

The forming host adopts heavy-duty 350H welded steel frame with anti-rust treatment after welding and thick wall plates. It is fitted with 16 rows of hard-chrome-plated forming rollers and solid 56mm main shafts driven by chain transmission, ensuring stable long-time running without scratching the coating of raw steel strips.

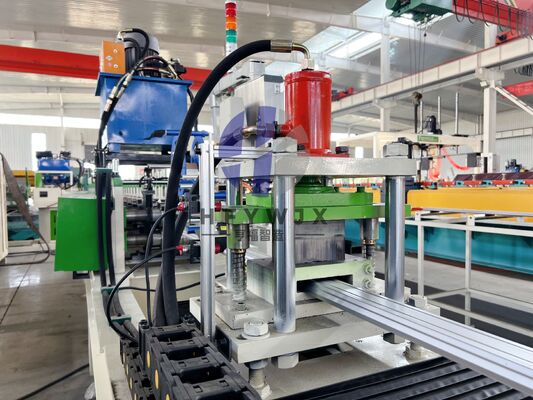

The core non-stop flying shear cuts profiles without halting production, significantly raising output efficiency and avoiding panel deformation. Hardened Cr12 cutting blades deliver clean, burr-free cutting edges with low maintenance frequency. Delta PLC touch-screen control supports Chinese and English operation interfaces. Wireless remote controller and three-color status warning light are provided for convenient operation and real-time fault prompt. Dust-proof organ covers and cable drag chains protect internal moving parts and wiring to extend service life.

Every complete line will pass full-linkage trial running in our factory before delivery. Its modular structure allows easy disassembly for container-based overseas shipment. Whether you are launching new fence-profile production or upgrading your existing workshop equipment, this automated fence roll forming machine is a reliable investment choice.

Technical Specifications

Equipment Name	Fence roll forming machine
Raw Material	Galvanized steel / PPGI color coated steel coil
Processable Thickness	0.3-0.6mm
Feeding Width	138mm
Finished Panel Width	111mm
Production Speed	20-23 m/min
Forming Stations	16 rows rollers
Cutting Mode	Non-stop flying shear
Control System	Delta PLC touch screen, Chinese & English
Length Tolerance	±2mm
Complete Auxiliaries	1.5t decoiler, labeling device, conveyor, automatic stacker
Power Supply	380V 50Hz three-phase
Total Machine Weight	About 8000kg

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
