Heavy Duty Automatic Fence Roll Forming Machine with Non-stop Flying Shear 16 Rows Rollers and 20-25 m/min Production Speed

Detail Information

Product Description

Detail Information

Raw Material:

PPGI Color Coated Steel Coil

Processable Thickness:

0.3‑0.5mm

Feeding Width:

155mm

Finished Effective Width:

126mm

Production Speed:

20‑25 M/min

Forming Stations:

16 Rows Rollers

Cutting Mode:

Non‑stop Flying Shear

Length Tolerance:

±1mm

Power Supply:

380V 50Hz Three‑phase

Total Weight:

2.2 T

Highlight:

Non-stop flying shear Fence Roll Forming Machine

16 rows rollers Steel Security Barrier Profile Former

20-25 m/min Fence Panel Roll Forming Machine

Product Description

Advanced Fence Slat Roll Forming Machine Heavy Duty Automatic Steel Security Barrier Profile Former

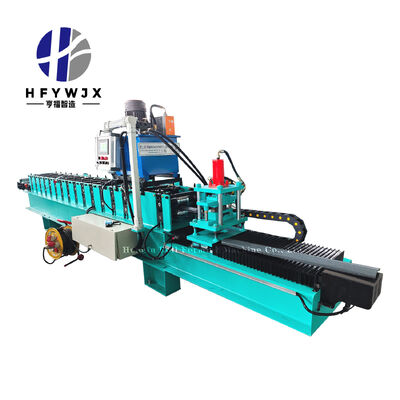

This 126 semi‑arc fence roll forming machine is manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd. It is a standalone automatic machine for producing semi‑arc metal fence panels. The production workflow includes material feeding, guiding, roll forming and online non‑stop flying shear cutting. It processes PPGI color steel coils and supports high‑speed continuous production to meet large‑volume order demands.

Finished Fence Panel Applications

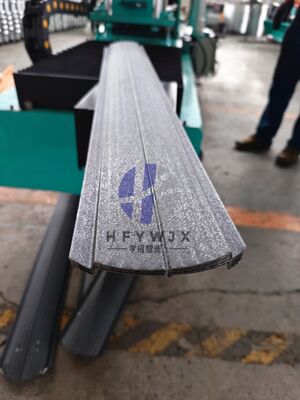

Metal fence panels made by this equipment are popular outdoor enclosure materials that combine decorative semi‑arc shape with solid structural performance.

Widely used for courtyard and villa boundary fencing, offering privacy while improving the visual look of residential properties
Industrial workshops and storage yards use these panels as perimeter safety barriers to separate different working zones
Serve as isolation barriers for tourist attractions, and area dividers for farms and agricultural sites

Benefiting from the special semi‑arc profile design, the panels possess good rigidity and impact resistance. The painted surface provides reliable anti‑rust performance for long‑term outdoor service. Installation on site is quick and straightforward, no complex welding required. It helps lower overall project cost and reduces later maintenance work, making it well‑liked by metal product manufacturers and engineering clients.

Machine Highlights

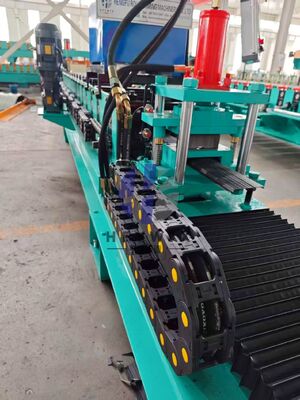

The machine adopts heavy‑duty 350H steel welded frame with anti‑rust treatment after welding and thick carbon‑steel wall boards. A total of 16 groups of chrome‑plated forming rollers and solid main shafts are driven by chain transmission. The unit runs steadily during long‑time continuous production and will not scratch the coating layer of raw steel strips.

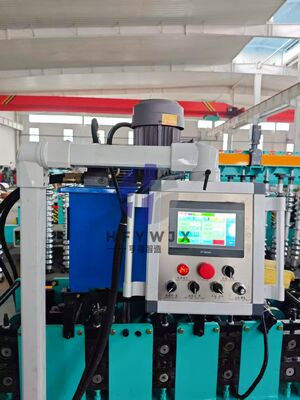

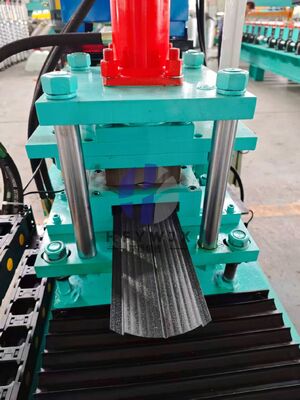

Equipped with non‑stop flying shear cutting system, the machine cuts profiles without stopping the line, boosting production efficiency and avoiding panel distortion. Hardened Cr12 blades deliver clean, burr‑free cutting edges with low maintenance needs. The cantilever split‑type PLC touch screen supports Chinese and English operation languages. Rotary length counter, wireless remote controller and alarm device are equipped for easy operation and fault warning. Every machine undergoes complete factory trial running before shipment.

Compact structure makes container loading easy for overseas shipping. Whether you are expanding your existing product range or entering the metal fence manufacturing sector, this durable fence roll forming machine is a reliable production option for your workshop.

Technical Specifications

Item	Specification
Equipment Name	Fence roll forming machine (126 Semi‑arc)
Raw Material	PPGI color coated steel coil
Processable Thickness	0.3‑0.5mm
Feeding Width	155mm
Finished Effective Width	126mm
Production Speed	20‑25 m/min
Forming Stations	16 rows rollers
Cutting Mode	Non‑stop flying shear
Control System	Cantilever split PLC touch screen, Chinese & English
Length Tolerance	±1mm
Power Supply	380V 50Hz three‑phase
Total Weight	2.2 T

Frequently Asked Questions

What types of profiles can you produce?

Trapezoidal roof panels, corrugated sheets, floor decking, C/Z-purlins, columns/beams, hoarding panels, standing seam roofing, etc. We can also customize products according to customer drawings.

Can machines be customized according to our drawings?

Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.

Can it be integrated into a complete color steel production line?

Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.

Can a laminating machine be added?

Yes, it allows for an integrated production line combining lamination and forming.

Can the voltage be customized to meet our country's standards?

Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
