Heavy Duty Automatic Fence Panel Roll Forming Machine with 16 Groups of Forming Rollers and Non-stop Flying Shear at 20–23m/min

Dongguang Hengfu Roll Forming Machinery Co., Ltd. supplies this full-automatic fence panel roll forming production line, which completes the whole production process from coil feeding, roll forming, flying cutting, automatic labeling, conveying, film wrapping to finished stacking in one continuous line. Operators can switch between manual, automatic and reverse working modes freely, and the line can process galvanized steel and color steel coils to produce standard wave-shaped fence panels at steady high speed.

The metal fence panels manufactured by this line are widely used as outdoor isolation and protective enclosures for multiple industries.

• Residential villas and community courtyards: Decorative boundary fences with anti-rust performance
• Industrial plants, storage warehouses and logistics parks: Safety perimeter guards to divide functional areas
• Municipal roads, railway sides and scenic spots: Anti-collision isolation barriers
• Farms, orchards and breeding bases: Separation of planting and breeding zones

Thanks to its unique multi-folded profile structure, the fence panel owns excellent bearing strength and impact resistance. Compared with traditional wire mesh fences, it features longer service life outdoors, simple on-site assembly and low later maintenance cost, which is well recognized by construction and metal processing customers.

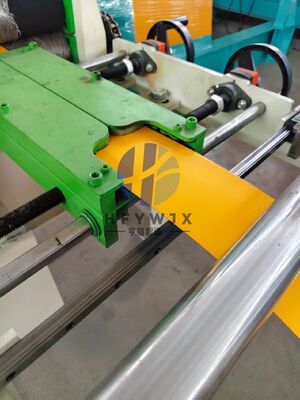

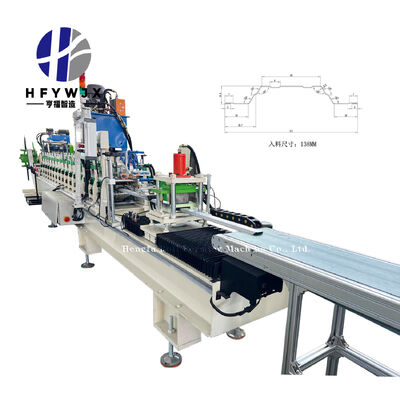

This is a highly automated integrated production line equipped with full supporting auxiliary machines, including 1.5-ton hydraulic double-head decoiler, forming main machine, non-stop flying shear, pneumatic positioning conveyor, two automatic labeling machines, film wrapping machine and automatic stacker. The whole line greatly reduces manual operation and improves overall production efficiency.

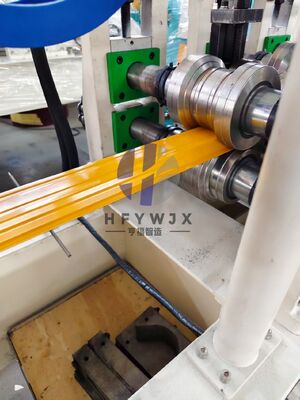

The main forming machine adopts heavy 350H steel welded frame with anti-rust treatment and thickened wall plates, matched with solid thick main shafts. All forming rollers are precision machined and hard chrome plated, ensuring uniform product shape without scratching the coating of raw steel strips. The stable chain transmission system cooperates with Delta PLC touch screen, which supports Chinese and English two operation languages. Wireless remote controller and three-color warning light are equipped for convenient operation and real-time equipment status check.

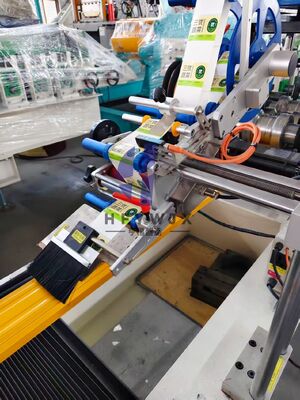

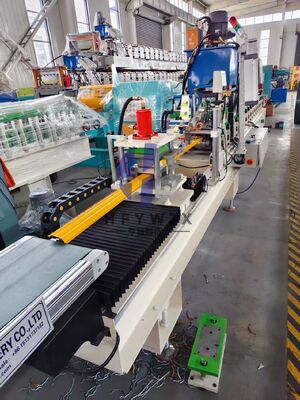

The non-stop flying cutting device is the core highlight of this line. It realizes cutting without stopping production, greatly increasing output and avoiding profile deformation. Hardened Cr12 cutting blades bring smooth burr-free cutting surface and low maintenance frequency. Dust-proof organ covers and cable drag chains protect internal moving parts and circuits to extend machine service life. After cutting, panels automatically finish labeling, scratch-proof wrapping and neat stacking, realizing continuous automatic production.

Every complete production line will finish full linkage trial running in our factory before delivery to guarantee stable coordination of all stations. The modular structure is easy to disassemble and load into containers for overseas transportation. If you want to build a new fence panel processing factory or upgrade your old separate forming equipment, this integrated automatic fence panel production line can effectively improve your production capacity and finished product competitiveness.
