5T Corrugated Roll Forming Machine , Roofing Sheet Making Machine Hydraulic Power

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX18-76-836
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Corrugated Roll Forming Machine Power: 5.5KW+4kw
Size Of Purlin: YX18-76-836 Steel Thickness: 0.3-0.8mm
Decoiler: Manual Station: About 18 Stations
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Size Of Line: About 7.0mx2.1mx1.6m
High Light:

Roof Roll Forming Machine


Roof Sheet Roll Forming Machine

Product Description

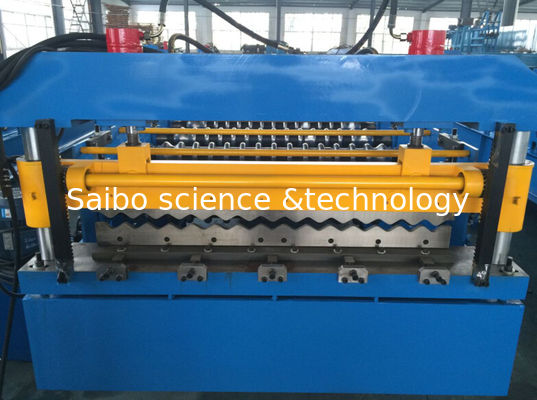

YX18-76-836 Corrugated Roll Forming Machine


1. Specification of the material

1 Suitable Material PI/ PPGI
2 Width of the raw material 1000mm
3 Thickness 0.3-0.8mm


2. Machine Detailed Parameters


Roll Forming Machine



Machine structure


Wall board structure
3 Total power

Motor power-5.5kw

Hydraulic power-4kw


Roller stations


About 18 stations




Drive system


By chain

Diameter of shaft


¢70mm solid shaft



380V 50Hz 3phases (Customized)

Color Of The Machine


Bule and yellow

Deliver time


70 days

Terms Of Payment


30%T/T 70% pay before shipment


3. Profile drawing

5T Corrugated Roll Forming Machine , Roofing Sheet Making Machine Hydraulic Power 0

4. The Chart of Process Flow


Manual Decoiler—Roll Forming—Cutting—Out table

5T Corrugated Roll Forming Machine , Roofing Sheet Making Machine Hydraulic Power 1



5. Specification of Components


(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual


(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering


(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wall board


(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization




Contact Details

Phone Number : +8613921223200

WhatsApp : +8613921996208
