Guide Pillar Metal Sheet Forming Machine , Purlin Roll Forming Machine By Chain

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX124-125
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 50 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 410 sets per year
Detail Information
Product Name: Gutter Roll Forming Machine Shaft: ¢56mm
Steel Thickness: 0.4-0.7mm Power: 5.5KW+3KW
Roller Material: SAE1045 Steel With Chrome Station: 16 Stations
Drive: Single Chain Container Need: 1X40GP
High Light:

Wall Panel Roll Forming Machine


Purlin Roll Forming Machine

Product Description

Guide Pillar Gutter Roll Forming Machine Single Chain Driven Simple Speed YX124 - 125


YX124-125 Gutter Roll Forming Machine



All of our machine profile is customized, below profile is only for your reference.

1. Coil width: 405mm

2. Effective width: According the profile

3. Thickness: 0.4-0.7mm

Guide Pillar Metal Sheet Forming Machine , Purlin Roll Forming Machine By Chain 0


Guide Pillar Metal Sheet Forming Machine , Purlin Roll Forming Machine By Chain 1

Manual de-coiler—Pre-cutting—Feeding—Roll Forming—Cutting—Out table



Item NO




Offered specification

1 Roll Forming Machine



2 Coil width 405mm
3 Rolling Speed 12-15m/min(not include cutting time)
4 Rolling Thickness 0.4-0.7mm Color steel, G550
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 3T hydraulic decoiler
7 Pre-cutting By manual
8 Roller Stations About 16 stations (according the final design)
9 Roller Material 45# forge steel, coated with chrome
10 Shaft Material and DIA ¢56mm, material is 45# forge steel

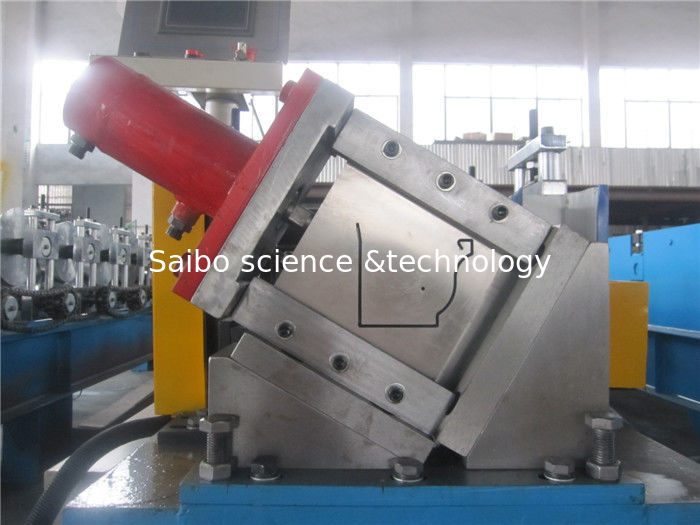

11 Post cutting Hydraulic cutting after forming
12 Maim Motor Power 5.5kw
13 Hydraulic Station Power 3kw
14 Hydraulic Pressure 10-12Mpa adjustable
15 Material Of Cutting Cr12Mov quenching 58-62℃
16 Structure Of The Stations Guide pillar
17 Tolerance 3m+-1.5mm
18 Electric Source

380V, 50HZ,3 phase

According to customer’s require


19 Way Of Drive By chain
20 Color Of The Machine Yellow and blue
21 Size of the machine L*W*H about 7.2m*1m*1.2m
22 Container Need 1x40 feet

Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation
