| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | YX30-155-900 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 70 working days after received deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 sets per year |
| Product Name: | Tile Roll Forming Machine | Power: | 5.5KW+5.5kw |
|---|---|---|---|
| Decoiler: | Manual Or Hydraulic | Station: | 16 Stations |
| Steel Thickness: | 0.4-0.6mm | Roller Material: | ASTM1045 Chrome Plated Surface With Chrome |
| Drive: | By Chain | Productivity: | 6m/min |
| Highlight: | Roofing Tile Forming Machine,Cold Roll Forming Machine |
||
1. Specification of the material
| 1 | Suitable Material | Colored Steel plate, Galvanized steel |
| 2 | Width of the raw material | 1250mm |
| 3 | Thickness | 0.4-0.6mm |
2. Machine Detailed Parameters
| 1 | Roll Forming Machine | YX30-155-900
|
| 2 | Machine structure
|
Guide structure
|
| 3 | Total power |
Motor power-5.5kw Hydraulic power-5.5kw |
| 4 |
Roller stations
|
About 19 stations |
| 5 |
Productivity
|
6m/min |
| 6 |
Drive system
|
By chain, 1.0 inch |
| 7 |
Diameter of shaft
|
￠70mm solid shaft |
| 8 | Voltage
|
380v 50Hz 3phase |
| 9 |
Color Of The Machine
|
Yellow and blue |
| 10 |
Container need
|
40GP container |
| 11 |
Deliver Time
|
70 days |
| 12 |
Terms Of Payment
|
30%T/T 70% pay before shipment |
3. Profile drawing
4. The Chart of Process Flow
5. Specification of Components
(1) 5T Hydraulic Un-coiler
(2) Main Roll Forming Machine

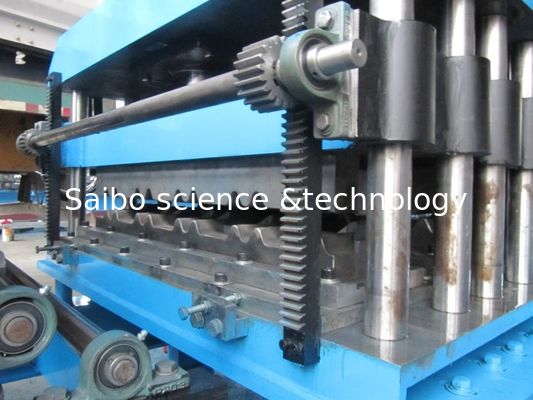

(3)Pressing System:
(4) Hydraulic cutting system
(5) Computer Control Cabinet
