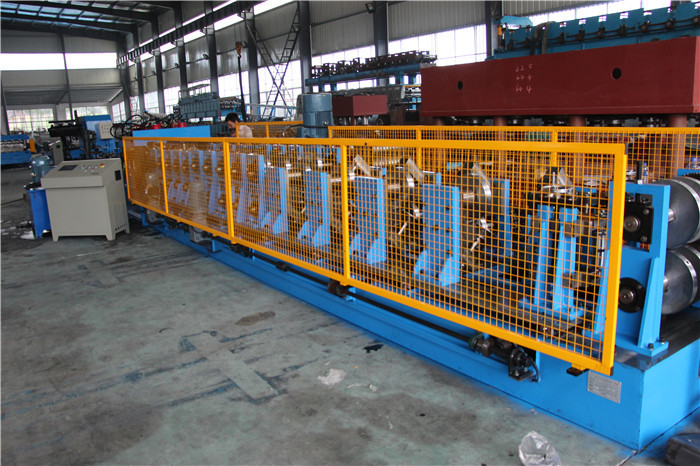

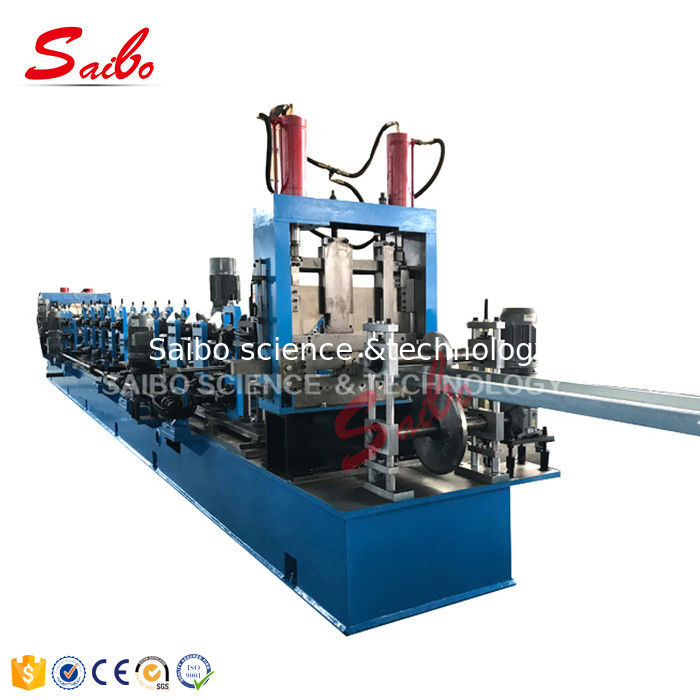

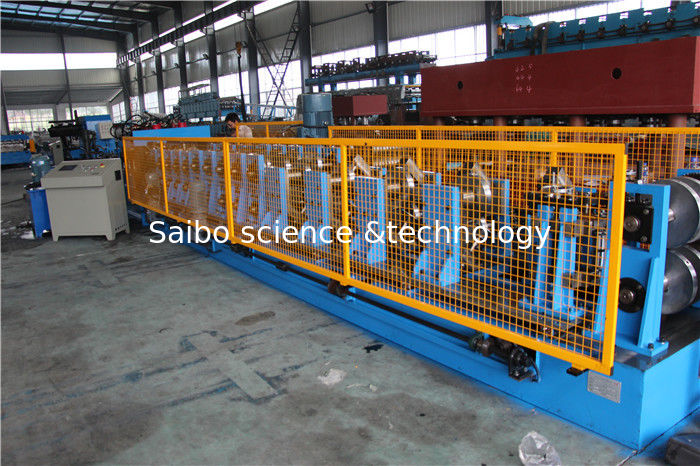

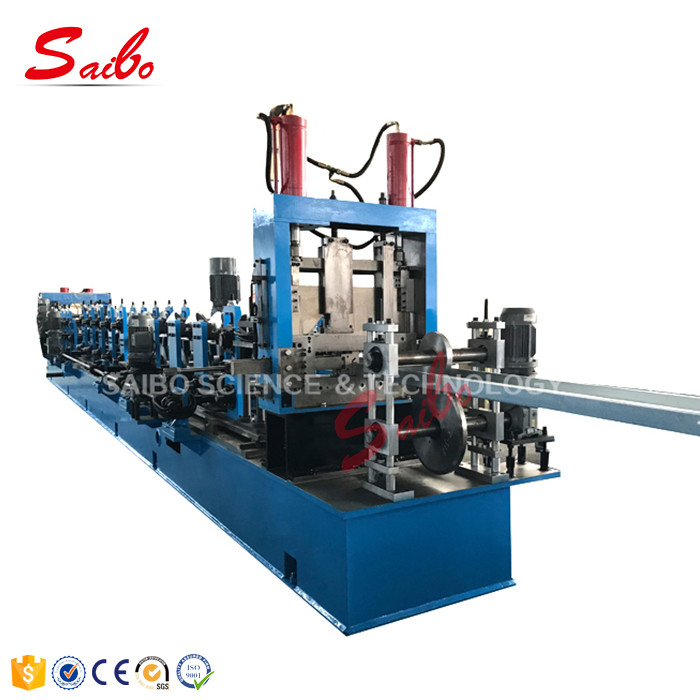

Manual Decoiler Roll Forming Machine For Purlin C Z Type One Side Chain

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: 100-400
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Detail Information
Product Name: C/Z Purlin Roll Forming Machine Power: 18.5KW+7.5KW
Size Of Purlin: 100-400 Steel Thickness: 3.0mm
Decoiler: Manual Station: 17 Stations
Roller Material: Gcr15 With Chrome Treatment Drive: One Side Of Chain
High Light:

Purlin Roll Forming Machine

,

Corrugated Iron Sheet Making Machine


Product Description

main speficication:

  • Steel thickness: 1,5 mm to 3,0 mm;
  • Profile height: 100 mm to 400 mm;
  • Flange width:  40 mm to 80 mm;
  • Flange height: 12 mm to 20 mm;





2. The Chart of Process Flow

Manual Decoiler Roll Forming Machine For Purlin C Z Type One Side Chain 0



Specification

No   Technical Specification & Remark
1

5T manual decoiler





  • Width of feeding: 500mm
  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Color: blue
2

Leveling part



  • Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
  • Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
  • Flattener roller: material is SAE 1045, hardening and tempering
3

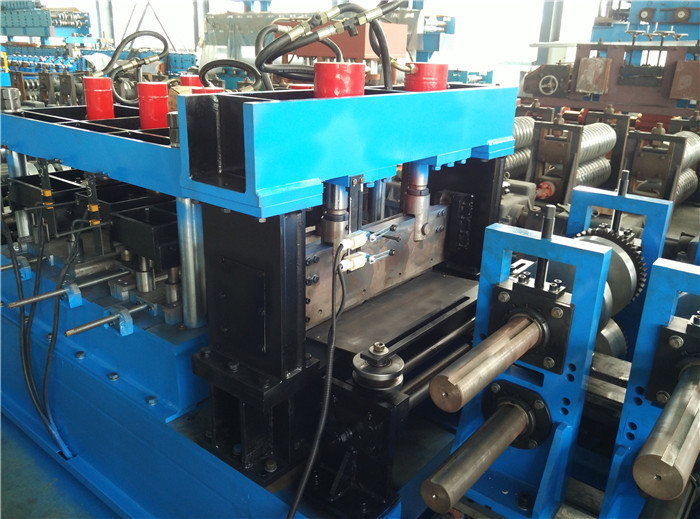

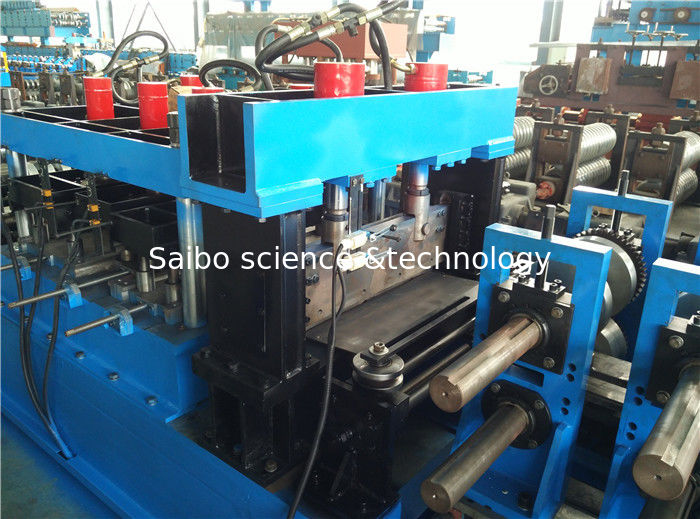

Punching and pre-cutting system



  • Base on customer provide punching drawing, this machine need adopt 1 unit hydraulic punching system before roll forming.
  • Cutting will be flat cutting so no need to change the cutting blade when make different sizes.
  • Hydraulic power: 5.5kw

4

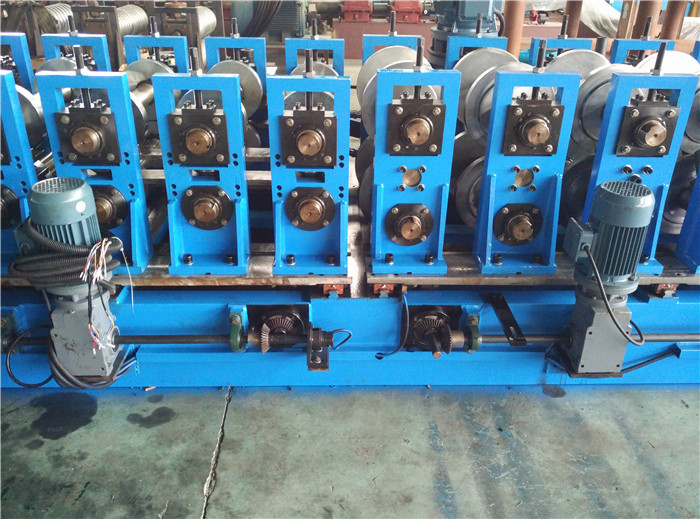

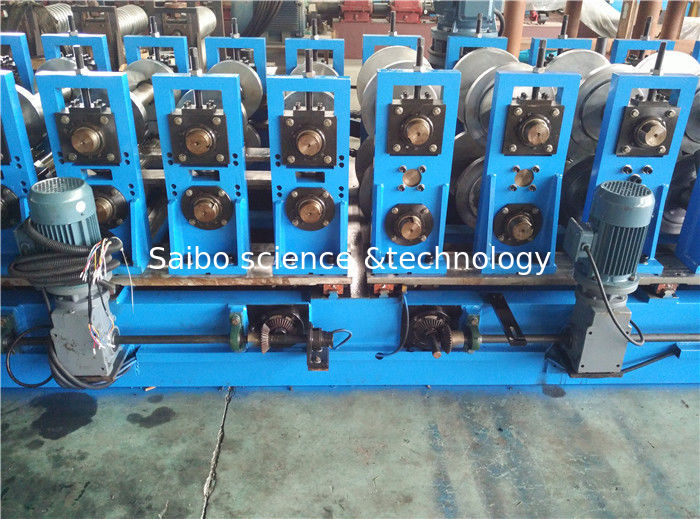

Main Roll Forming Machine





  • Thickness range: 3.0mm
  • Main motor power:15.5kw
  • Adjust flange and width: by manual
  • Roll station: 17 stations
  • Shaft diameter: ¢76mm material: SAE1045 with quenching and tempering
  • One side chain driving



5

Correction adjust system



  • Correction of the product sheet to be straight.
6

Hydraulic System



  • Hydraulic power: 5.5kw
  • Working pressure: 20Mpa adjustable
  • Solenoid valve: 2 groups
  • Hydraulic oil: 46# hydraulic oil
7

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC brand: Panasonic
8

Out table



  • Support the product come out from the machine
  • out table length: 2m
  • Quantity: 3 units



4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
