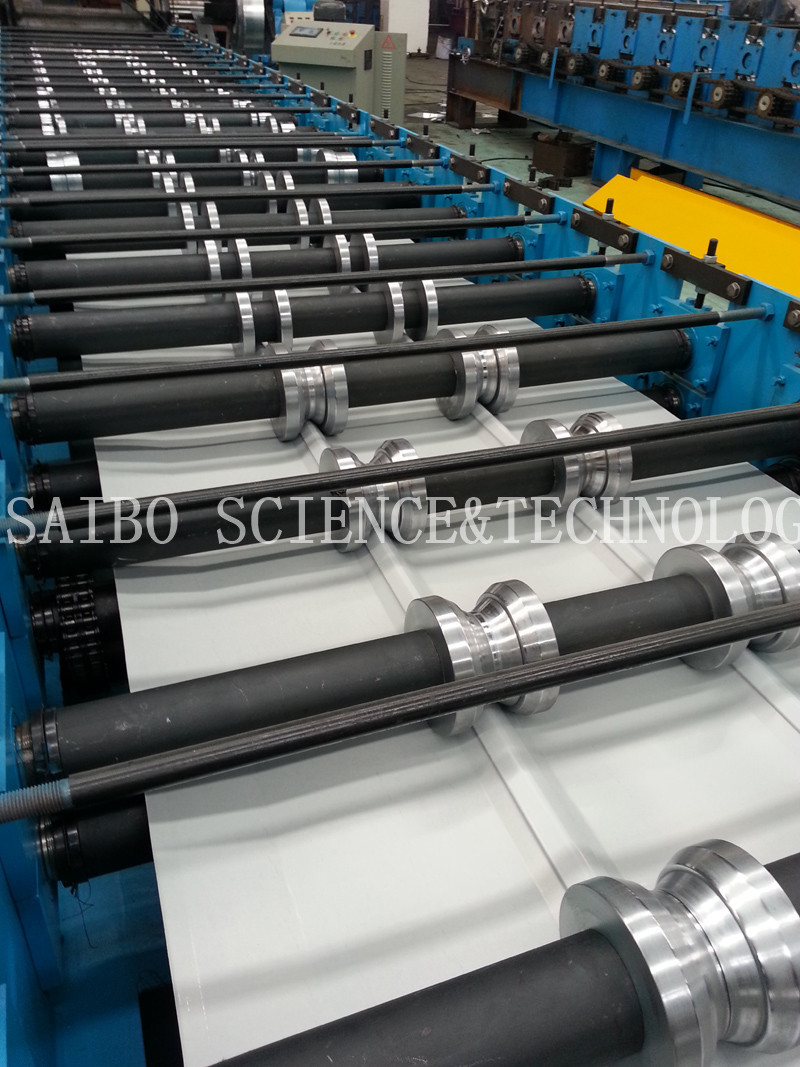

Chain Drive Roofing Roll Forming Machine With 5T Manual Decoiler

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: LYSAGHT KLIP-LOK 406
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: LYSAGHT KLIP-LOK 406 Roll Forming Machine Power: 7.5KW+5.5kw
Steel Thickness: 0.3-0.8mm Size Of Purlin: LYSAGHT KLIP-LOK 406
Decoiler: 45# Forge Steel, Surface With Chrome Station: About 22 Stations
Formimg Speed: 0-15m/min Color: Bule And Yellow
High Light:

Chain Drive Roofing Forming Machine


5T Manual Decoiler roll Forming Machine

Product Description

LYSAGHT KLIP-LOK 406 Roll Forming Machine


LYSAGHT KLIP-LOK®406 is a strong, durable, versatile, long spanning, concealed-fix roof and wall cladding with exceptional
waterproofing characteristics. Smart fluted pans and a lock-action rib design enables use on low pitched roofs. KLIP-LOK 406 is available in long lengths, therefore on most jobs you can have one sheet from ridge to gutter without end laps. Long, straight lengths of KLIP-LOK 406 can be laid in place and easily aligned because fixing with our clips is simple and fast. The smaller number of clips for a given area provides extra economy.

 1. Specification of the materi

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material According to final profile
3 Thickness 0.3-0.8mm

2. Machine Detailed Parameters


Roll Forming Machine


Machine structure

Wall board structure
3 Total power

Motor power-7.5kw
Hydraulic power-5.5kw


Roller stations

About 22 stations



Drive system

By chain,1.0 inch

Diameter of shaft

¢75mm solid shaft


380V 50Hz 3phases (Customized)

Color Of The Machine

Bule and yellow

Deliver time

70 days

Terms Of Payment

30%T/T 70% pay before shipment

3. Profile drawing
Chain Drive Roofing Roll Forming Machine With 5T Manual Decoiler 0
4. The Chart of Process Flow
Hydraulic Uncoiler—Roll Forming—Cutting—Out table
Chain Drive Roofing Roll Forming Machine With 5T Manual Decoiler 1
5. Specification of Components
(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Working speed: 0--20m/min adjustable
  • Main motor power: 5.5KW AC motor
  • Hydraulic power: 4kw

(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall board

(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

Material specifications

Next generation ZINCALUME® aluminium/zinc/ magnesium alloy coated steel complies with AS1397:2011 G550,
AM125 (550 MPa minimum yield stress, 125 g/m2 minimum coating mass)
Colorbond® is prepainted steel for exterior roofing and walling. It is the most widely used. The painting complies with AS/NZS 2728:2013 and the steel base is an aluminium/zinc alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)
Colorbond® METALLIC is prepainted steel for superior aesthetic qualities displaying a metallic sheen.
Colorbond® ULTRA is prepainted steel for severe coastal or industrial environments (generally within about 100-200 metres of the source). The painting complies with AS/NZS 2728:2013 and the steel base is an aluminium/ zinc alloy-coated steel complying with AS 1397:2011. Minimum coating mass is AM150 (150g/m2)
Colorbond® Stainless is a pre-painted steel and is used for severe and coastal environments. The painting complies with AS/NZS 2728:2013 and the steel base is a stainless steel complying with AISI/ASTM Type 430; UNS No. S43000.
The base metal thickness is 0.48mm
